子板 影像显示类 800 万像素相机与 HDMI 输出套件 (FMC介面)






D8M-FMC

800 万像素相机与 HDMI 输出套件 (FMC介面)

Specifications

  • Package Interface: FMC with 1.8/2.5/3.0/3.3V I/O standard
  • MIPI Camera Module:
    • Chip P/N: OV8865
    • Color Filter Arrangement: Bayer Pattern
    • View Angel: 70 degrees
    • Lens Type: 1/3.2 inch
    • Pixels: 3264x2448 (8 megapixels)
    • Frame Rate: Maximal 60 frame per second at 1408 x 792 resolution and 30 frame per second at 3268 x 2448 resolution
    • Support Focus Control
    • Interface: MIPI
  • MIPI Decoder:
    • Chip P/N: TC358748XBG
    • MIPI CSI-2 Compliant
    • MIPI to Parallel Port Converter
    • Supports up to 4 data lanes
  • HDMI TX v1.4
  • Package Size: 73.4x60.0 mm

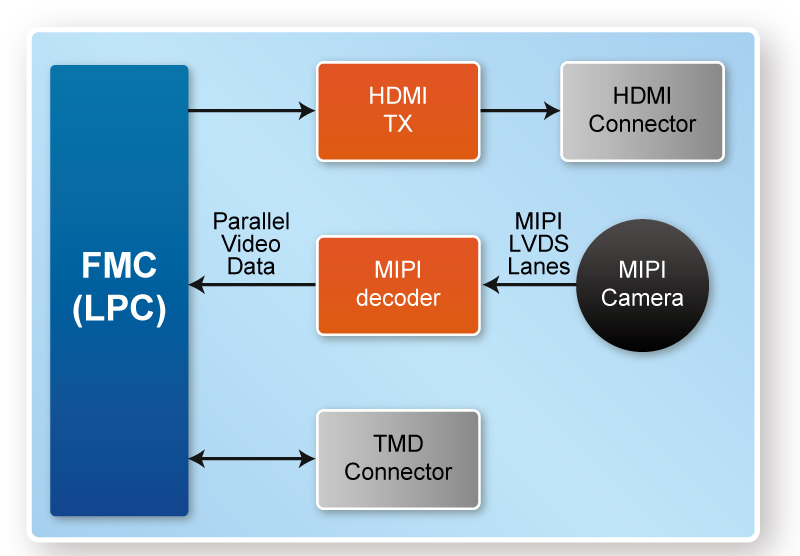

Block Diagram

The functional block diagram of D8M-FMC is shown above. MIPI Camera Module sends the video captured to MIPI Decoder via MIPI link. MIPI Decoder converts MIPI Video Data to parallel data and output to the main board through a FMC connector. The parameters of the MIPI Camera Module and MIPI Decoder can be configured by FPGA via I2C interface. For instance, number of output pixels from MIPI Camera Modules, RGB gain, position of focus, PLL of MIPI Decoder, and parameters of Video MIPI Decoder etc.

The D8M-FMC also includes a HDMI-TX for deveopers to display the processed video image on a monitor with HDMI input when the FPGA main board has no display capabilities.

ctivity

The D8M-FMC Package is designed for FPGA main boards with FMC expansion header.

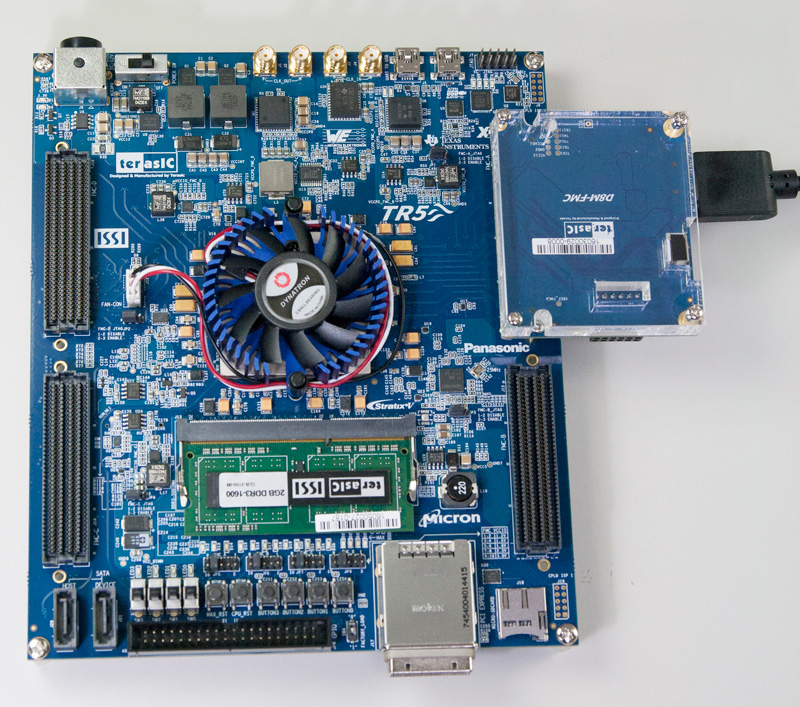

  • Connect D8M-FMC with Terasic TR5

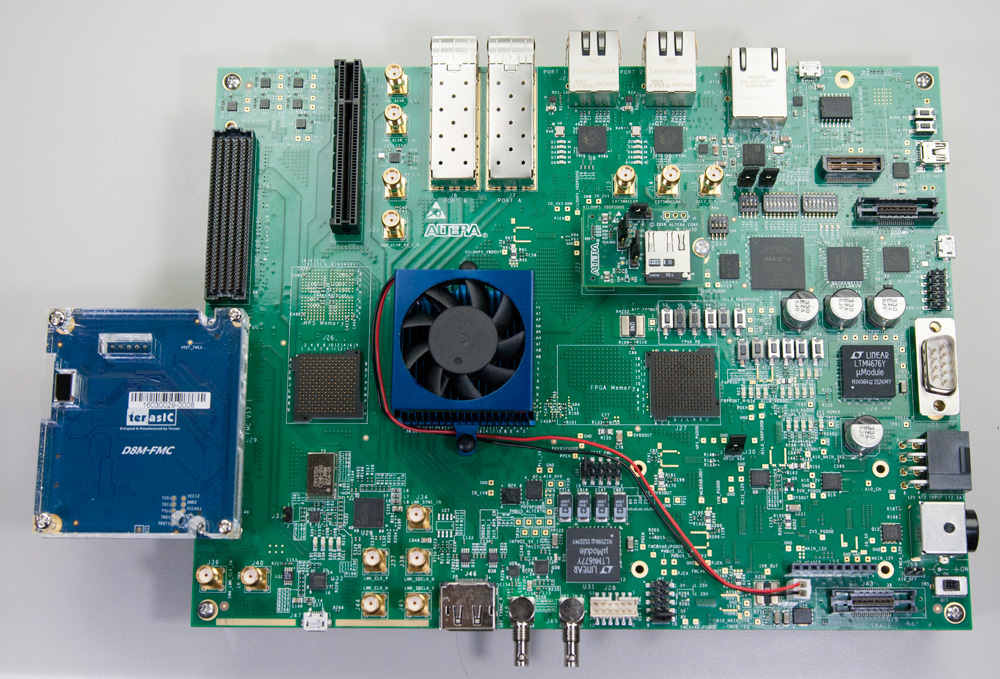

  • Connect D8M-FMC with Altera A10SoC FPGA Board

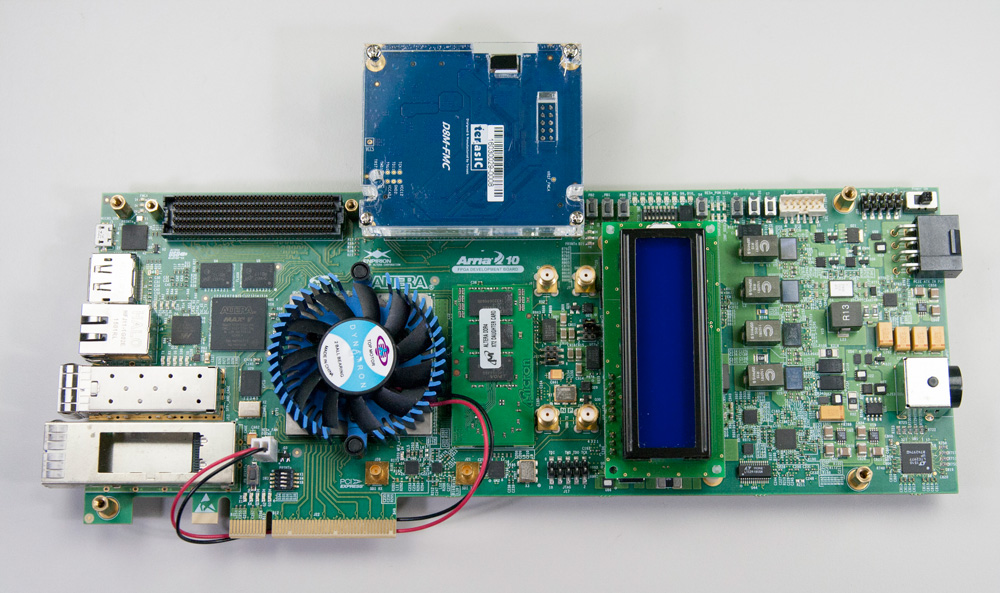

  • Connect D8M-FMC with Altera A10GFP Board
