Key Features
- Features the Agilex 5 FPGA and SoC E-Series (A5ED065BB32AE4S)
- Includes modular and carrier boards with a wide range of connectivity and expansion options
- Supports high-speed interfaces including PCIe Gen4 x4, SFP+ (10G), HDMI 2.0, and DisplayPort 2.0
- Features three 8 GB DDR4 memory banks for FPGA fabric and HPS, with ECC support
- Offers dual-core Arm Cortex-A76 and dual-core Cortex-A55 processors for embedded processing
- Provides FMC+ expansion slot and MIPI camera connectors for vision applications
- Integrated Board Test System (BTS) GUI for clock, power, memory, and transceiver testing and built-in FPGA Download Cable II and JTAG header for programming and debugging
- Includes programmable clock generators and power monitoring via MAX 10 BMC
- Ships with preloaded GHRD image and SD card for HPS boot, with restore tools included
- Designed for bench-top or PCIe add-in card use with active heatsink cooling
Offering Brief
| Device Family | Agilex™ 5 FPGA E-Series |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | A5ED065BB32AE4S |
| Form Factor | Tabletop; PCIe |
| Power | 12V DC input via ATX connector; 240W power adapter included |
| Interfaces | RJ45 2.5G Ethernet PCIe Gen4 x4 SFP+ 10G USB 3.1 UART interface DisplayPort 2.0 (Rx/Tx) HDMI 2.0 (Rx/Tx) Tri-level sync via SMA 1PPS in/out via SMA GPIO headers I2C and SPI interfaces JTAG via USB or external header |
| Memory | 8GB 2133MHz DDR4 x32 (no ECC); 8GB 2133MHz DDR4 x32 + ECC; 8GB 2133MHz DDR4 x32 + ECC (HPS); QSPI flash for AS x4 configuration |
| Connectors | FMC connector; PCIe Gen4 x16 edge connector; Micro USB connector; Micro SD card slot; HDMI connectors; MIPI0 and MIPI1 connectors; HVIO headers (2x20 and 2x4); SDI RX and TX connectors; USB Type-C connector; HPS Mictor; I2C headers |
| Switches & LEDs | MSEL, GPIO, and User DIP switches; Push buttons; LEDs: CONF_DONE, HEARTBEAT, STATUS; Red and green user LEDs; Switches for JTAG source selection; Switches for PHY and MIPI control; Switches for FMC JTAG bypass; Switches for PCIe clock selection; Switches for configuration mode; Fan PWM and tachometer control |

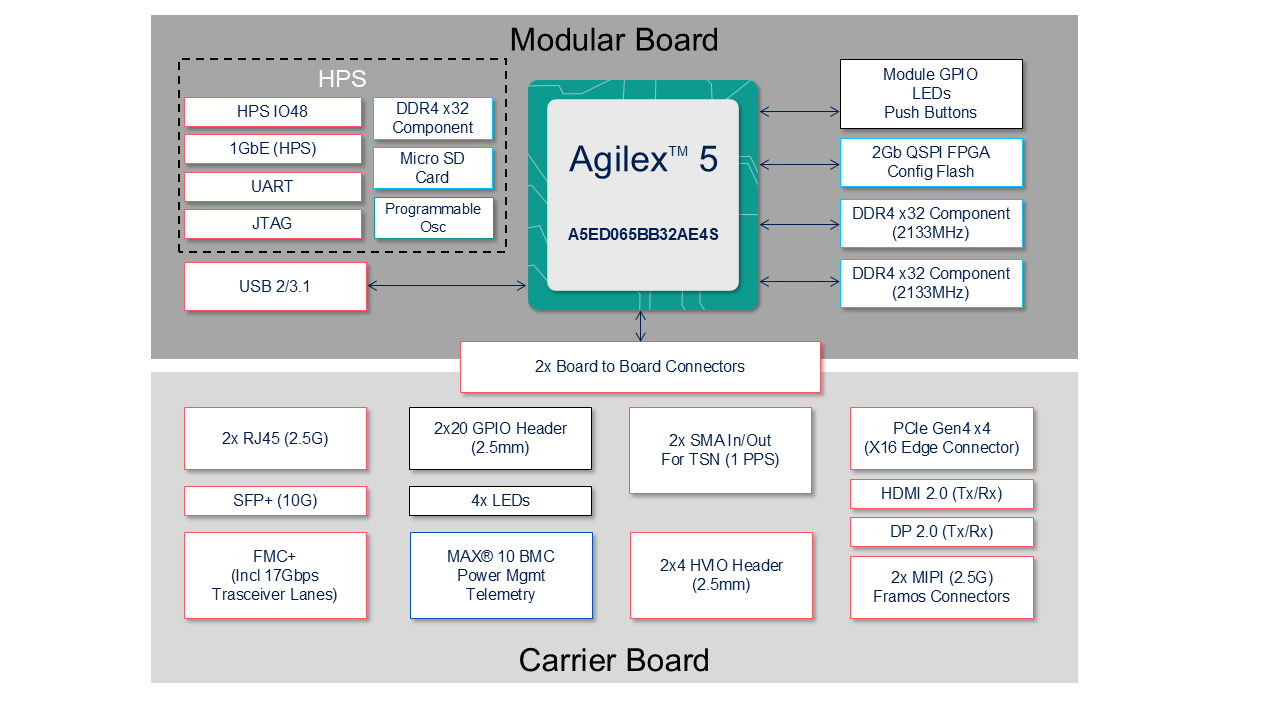

Block Diagram
