Comet A13 SOM and Evaluation Kit

Comet A13 SOM and Evaluation Kit

Comet A13 SOM Module



System:
  • FPGA: A5ED013BB32AE4SCS (Agilex 5 E-Series Device Group B)
  • Module Size : 60mm x 55mm
  • 191 HVIO  (3.3V x16, 1.8/2.5/3.3V x175)
  • 72 HSIO (up to 12 LVDS RX and 24 LVDS TX/RX)
  • 48 HPS IO
  • 4 Transceivers
  • Interface: Two SEAM8 Connectors (6x50 pin)



FPGA Side:
  • Fixed 50 /100MHz Clock
  • LPDDR4-B: 1GB DDR4 with 16-bit data bus (no ECC)
  • 191-pin HVIO and 72-pin HSIO connected to SEAM8 connector
  • 4 transceiver and 1 reference clock connected to SEAM8 connectors



HPS side:
  • LPDDR4-A: 4GB DDR4 with 32-bit data bus (no ECC). Shared with FPGA.
  • 48 HPS IO connected to SEAM8 connector
  • 8GB eMMC (Expandable) + eMMC SEL Switch



Block Diagram:



Cooling Solution:

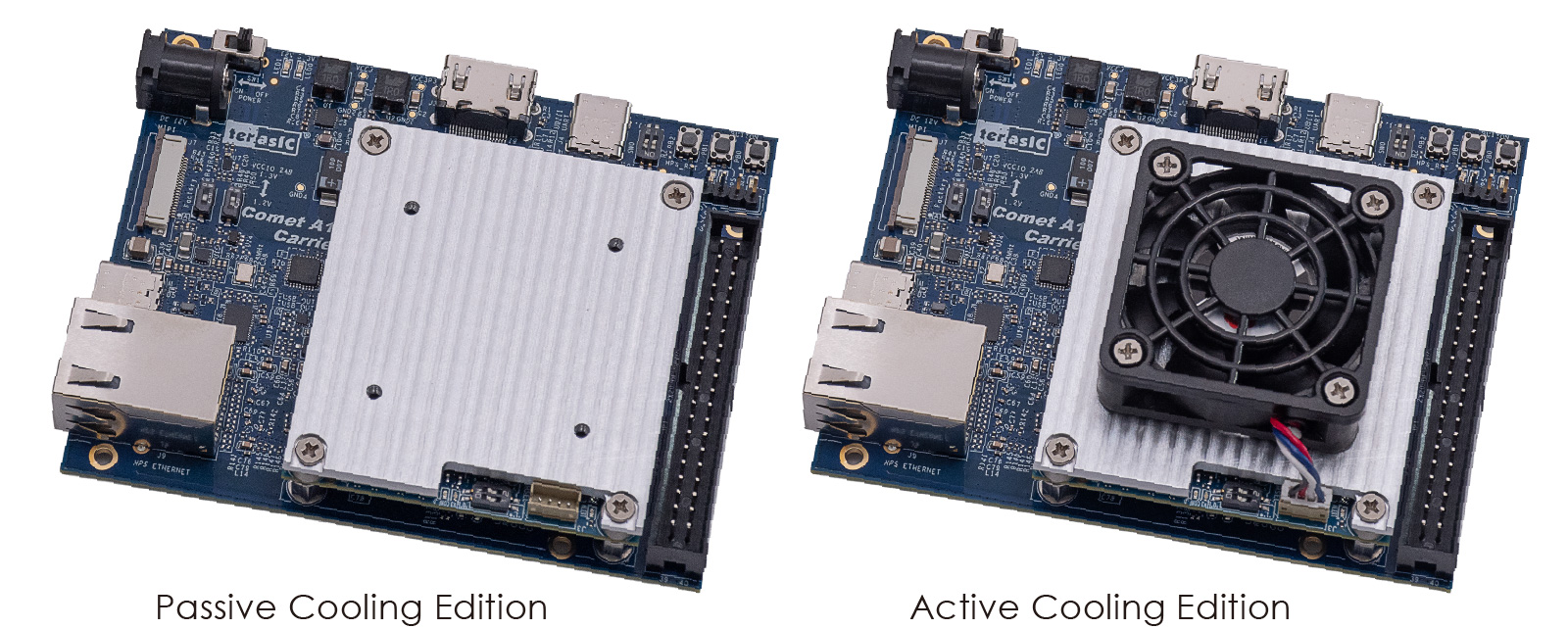

The Comet A13 SOM is equipped by default with an aluminum heat spreader that transfers heat from the primary heat sources on the module to a large surface area for efficient dissipation. If the expected power consumption of the Comet A13 SOM exceeds 7W, or if the user’s FPGA application utilizes more than 85% of logic elements (LEs) with a clock frequency above 200 MHz, the use of an fan is recommended to ensure the FPGA operates within safe temperature limits.



Evaluation kit

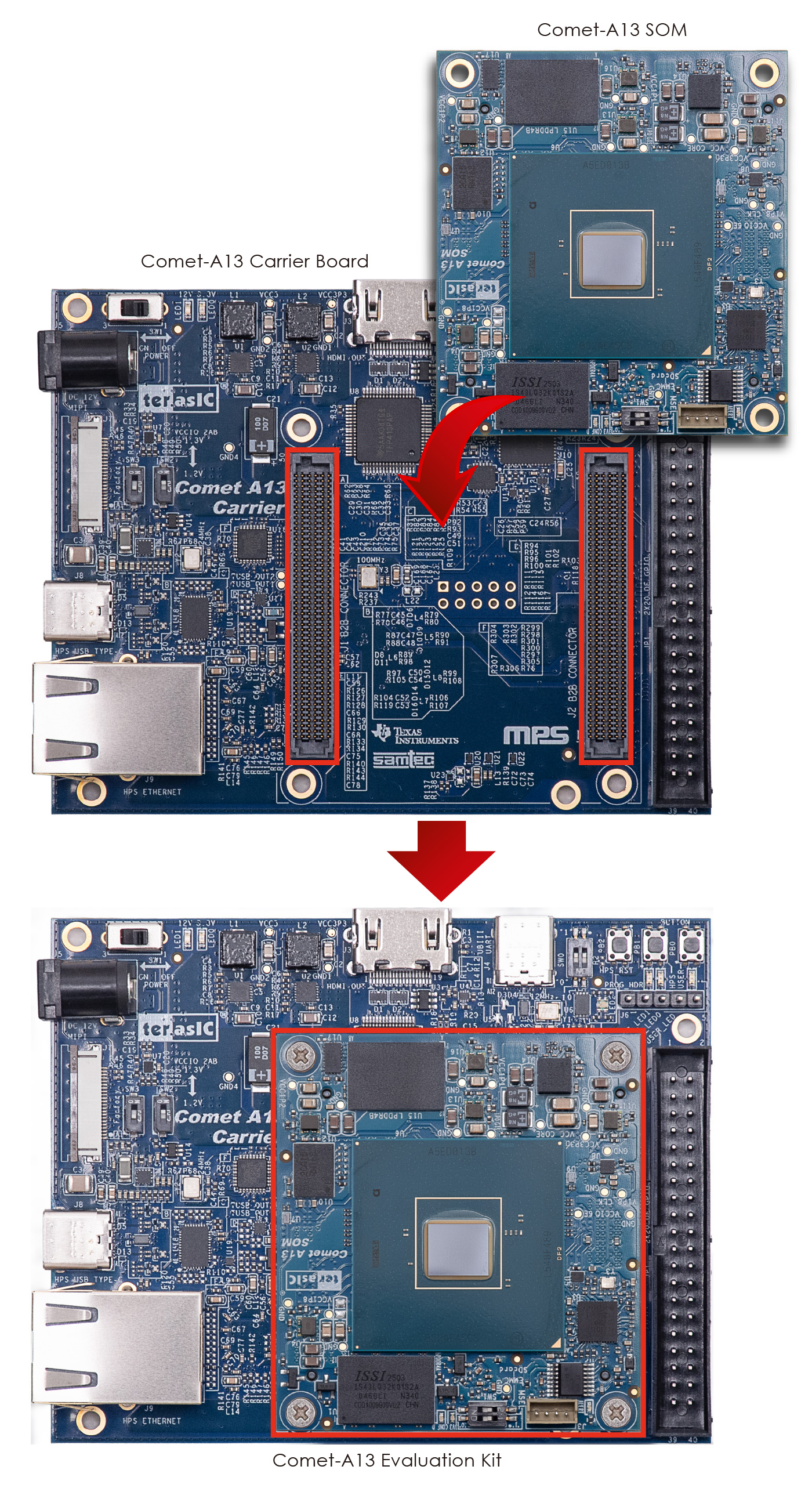

The Evaluation kit is composed of a Module and Carrier.



Carrier Board features include:



System:
  • Power Input: 12V DC Jack
  • Interface: Two SEAF8 Connectors (6x50 pin)



FPGA
  • LED x1, SWITCH x2, Button x1
  • HDMI Out (1080P)
  • 22-pin Connector (4 Data Lane) for CSI2 Camera
  • One 3.3V 2x20 DE-GPIO Header



HPS
  • MicroSD Socket
  • UART Port (Type-C Connector for Linux Terminal)
  • Gigabit Ethernet PHY + RJ45
  • USB 3.1 Gen1 (5Gbps; use 1 transceiver) with USB Type-C connector
  • HPS Cold Reset Button
  • LED x2,Button x1

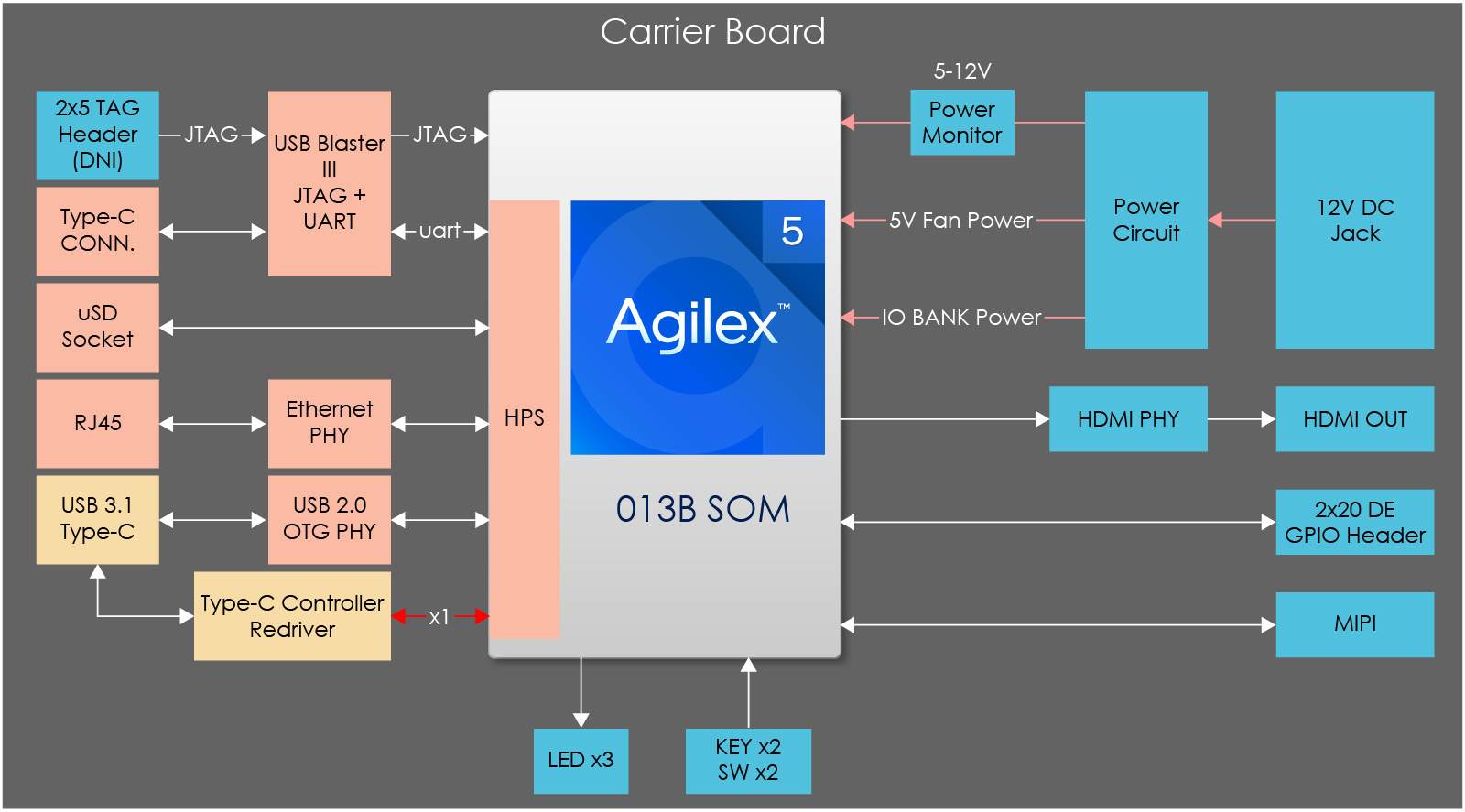

Block Diagram:

Overview
Layout
