All FPGA Main Boards Stratix V Altera DSP Development Kit, Stratix V Edition






S5DSP

Altera DSP Development Kit, Stratix V Edition

Featured device:

  • Stratix V GS FPGA: 5SGSMD5K2F40C2N

Configuration, status, and setup elements

  • JTAG
  • On-board USB-BlasterTM II cable
  • Fast passive parallel (FPP) configuration via MAX® V device and flash memory
  • One reset config push button
  • One CPU reset push button
  • Two configuration push buttons

Clocks

  • 50-MHz and 125-MHz programmable oscillators
  • SMA input (LVPECL)

General user input and output

  • 10/100/1000Mbps Ethernet PHY (SGMII) with RJ-45 (copper) connector
  • 16x2 character LCD
  • One 8-position dual in-line package (DIP) switch
  • Sixteen user LEDs
  • Three user push buttons

Memory devices

  • DDR3 SDRAM (1,152 MB, x72-bit wide)
  • QDR II+ SRAM (4.5 MB, 2-Mb x18-bit wide)
    • Footprint compatible to QDR II 4-Mb x18-bit wide
  • RLDRAM II (72-Mbyte CIO RLDRAM II with an 18-bit data bus)

Component and interfaces

  • PCIe x8 edge connector
  • Two HSMC connectors
  • SMB for serial digital interface (SDI) input and output
  • QSFP optical cage
  • 10/100/1000Mbps Ethernet PHY (SGMII) with RJ-45 (copper) connector

Power

  • Laptop DC input
  • PCIe edge connector
  • Nios® II processor web server and remote system update

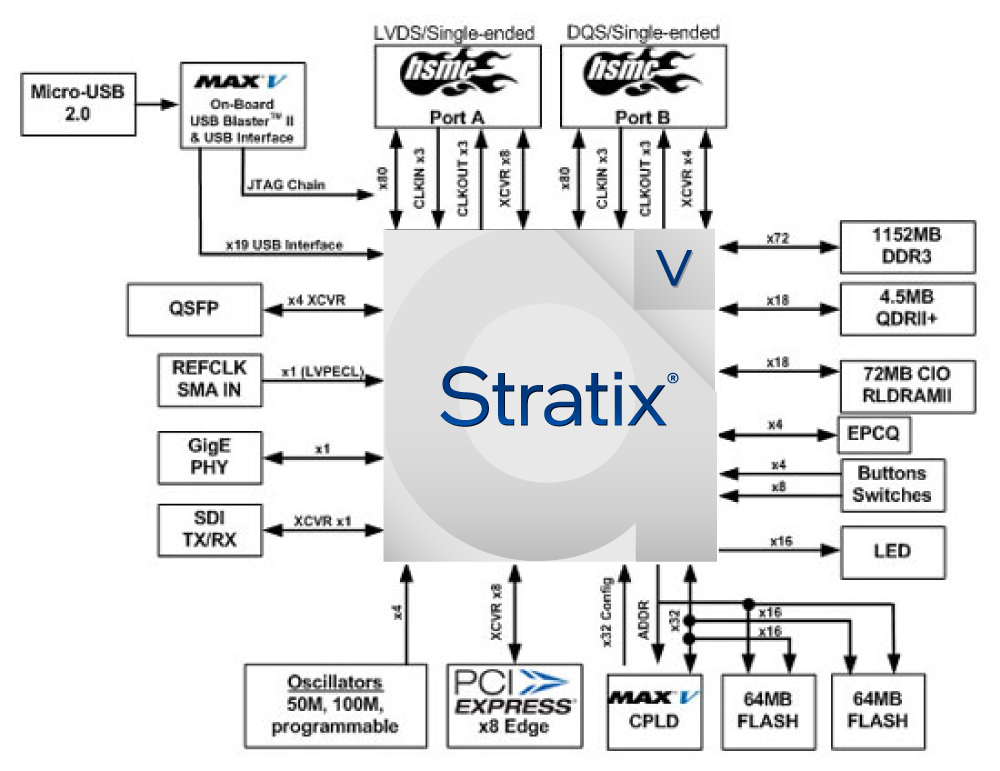

Stratix V GX FPGA Development Board Block Diagram

block diagram
