停產產品 母板 VEEK-MT-C5SoC






VEEK-MT-C5SoC

VEEK-MT-C5SoC

Download

Altera C5SoC User Manual Download: Here

Linux BSP(Board Support Package)

標題 版本 檔案大小(KB) 新增日期 下載
Readme.txt - 1KB 2014-02-27
Quartus GHRD (Golden Hardware Reference Design) - 4.85MB 2014-03-07
LXDE Desktop Image File - 1.49GB 2014-03-07
Linux Console Image File (with Framebuffer) - 138MB 2014-03-07

Documents

標題版本檔案大小(KB)新增日期下載
VEEK-MT-C5SOC User manual 0.01 3306 2013-11-02

CD-ROM

標題版本檔案大小(KB)新增日期下載
VEEK-MT-C5SOC CD-ROM v.1.0.1   2015-08-17
Altera C5SoC CD-ROM   2013-07-15

友晶創新所發表之範例程式碼,基於免費分享之原則,不提供任何形式的講解或修改。如需進一步範例程式碼講解或修改的協助,我們將轉至「設計服務部門」評估。
本授權條款允許使用者於使用所有友晶及 Altera 開發板時,得以重製、散布、傳輸以及修改友晶創新提供的原始碼,但不得為商業目的之使用。使用時必須於引用處表彰友晶創新 (Terasic Inc.) 之商號。



VEEK-MT C5SoC Demonstations

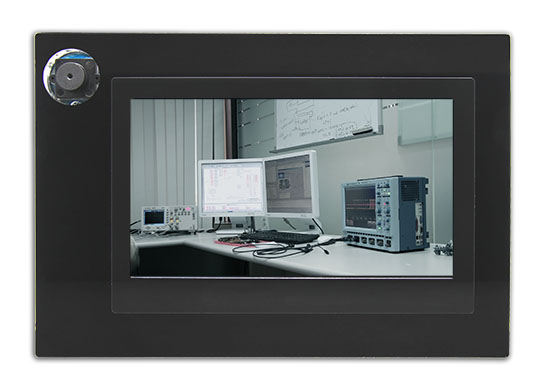

VEEK-MT-C5SoC Camera Demonstration

This demonstration shows a digital camera reference design using the 5 megapixel CMOS sensor and 7-inch LCD modules on the VEEK-MT.
The CMOS sensor module sends the raw image data to FPGA on the C5SoC board, the FPGA on the board handles image processing part and converts the data to RGB format to display on the LCD module.

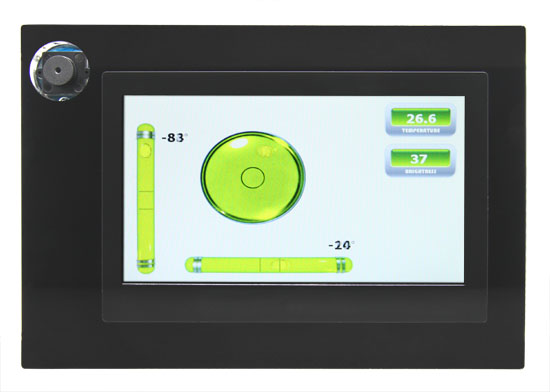

VEEK-MT-C5SoC Sensing Demonstration

This design utilizes an embedded NIOS II cpu to communicate with the on-board digital accelerometer as well as the ambient light sensor. The accelerometer outputs as a level display, and the readings for the ambient light are displayed in the upper left-hand corner.

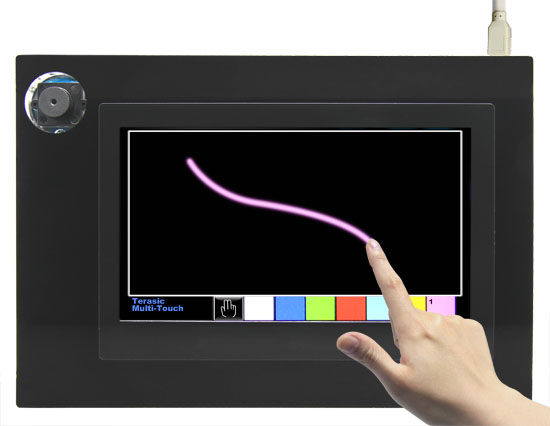

VEEK-MT-C5SoC Painter Demonstration

This reference design showcases VEEK-MT's sensitive capacitive touch-screen capabilities. Supporting single-paint coordinates and multi-touch gestures, this demonstration allows users to paint with one finger. Gestures that are drawn on the canvas are displayed in the gesture indicator box left of the color palette.



元件配置 包裝內容
