HDMI-HSTC 子板(停產)

HDMI daughter board is a HDMI transmitter/receiver board with HSTC (High Speed Terasic Connector) interface. The board contains the following richful features:

  • One HSTC interface for connection purpose
  • One HDMI transmitter with single transmitting port
  • One HDMI receiver with duel receiving ports
  • Two 2K EEPROM for storing EDID of two receiver ports separately
  • Powered from 3.3V pins of HTST connector

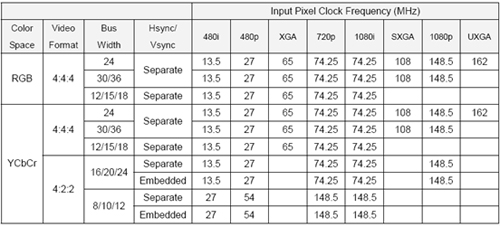

The transmitter is compliant with HDMI 1.3a, HDCP 1.2, and DVI 1.0 specifications. It supports the following input video formats:

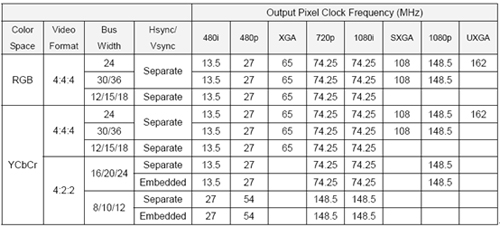

The receiver is compliant with HDMI 1.3a, HDCP 1.2, and DVI 1.0 specifications. It supports the following output video formats:

Connectivity

HDMI board connection to the Altera DE3 -Stratix III Development Board

Block Diagram of Board Functionality

Associated Block Diagram of Transmitter

Associated Block Diagram of Receiver
