停產產品 子板 VEEK-MT-SoCKit Upgrade Kit






SoCKit-Upgrade

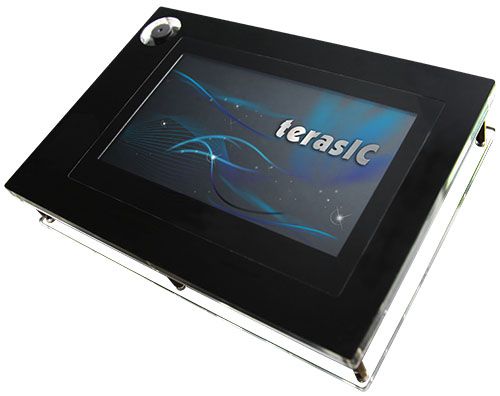

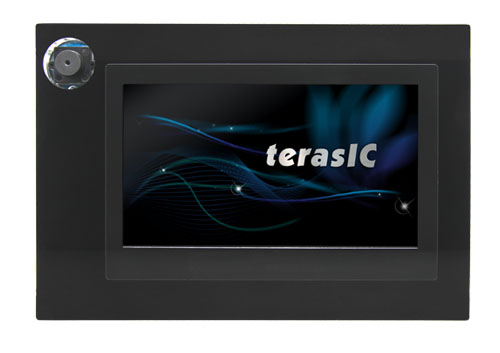

VEEK-MT-SoCKit Upgrade Kit

Interface

  • Type: HSMC
  • Control IO-Standard Voltge: 2.5V
  • Power Source: 3.3V and 12V from HSMC

LCD Display

  • 7-inch TFT LCD with pixel resolution of 800*480
  • 16 million colors (8-bit RGB)
  • LED backlight

5-Megapixel Digital Image Sensor

  • 2,592H x 1,944V active pixels with Bayer color arrangement
  • Programmable frame rate up to 70FPS (VGA)
  • Snapshot-mode mode to take frames on demand
  • Simple two-wire serial control interface

Digital Accelerometer

  • Up to 13-bit resolution at +/- 16g
  • SPI (3- and 4-wire) digital interface
  • Flexible interrupts modes

Ambient Light Sensor

  • Precise illumination measurement under diverse lighting conditions
  • Programmable interrupts
  • 16-bit digital output with I2C fast-mode at 400 kHz
  • Programmable analog gain and Integration time
  • 50/60Hz lighting ripple rejection

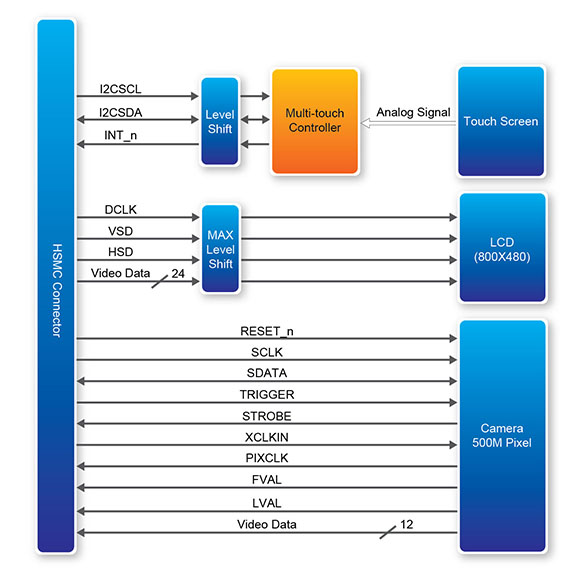

MTLC Block Diagram

Connectivity

 Assembled with SoCKit to form VEEK-MT-SoCKit

 Assembled with other FPGA main boards, please visit: MTLC
