SoC 平台 Arria Arria V SoC Development Kit and SoC Embedded Design Suite






A5SOC

Arria V SoC Development Kit and SoC Embedded Design Suite

Featured devices

  • Arria V ST SoC—5ASTFD5K3F40I3NES (SoC)
  • MAX® V CPLD—5M2210ZF256C4N (system controller)
  • MAX II CPLD—EPM570GF100 (embedded USB-BlasterTM II cable)

FPGA configuration sources

  • Embedded USB-Blaster II (JTAG) cable
  • EPCQ flash (Active Serial x1 or x4 configuration)
  • Flash fast passive parallel (FPP)
  • Hard processor system (HPS)

FPGA memory

  • 2x 1,024 MB 32-bit DDR3 SDRAM
  • 1x 512 Megabit (Mb) CFI synchronous Flash
  • 1x 256 Mb NOR Flash (EPCQ)

FPGA I/O interfaces

  • 1x PCI Express x4 Gen2 socket
  • 2x FPGA mezzanine card (FMC) portds
  • 2x 10/100 Ethernet ports
  • 2x SPF+ ports
  • 4x user LEDs
  • 4x user pushbuttons
  • 4x user dip switches
  • HPS boot sources
  • 512 Mb QSPI Flash
  • Removable micro-SDCard flash
  • FPGA

HPS memory

  • 1x 1,024 Mbyte (MB) DDR3 SDRAM with ECC
  • 1x 512 Mb QSPI flash
  • Micro-SDCard socket with 4 GB micro-SDCard flash device
  • One 32 Kb I2C serial EEROM

HPS I/O interfaces

  • 1x 1 Gigabit Etherent port (HPS)
  • 1x USB 2.0 on-the-go (OTG) port (HPS)
  • 2x RS-232 UART (through mini-USB port)
  • x1 real-time clock (with battery backup)
  • x1 two-line text LCD
  • x4 user LEDs
  • x4 user push buttons
  • x4 DIP switches

Clocking

  • Four-output programmable clock generator for FPGA reference clock inputs
  • 148.5 MHz LVDS programmable voltage-controlled crystal oscillator (VCXO) for FPGA reference clock input
  • 50 MHz single-ended oscillator for FPGA and MAX V FPGA clock input
  • 100 MHz single-ended oscillator for MAX V FPGA configuration clock input
  • SMA inputs for FPGA and HPS clocks
  • LMK04828 clock jitter cleaner

Power

  • Laptop DC input 14—20 V adapter

System monitoring circuit

  • Power (voltage, current, wattage)

Mechanical

  • Board dimensions—7.175” x 9”

SoC Embedded Design Suite Subscription Edition

  • ARM Development Studio 5 (DS-5™) Altera Edition Toolkit
  • Hardware-to-software handoff tools
  • Linux run-time software for application development
  • SoC hardware libraries for firmware development
  • Application examples

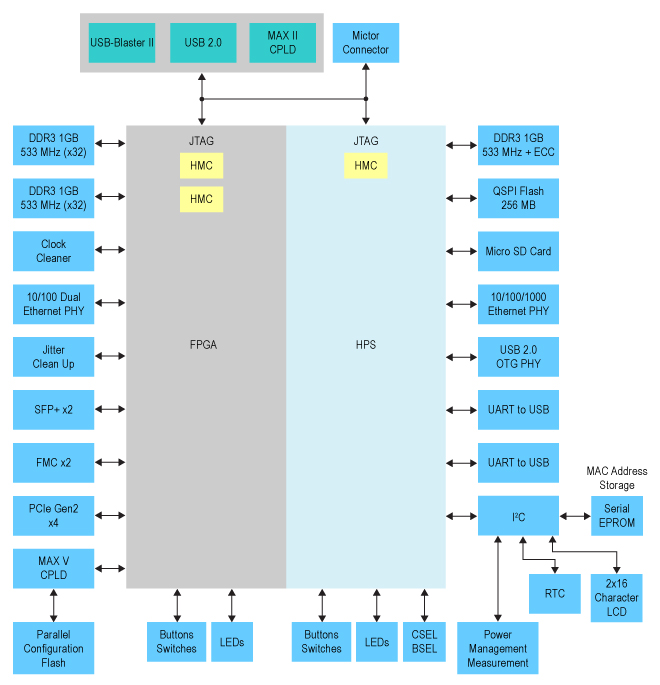

 Figure 2: Block Diagram of the Arria V SoC Development Board

* Watch the video to learn more.
