Documents
標題 | 版本 | 大小 | 日期 | 下載 |
---|---|---|---|---|
HDMI-FMC User Manual (rev.C Board) | 1.9 | 3,616(KB) | 2023-09-06 | |
HDMI-FMC User Manual (rev.B Board) | 1.7 | 2,807(KB) | 2020-11-25 |
CD-ROM
標題 | 版本 | 大小 | 日期 | 下載 |
---|---|---|---|---|
HDMI-FMC CD-ROM (rev.C Board) | 3.2.0 | 2023-10-20 | ||
HDMI-FMC CD-ROM (rev.B Board) | 2.0.1 | 2020-11-25 |
友晶創新所發表之範例程式碼,基於免費分享之原則,不提供任何形式的講解或修改。如需進一步範例程式碼講解或修改的協助,我們將轉至「設計服務部門」評估。
本授權條款允許使用者於使用所有友晶及 Intel 開發板時,得以重製、散布、傳輸以及修改友晶創新提供的原始碼,但不得為商業目的之使用。使用時必須於引用處表彰友晶創新 (Terasic Inc.) 之商號。
Reference Design
- Loopback Demo
(Full source code included)

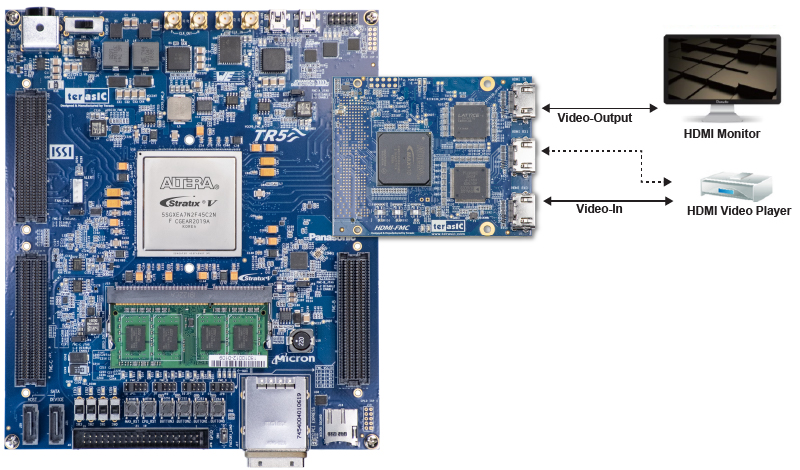

The Loopback demonstration establishes connection between the HDMI source device to the transmitter output of the HDMI daughter board. The Loopback (Internal bypass) generates the HDMI video and/or audio signals, as the audio and video output pins of the receiver are directly connected to the input audio and video pins of the transmitter.
