功能介紹
Spec
- One High Speed Mezzanine Card (HSMC) connector for interface conversion, which is fully compatible with Altera Development boards and Terasic DE3 host boards.
- External Clock In / Out Interface
- Two 14-bit Analog to Digital (A/D) converter channel with 150MSPS
- Two 14-bit Digital to Analog (D/A) converter channel with 250MSPS
- One Audio CODEC with Line-In, Line-Out, MIC and Headphone
Size :145mm x 80mm x 18mm (L x W x H)
功能方塊圖
應用特色
- Low cost oscilloscope and pattern generator
- Communication Transceiver
- Digital signal processing
- Platform for various modulation techniques
- Record and playback sound
連接性

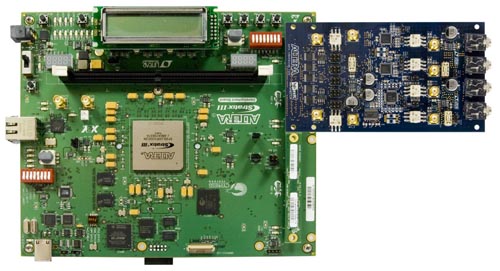

DCC-HSMC 介面連接示意圖

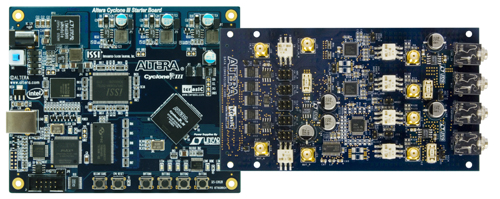

- DCC-HSMC 與 Altera Cyclone III Development Board 連接示意圖

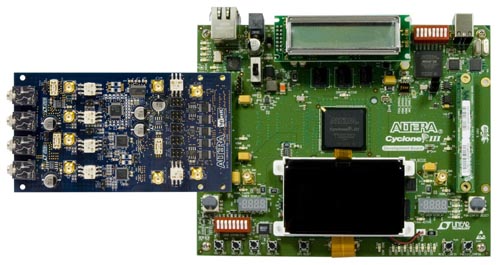

- DCC-HSMC 與 Altera Cyclone III Development Board 連接示意圖

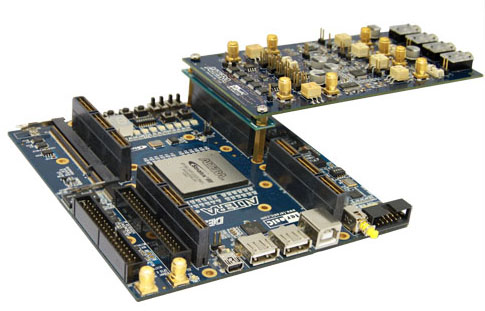

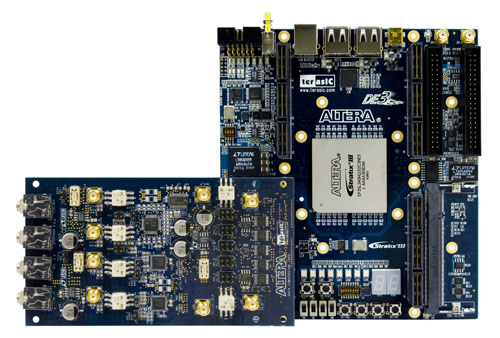

- DCC-HSMC 與 Altera DE3 連接示意圖
備註 :連接時需使用 SFF 轉接板 , 此轉接板已內含於 DE3 產品中

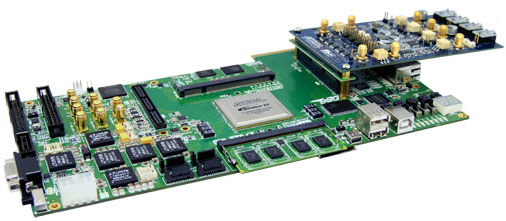

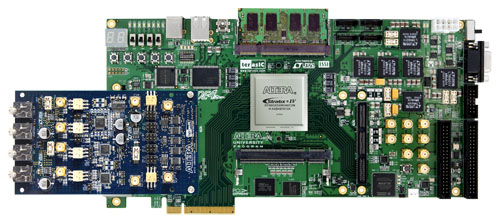

- DCC-HSMC 與 Altera DE4 連接示意圖
備註 : 連接時需使用一塊HMF2轉接板,此轉接板已內含於DE4產品中

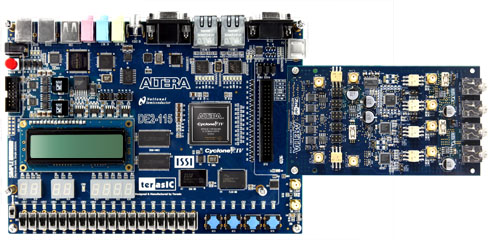

- DCC-HSMC 與 Altera DE2-115 連接示意圖
