停产产品 子板 HDMI-HSTC 子板(停止贩售)






HDMI

HDMI-HSTC 子板(停止贩售)

档案下载

Documents

标题版本档案大小(KB)新增日期下载
THDB-HDMI UserGuide 1546 2010-01-04

CD-ROM

标题版本档案大小(KB)新增日期下载
HDMI System CD   2010-09-16

友晶科技所发表之范例程式码,基於免费分享之原则,不提供任何形式的讲解或修改。如需进一步范例程式码讲解或修改的协助,我们将转至 "设计服务部门" 评估。
本授权条款允许使用者於使用所有友晶及 Intel 开发板时,得以重制、散布、传输以及修改友晶科技提供的源码,但不得为商业目的之使用。使用时必须於引用处表彰友晶科技 (Terasic Inc.) 之商号。

Reference Designs

Transmission-Only Demo
(Full source code included)

The Transmission demonstration is able to generate HDMI Video/Audio signal for transmission, including various video formats and color space. There are 11 video formats available with 3 color space selections which include RGB444, YUV422, and YUV444.

The video formats supported are listed below:

✔ 720x480p60
✔ 1024x76pP60
✔ 1280x720p50
✔ 1280x720p60
✔ 1280x1024
✔ 1920x1080i60
✔ 1920x1080i50
✔ 1920x1080p60
✔ 1920x1080p50
✔ 1600x1200p5
✔ 1920x1080i120

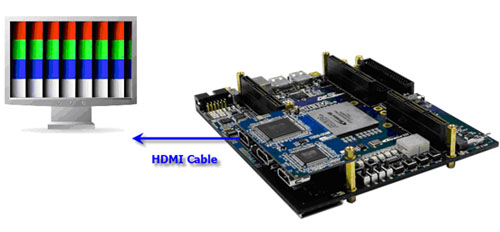

Transmission-Only Demo Hardware Setup

Adobe Systems

Loopback Demo
(Full source code included)

The Loopback demonstration establishes connection between the HDMI source device to the transmitter output of the HDMI daughter board. The Loopback (Internal bypass) generates the HDMI video and/or audio signals, as the audio and video output pins of the receiver are directly connected to the input audio and video pins of the transmitter.

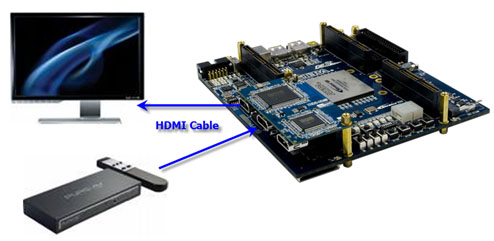

Loopback Demo Hardware Setup

Adobe Systems

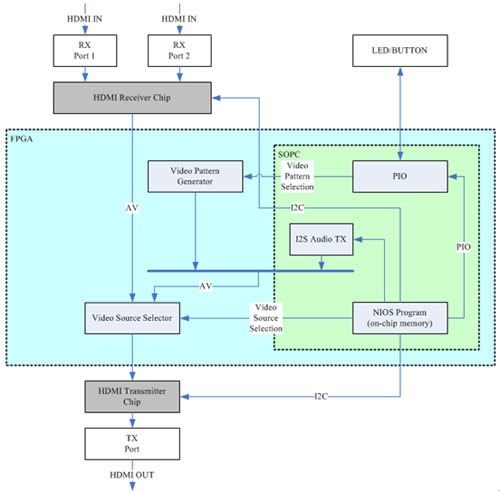

System Block diagram of the HDMI demonstration
