DE25-Standard

• FPGA: A5ED013BB32AE4S (138K LEs)
• Dimension: 166 mm x 130 mm
• Onboard USB-Blaster II
• Support ASx4 Configure Mode with 128Mbits QSPI Flash
• Board Management System
  • Power Monitor
  • Temperature Monitor
  • Auto fan Control
• Optional Active Heatsink

FPGA side

• DDR4: 1GB DDR4 with 32-bit data bus (no ECC), shared with HPS.
• SDRAM: 64MB SDRAM with 32-bit data bus (no ECC).
• HDMI 1.4 Output Port (Support 1080P)
• One 2-lanes MIPI Connector for Camera/Display
• Composite video-In
• 24-bits audio codec: MIC-In, Line-In, and Line-Out
• 8-channel ADC with 2x5 header
• IR TX/RX
• One 3.3V 2x20 DE-GPIO Header
• One HSMC connector with 4 transceivers.
• User LED x10, Button x4, Slide Switch x10, 7-segment x6

HPS side

• MicroSD Socket
• DDR4: 1GB DDR4 with 32-bit data bus (no ECC), shared with FPGA
• Gigabit Ethernet PHY + RJ45
• Two USB Host ports with USB Type-A connector
• UART to USB Port
• 128x64 LCD
• Accelerometer
• LED x1, Button x1, Cold Reset Button
• One 3.3V 1x6 GPIO Header

Software Support

• FPGA Example Code
• Linux BSP

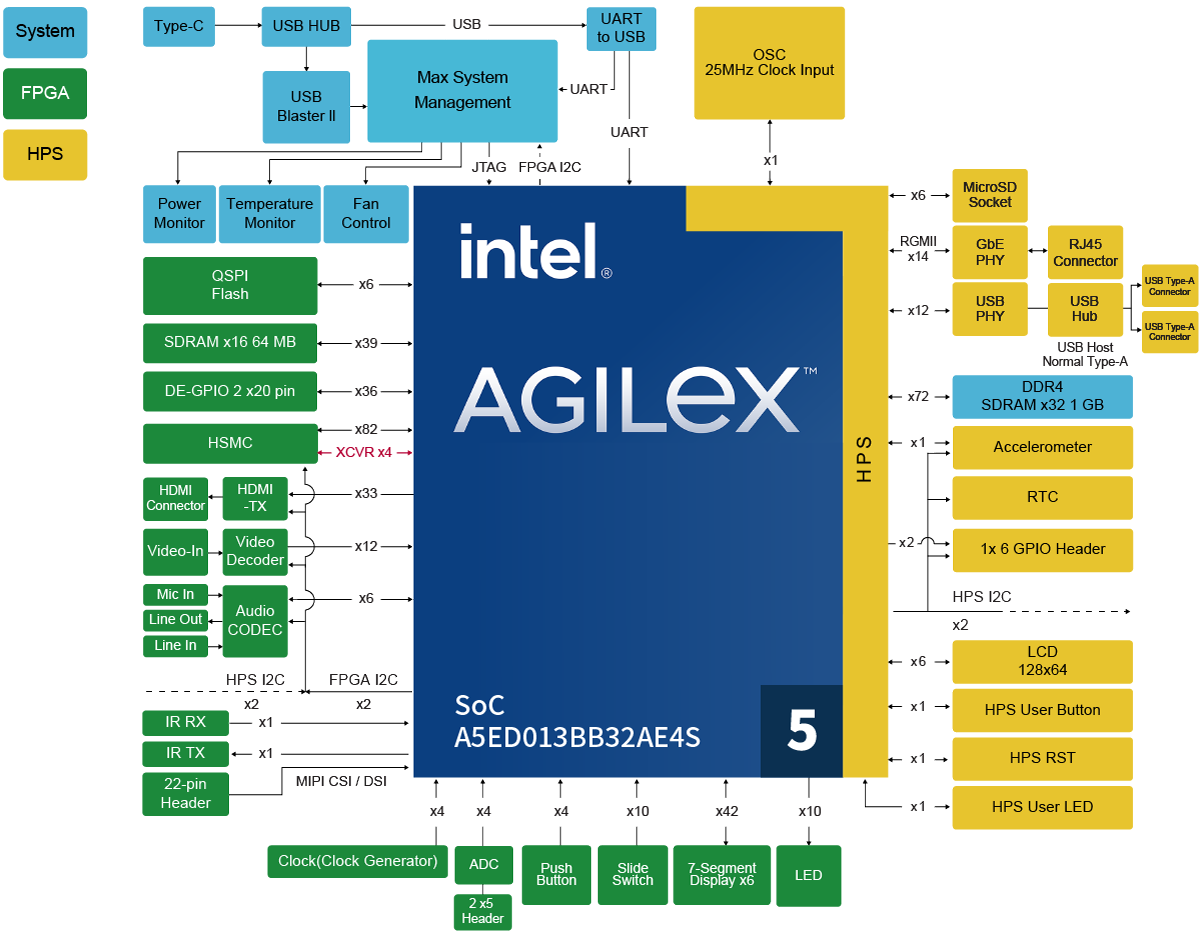

Block Diagram

Connection to 2x20 GPIO Daugher Card

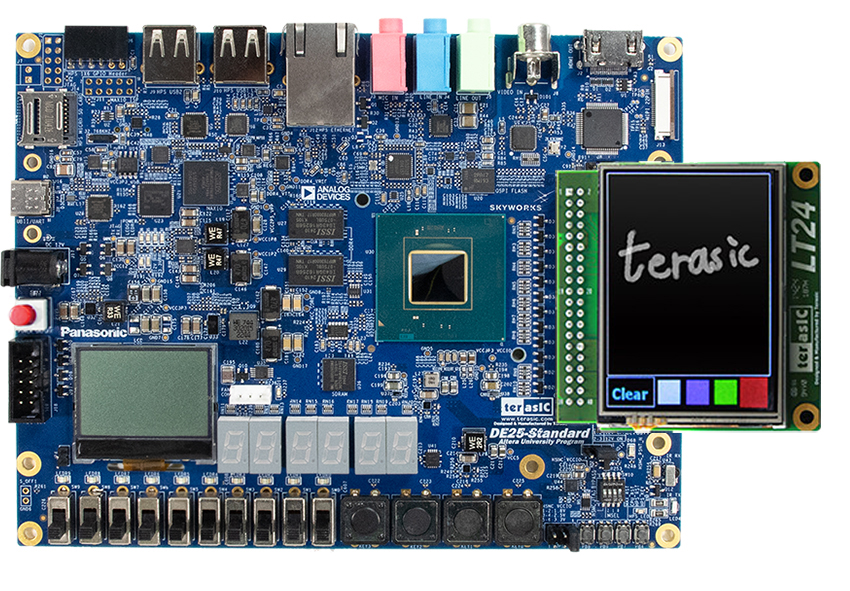

Connect LT24

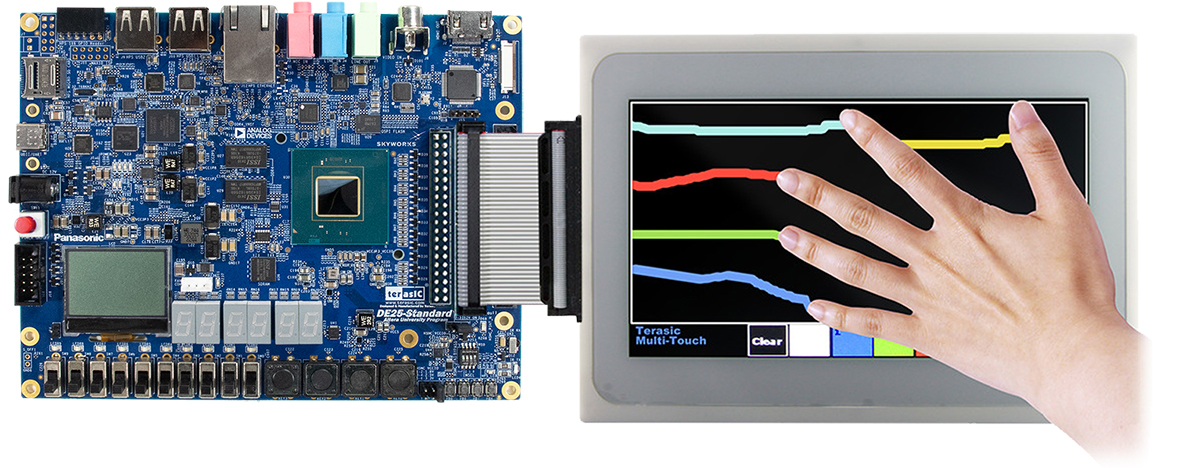

Connect MTL2

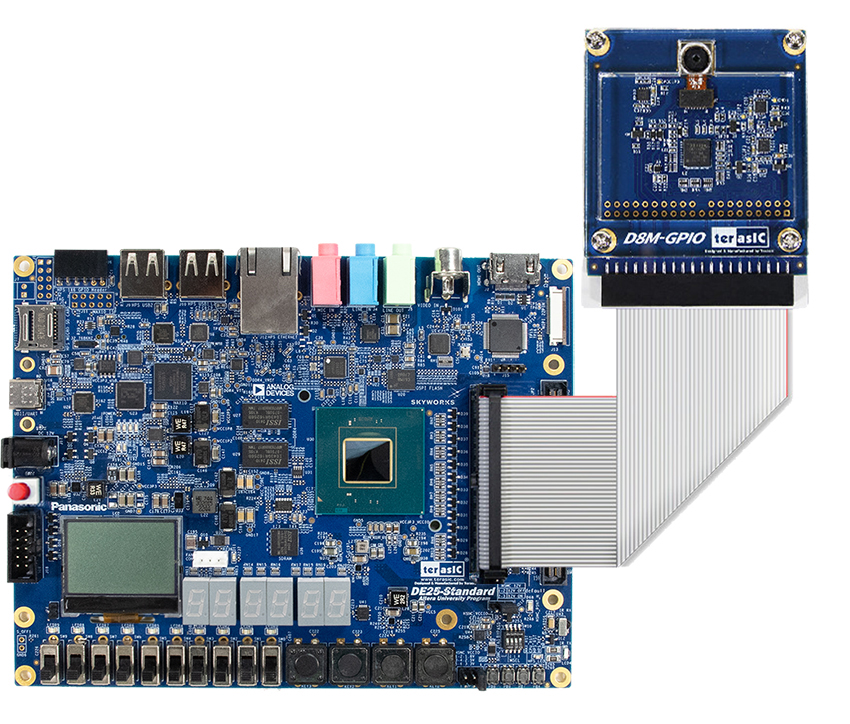

Connect D8M

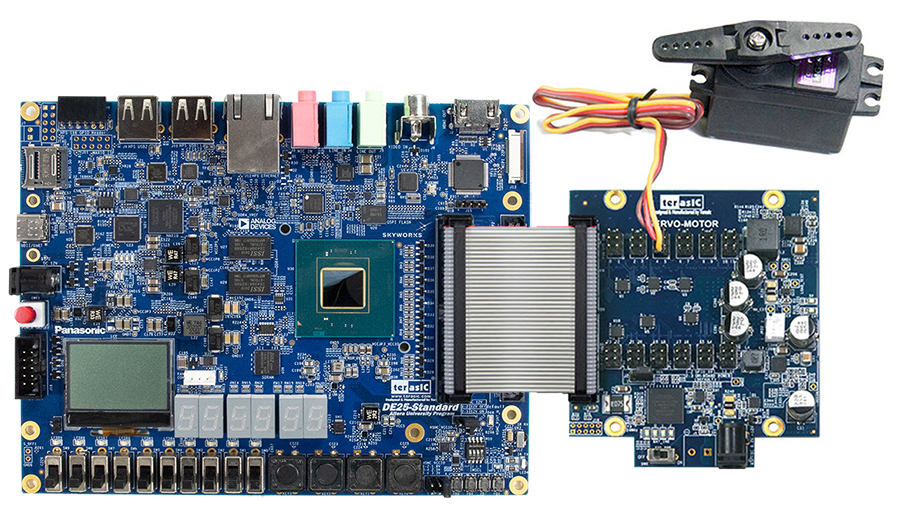

Connect SMK

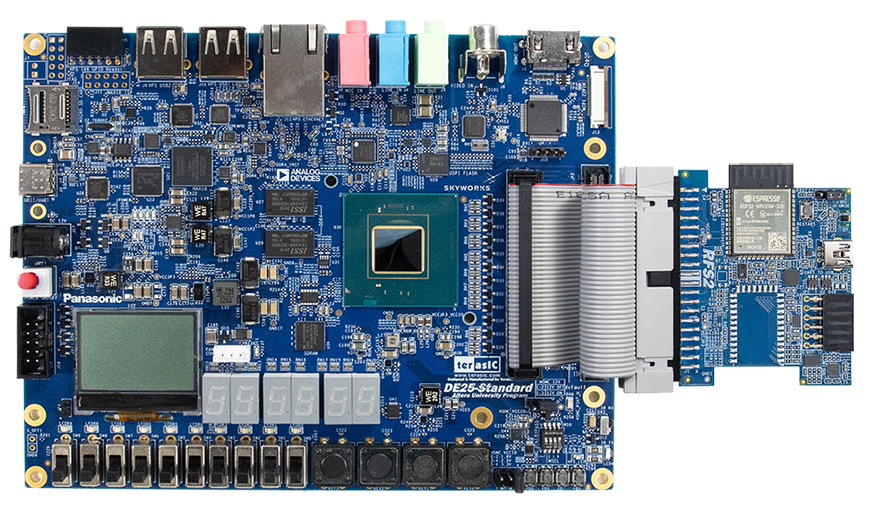

Connect RFS2



Connection to HSMC Daugher Card

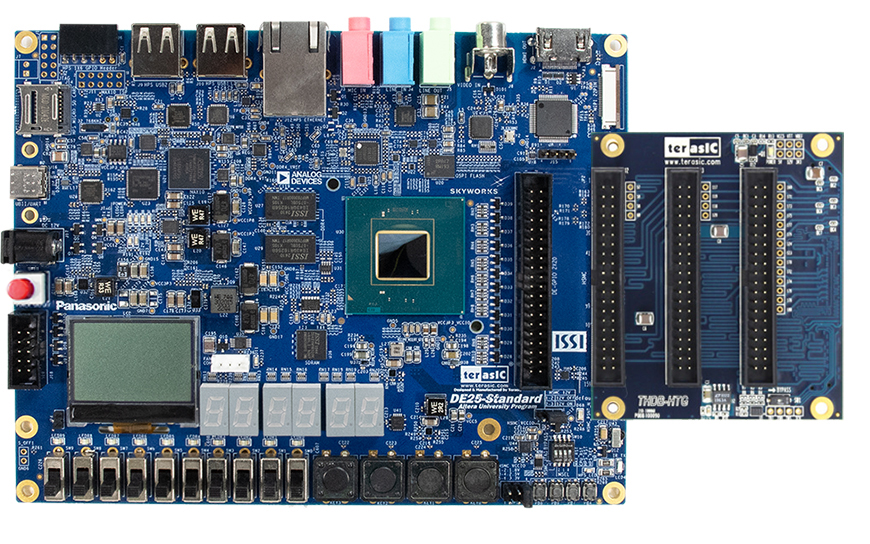

Connect HTG

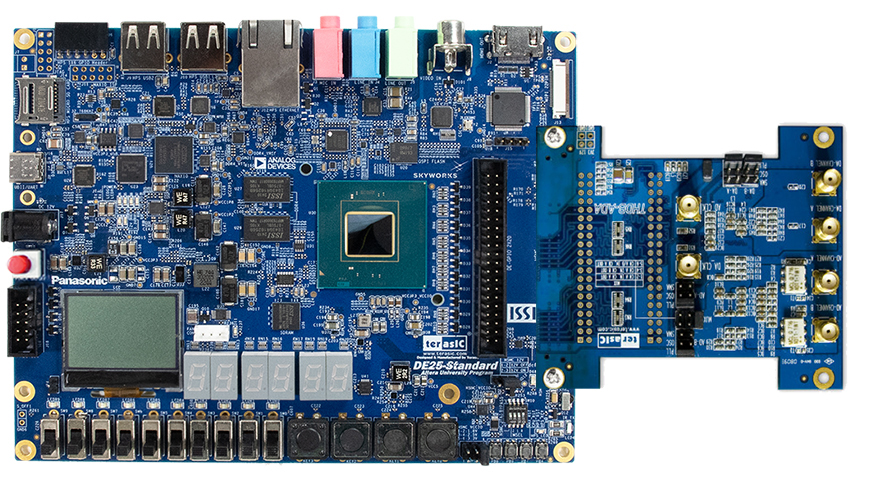

Connect ADA

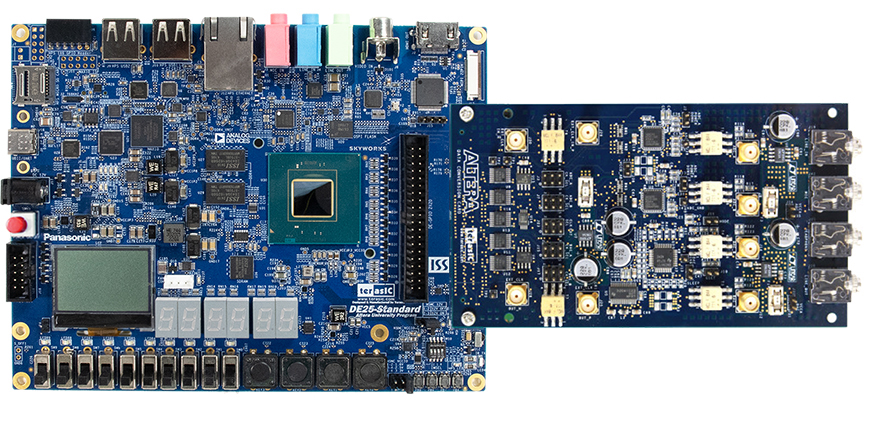

Connect DCC
