• FPGA: Agilex 3 A3CZ135BB18AE7S Device
  • 135,110 Logic Elements
  • 6.89 Mbit M20K, 1.4 Mbit MLAB
  • 368 18x19 Multipliers
  • 4 IO PLL, 8 Fabric I/O PLL
• Programming/Debug and Configuration
  • On-Board USB Blaster III (Type C USB connector)
  • ASx4 Mode with 128Mbit QSPI Flash
• Memory Device
  • 64MB SDRAM, x32 bits data bus
  • MicorSD Card Socket
• Communiation
  • Gigabit Etherent
  • UART
• Display
  • HDMI Output
• Expansion Connectors
  • One 2x20 GPIO Connector (voltage level: 3.3V)
  • Two 2x6 TMD GPIO Connectors (voltage level: 3.3V; PMOD compatible)
• Switches/Buttons/LEDs
  • 4 LEDs
  • 2 Slide Switches
  • 2 Push Buttons
• Power
  • 5V DC input

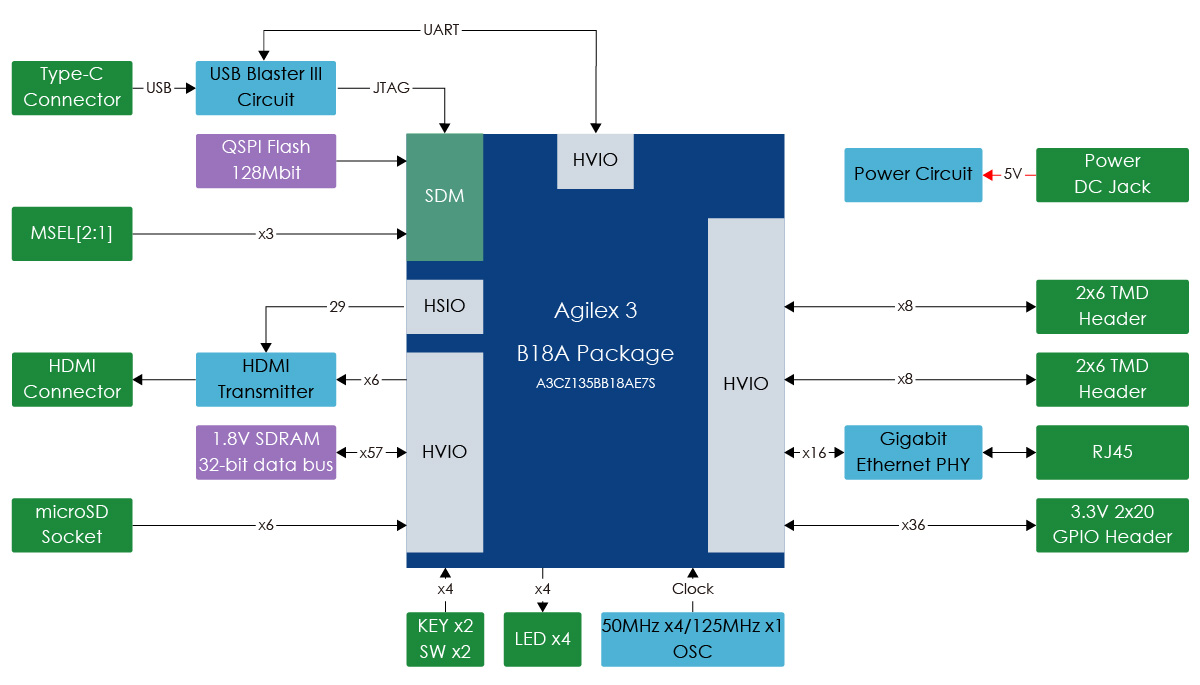

Block Diagram

Connectivity
