Key Features
- Features an Agilex 7 FPGA I-Series Device (AGIB027R29A1E1VB) with 2700 KLE, in a 2957A package
- Supports PCIe 5.0 and CXL x16 via edge connector and MCIO ports using R-Tile transceivers (CXL IP is licensed separately)
- Includes two QSFPDD ports for high-speed optical or electrical connectivity up to 56 Gbps per lane
- Offers two on-board DDR4 x72 ECC memory channels and two DIMM sockets supporting up to DDR4-3200
- Provides multiple configuration modes including Avalon Streaming x8 and onboard FPGA Download Cable II and external JTAG header for flexible programming
- Integrated MAX 10 system controller for power sequencing, monitoring, and temperature sensing
- Comes with BTS GUI, Clock Controller, and Power Monitor for board validation and diagnostics
- Includes USB, I2C, and UART interfaces for system communication and control
- Delivered with DDR4 DIMM, USB cable, 240W power adapter, and international power cords
Offering Brief
| Device Family | Agilex® 7 FPGAs and SoC FPGAs I-Series |
|---|---|
| Offering Status | Production |
| Device OPN(s) on Board | AGIB027R29A1E1VB |
| Demo | No |
| Form Factor | PCIe |
| Power | 12V DC input via PCIe edge connector or included 240W power adapter |
| Interfaces | PCIe Gen5 x16 CXL x16 via MCIO 2x QSFPDD USB (Micro USB) JTAG UART I2C GPIO |
| Memory | DDR4 x72 ECC (2 channels, 32 GB each, 1333 MHz); 2x DDR4 DIMM sockets (up to 128 GB total); QSPI 2Gb flash for config |
| Connectors | PCIe edge connector; 2x MCIO connectors; 2x QSFPDD cages; 2x DDR4 DIMM sockets; Micro USB port; JTAG header; Fan connector; I2C headers |
| Switches & LEDs | Power slide switch; PCIe lane width DIP switches; Configuration mode DIP switches; Clock source DIP switches; I2C and PMBus DIP switches; JTAG source DIP switches; CPU reset button; PCIe reset button; CXL reset button; USB PHY reset button; QSFPDD reset button; User LEDs; Status LEDs; Over-temp LED |

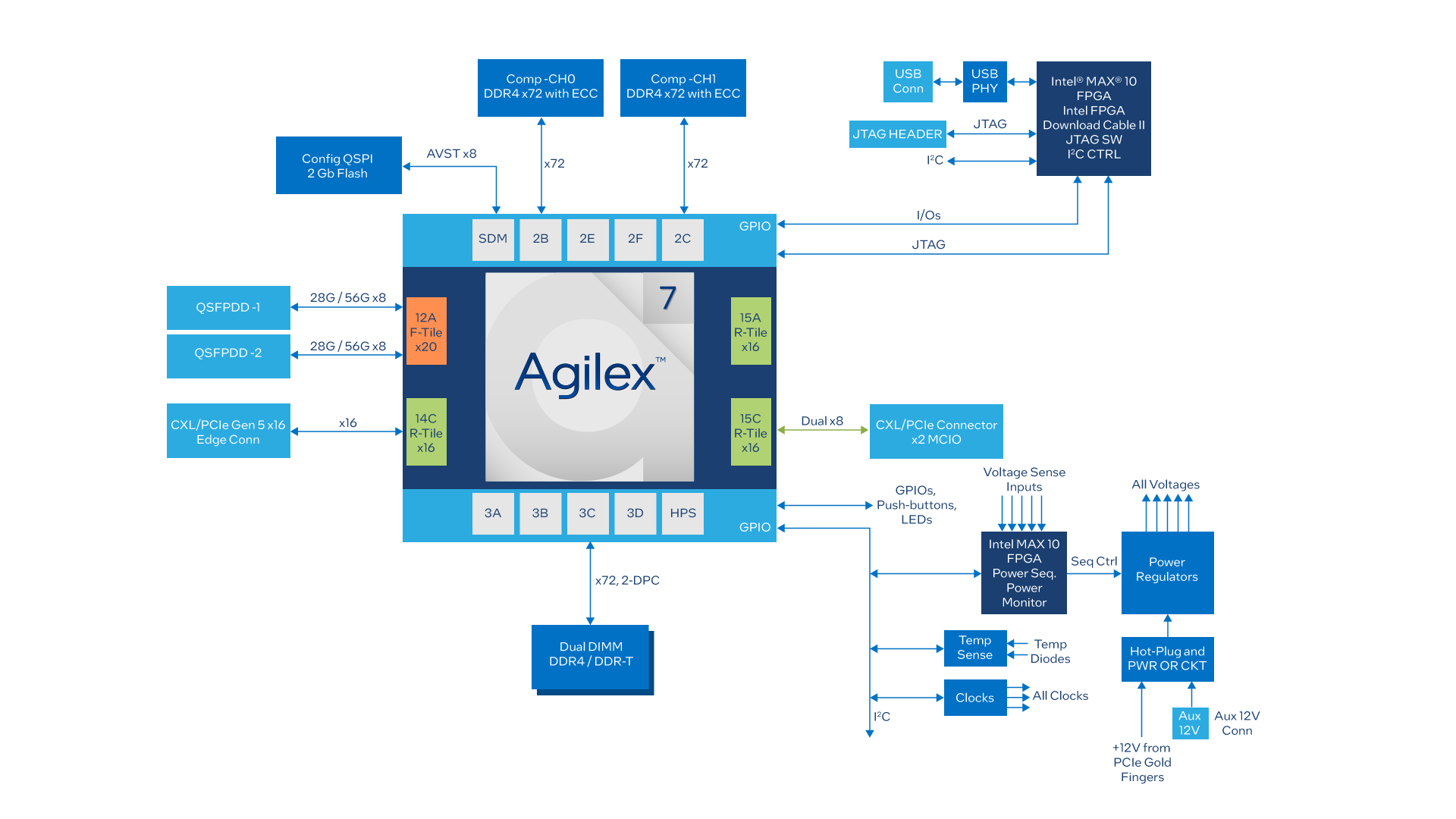

Block Diagram
What’s Included?
- Agilex 7 FPGA I-Series development board
- 16Gb DDR4 DIMM module
- USB 2.0 Micro USB cable
- 240 W power adapter and international cords
