DE Main Boards Cyclone Altera DE2-115 Development and Education Board






DE2-115

Altera DE2-115 Development and Education Board

Reference Book:
Modern Digital Designs with EDA, VHDL and FPGA

Download

Documents

TitleVersionSize(KB)Date AddedDownload
DE2-115 User Manual 2.3 14048 2017-08-14
DE2-115_FAQ_v1.1 198 2012-06-07

CD-ROM

TitleVersionSize(KB)Date AddedDownload
DE2-115 CD-ROM (Cypress USB) 3.0.3   2017-08-14
DE2-115 Control Panel 2.2.0   2015-03-27
DE2-115 System Builder 2.0.1   2014-10-03
DE2-115 CD-ROM (NXP USB) 1.0.6   2012-07-21

Please note that all the source codes are provided "as-is". For further support or modification, please contact Terasic Support and your request will be transferred to Terasic Design Service.
More resources about IP and Dev. Kit are available on Altera User Forums.

Demonstrations

  • PS2 Mouse
  • IR Receiver
  • TV Box
  • SD Card Reader
  • SD Card Music Player
  • A Karaoke Machine
  • Music Synthesizer
  • Audio Recording and Playing
  • USB Paintbrush
  • USB Device
  • Web Server

DE2-115 Tools

DE2-115 Control Panel – allows users to access various components on the DE2-115 platform from a host computer.

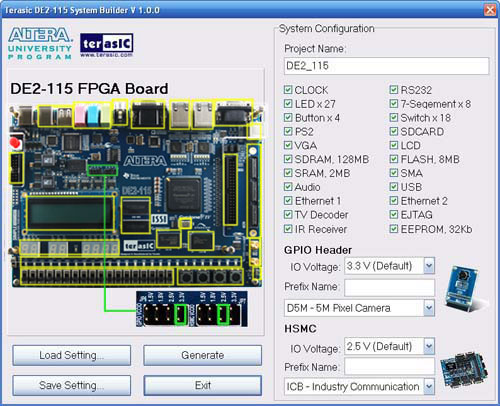

DE2-115 System Builder

DE2-115 System Builder – a powerful tool that comes with the DE2-115 board. This tool will allow users to create a Quartus II project file on their custom design for the DE2-115 board. The top-level design file, pin assignments, and I/O standard settings for the DE2-115 board will be generated automatically from this tool. In addition, through the GPIO and HSMC connectors you can select various daughter cards in conjunction with the DE2-115 using the DE2-115 System Builder.

Related course resources:

School: Universidad Pontificia BolivarianaInstructor:Prof. Holguer A. Becerra
Course 1: - [Publication] Signal processing and waves graphing acceleration using FPGA

School: University of Cambridge Professor: Simon Moore
Course 1: -CHERI: a research platform deconflating hardware virtualization and protection

Other course resources you might interested:

School: Cornell UniversitySenior Lecturer: Bruce Land
Course 1: - ECE5760 Advanced Microcontroller Design and system-on-chip [DE2]
Course 2: - ECE 5760 Simplified Floating Point for DSP [DE2]





Layout Kit Contents
