Altera Cyclone IV GX Transceiver Starter Kit
Featured device
- Cyclone IV GX EP4CGX15BF14C8N FPGA
Configuration status and set-up elements
- MAX®
II CPLD EPM2210 System Controller enabling passive serial (PS) configuration from flash
- Embedded USB-Blaster™ for using the Quartus II Programmer
- JTAG header for external USB-Blaster
- Altera serial configuration device
Clocks
- FPGA clock sources: 50 MHz, 125 MHz, and SMA clock input
- Other on-board oscillators: 6 MHz, 24 MHz, and 25 MHz
General user input/output
- LEDs
- Two-line character LCD display
- Push-buttons
Memory devices
- 16 MB of flash memory
- 2 MB of synchronous SRAM
Component and interfaces
- PCIe edge connector
- 10/100/1000BASE-T Ethernet PHY with RJ-45 connector or one transceiver to SMA connectors (requires a minor board modification)
- On-board power measurement circuitry
Power
Other features
- PCIe low-profile (6.6" x 2.713") board form factor
- Restriction of hazardeous substances (RoHS) compliance

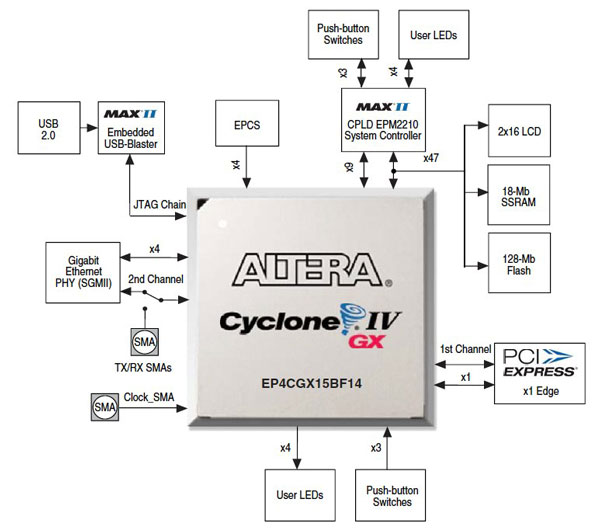

Altera Cyclone IV GX Transceiver Starter Kit Block Diagram
