Phased Out Daughter Cards GPIO-HSMC Card (Phased Out)






H2G

GPIO-HSMC Card (Phased Out)

  • Converts HSMC interface I/O to standard 40-pin expansion connectors.
  • Allows users to connect Altera DE2/DE1 boards to a HSMC-interfaced host board.
  • Provides test points for signal measurement.
  • Size:78.105*71.12 mm

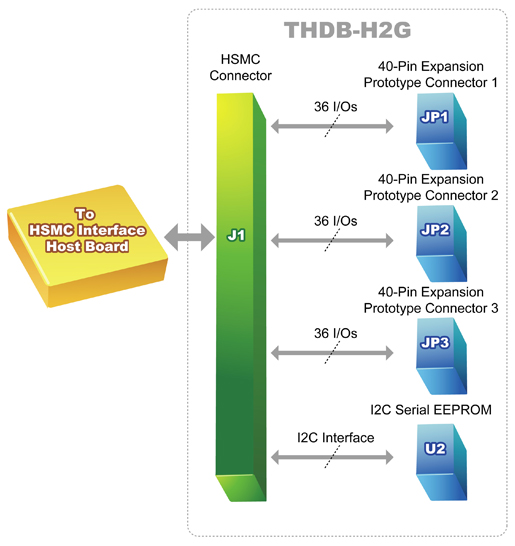

Block diagram

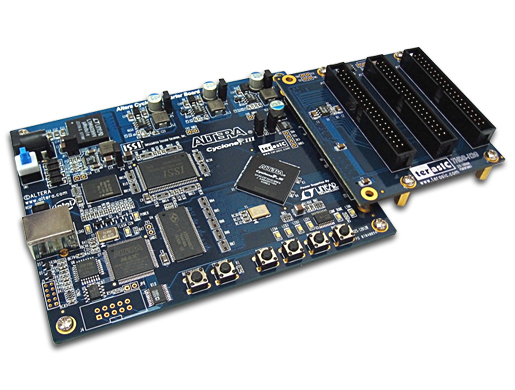

The THDB-H2G board connects with Altera Cyclone III Start Board





Overview Resources
