Phased Out Daughter Cards HSMC to Santa Cruz / USB / Mictor Card






SUM

HSMC to Santa Cruz / USB / Mictor Card

  • One HSMC connector for interface conversion
  • One SC interface
  • Adjustable logic levels between HSMC and SC interface signals
  • One Hi-Speed USB On-The-Go transceiver
  • One Mictor Connector
  • One SMA Connector for external clock input
  • One SD Card Socket
  • Size:78.11x69mm

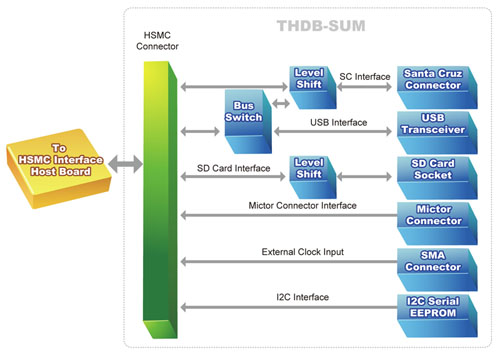

Block diagram

Connectivity

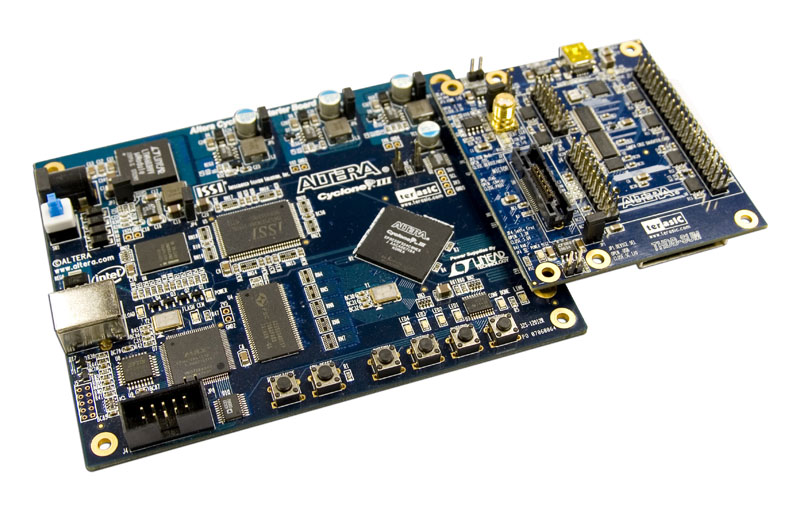

The SUM connects with Altera Cyclone III Start Board

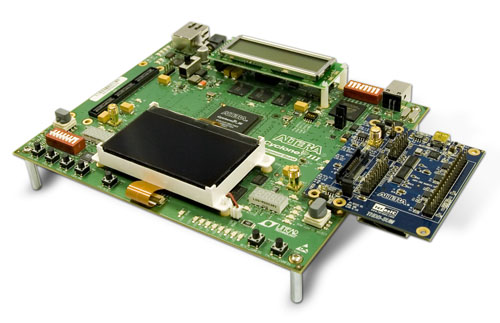

The SUM connects with Altera Cyclone III FPGA Development Board



Overview Resources
