Phased Out Daughter Cards HSMC Mass Storage and Video Card(Phased Out)






MSV

HSMC Mass Storage and Video Card(Phased Out)

HSMC Mass Storage and Video Card:

Features

  • SATA Interface x2 plus ATA HD Power
  • General Purpose XCVR (GP XCVR)
  • Display Output for integrated National FPD2 Link (LVDS)
  • General Display Output (LVDS)
  • Camera Link Input/Output (Base on Configuration)
  • MOST Network Interface for SMSC OS881110 evaluation board
  • GPIO x 4

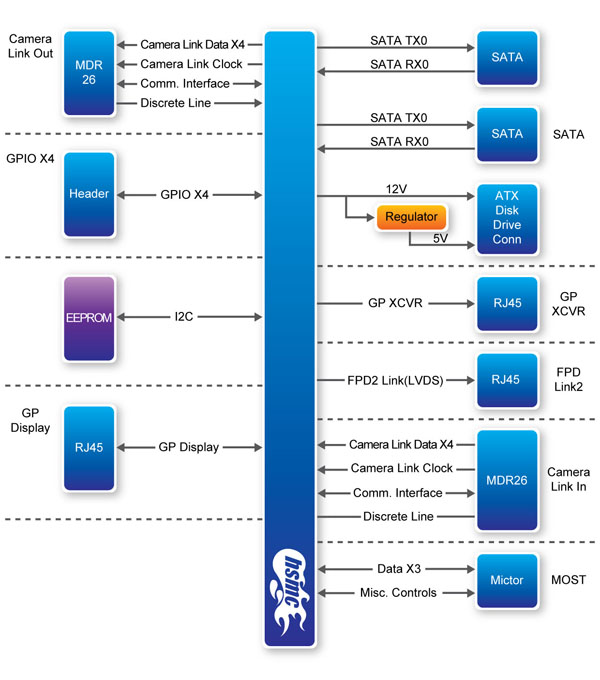

Block Diagram

  Connect DE4




   Connect A2GX









Overview Layout
