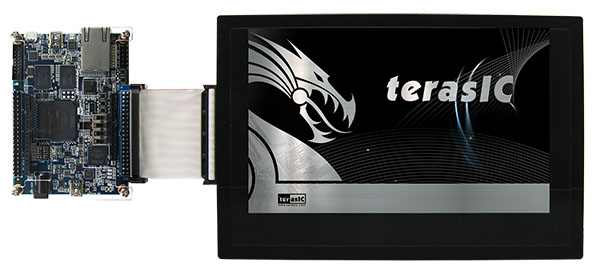

Multi-touch LCD Module (MTL)

Features

LCD

  • 7-inch panel
  • 800x480 pixels
  • 24-bits color depth
  • TTL interface

Multi-touch

  • Capacitive Touch Screen
  • Multi-touch Gestures
  • Single Touch Support

Interface

  • IDE Connector
  • 2x20 GPIO connector with ITG (IDE to GPIO) adapter

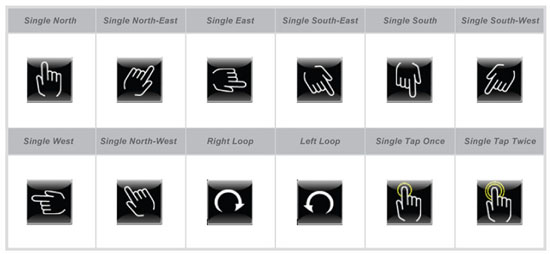

Gesture Table

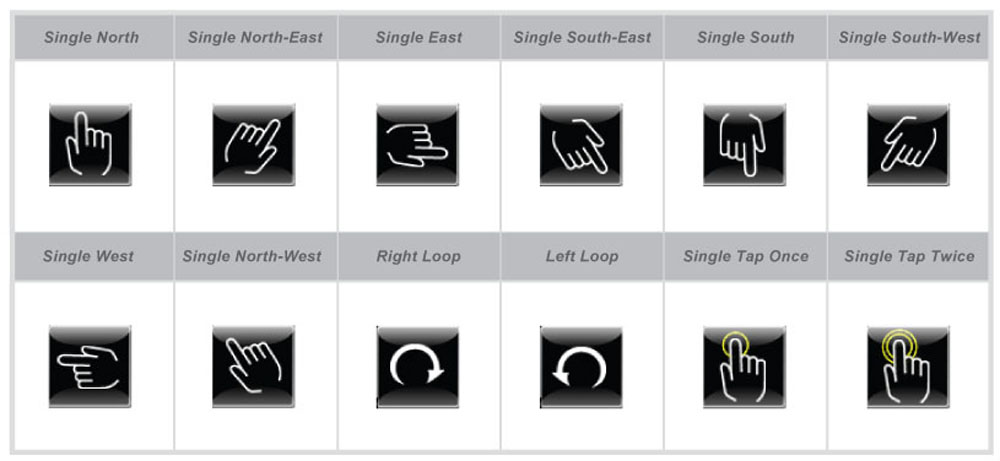

  • One Point

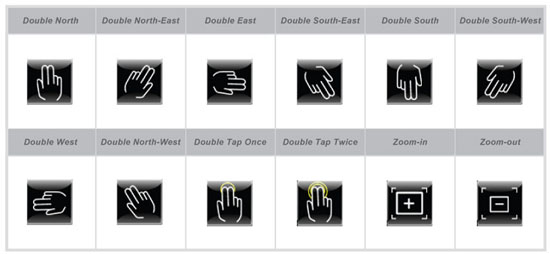

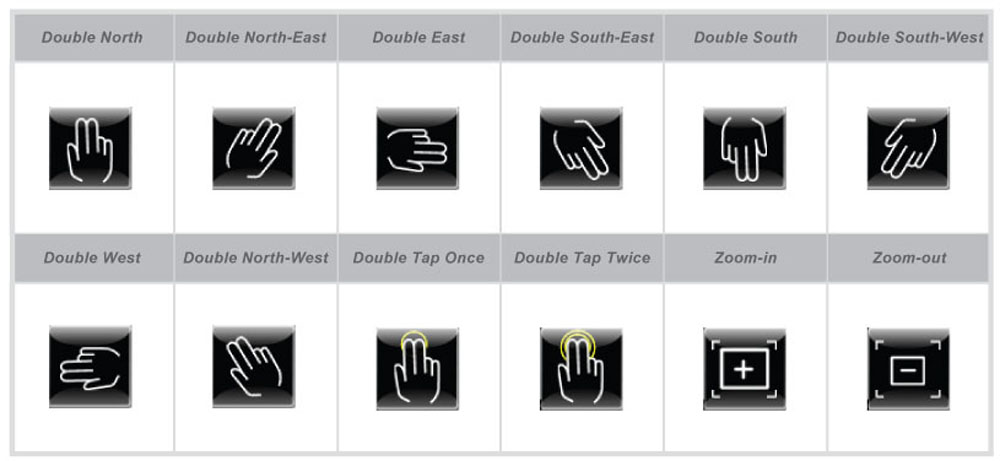

  • Two Point





Connectivity

The MTL can be connected to the following Terasic FPGA Development Boards:
For more information on the MTL for DE3 and DE4 users, please consult this page .

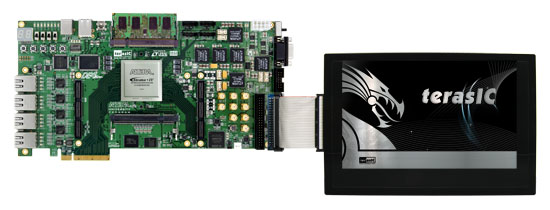

 Connect DE4

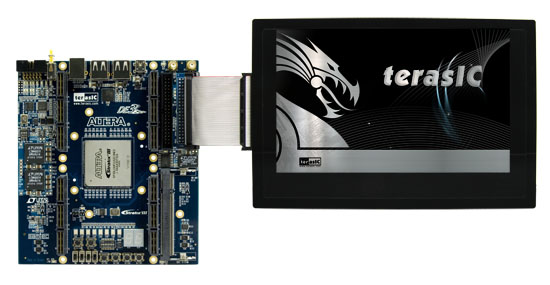

 Connect DE3

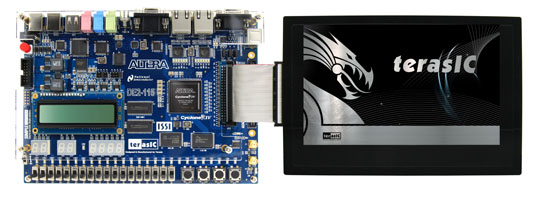

 Connect DE2-115

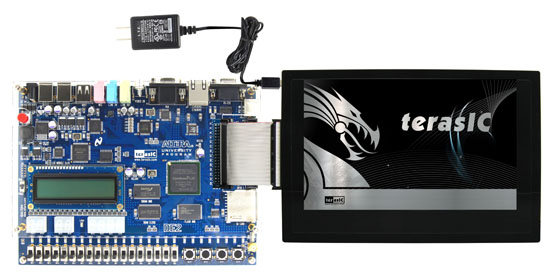

 Connect DE2



 Connect DE0-Nano-SoC(Atlas-SoC)
