Capacitive Multi-Touch LCD with Camera Module (MTLC)

Capacitive Multi-Touch LCD and Camera Module

  • 7-inch TFT LCD with pixel resolution of 800*480
  • 16 million colors (8-bit RGB)
  • LED backlight

5-Megapixel Digital Image Sensor

  • 2,592H x 1,944V active pixels with Bayer color arrangement
  • Programmable frame rate up to 70FPS (VGA)
  • Snapshot-mode mode to take frames on demand
  • Simple two-wire serial control interface

Digital Accelerometer

  • Up to 13-bit resolution at +/- 16g
  • SPI (3- and 4-wire) digital interface
  • Flexible interrupts modes

Ambient Light Sensor

  • Precise illumination measurement under diverse lighting conditions
  • Programmable interrupts
  • 16-bit digital output with I2C fast-mode at 400 kHz
  • Programmable analog gain and Integration time
  • 50/60Hz lighting ripple rejection

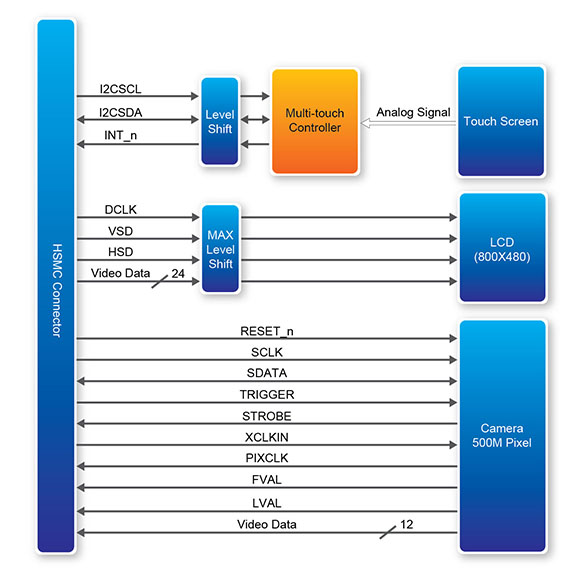

MTLC Block Diagram

Connectivity

The MTLC can be connected to the following Terasic FPGA Development Boards:

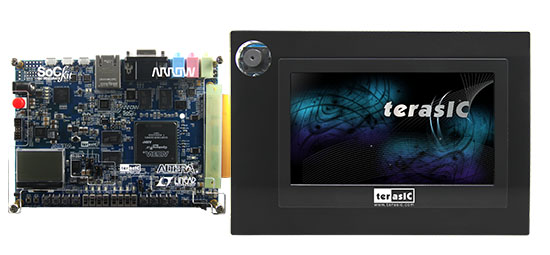

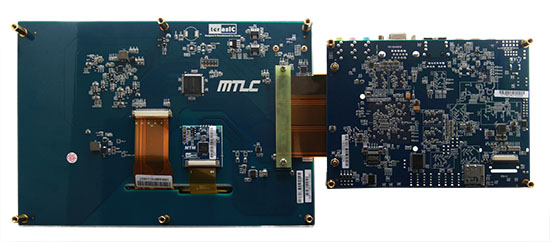

  Connect SoCKit

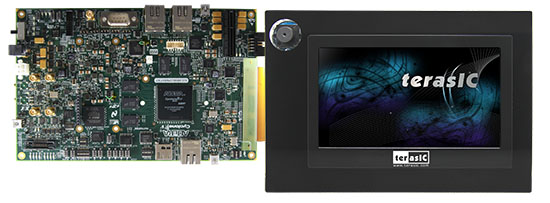

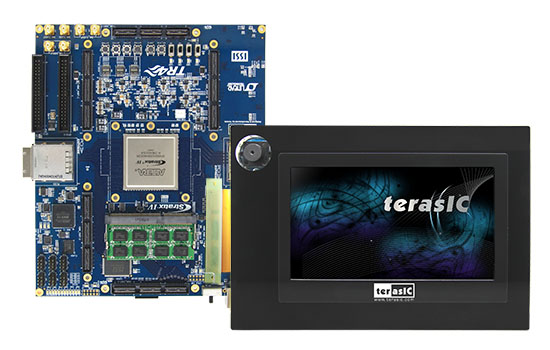

  Connect TR4

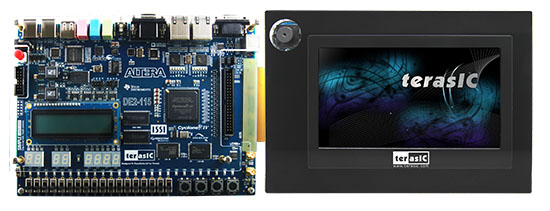

  Connect DE2-115

  Connect Altera C5SOC

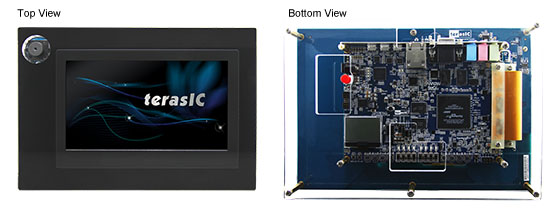

   Upgrade to VEEK-MT-SoCKit

For details, please go to: VEEK-MT for SoCKit
