Features
- Wi-Fi, using ESP32-WROOM-32E module
- Classic Bluetooth (BT) and Bluetooth Low Energy(BLE), using ESP32-WROOM-32E module
- 9-axis sensor: accelerometer,gyroscope,magnetometer
- Ambient light sensor
- Humidity and temperature sensor
- UART to USB
- 2x6 TMD GPIO Header

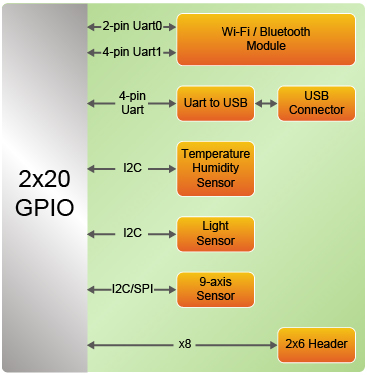

Block Diagram
Connectivity
The RFS2 can be connected to the DE Series FPGA boards as shown below.

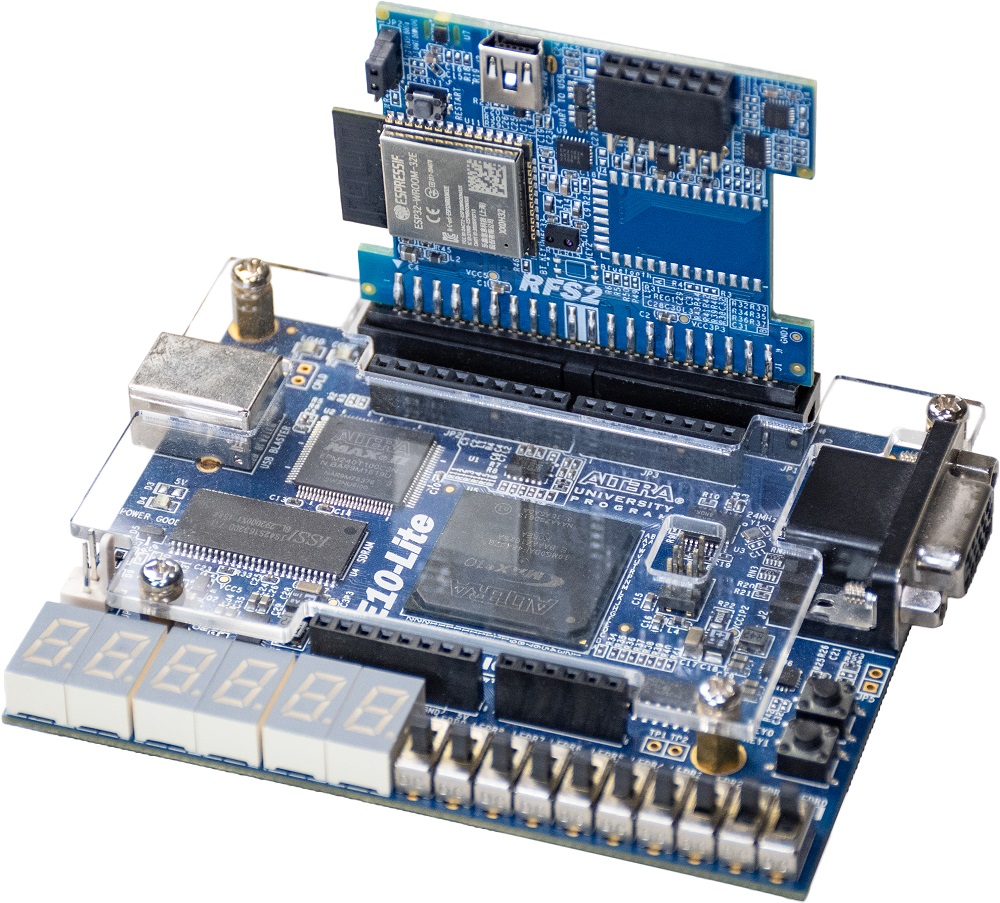

- Directly connect to the DE10-Lite board

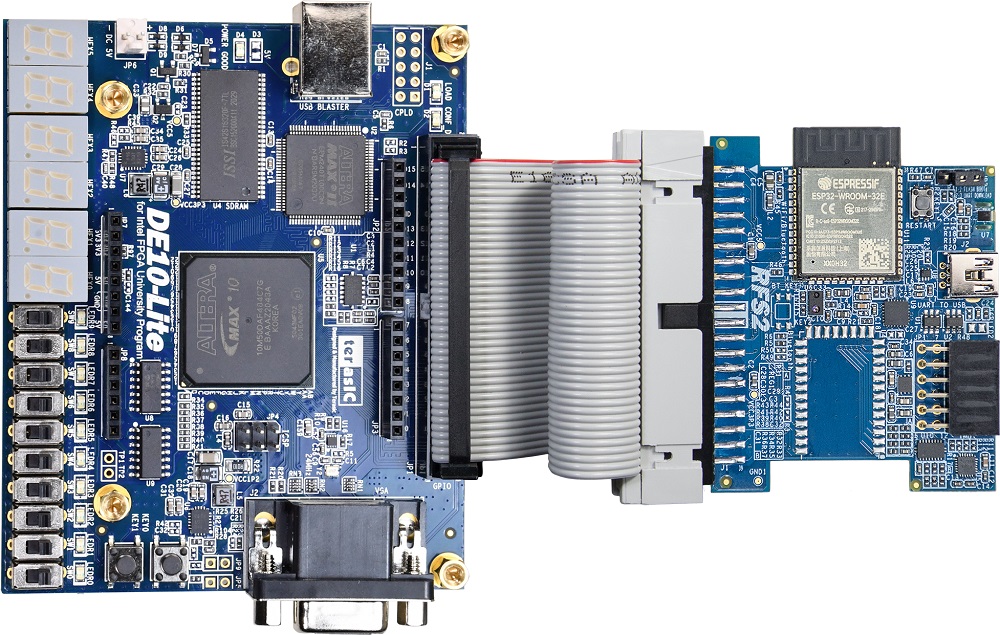

- Connect to the DE10-Lite board via a GPIO cable

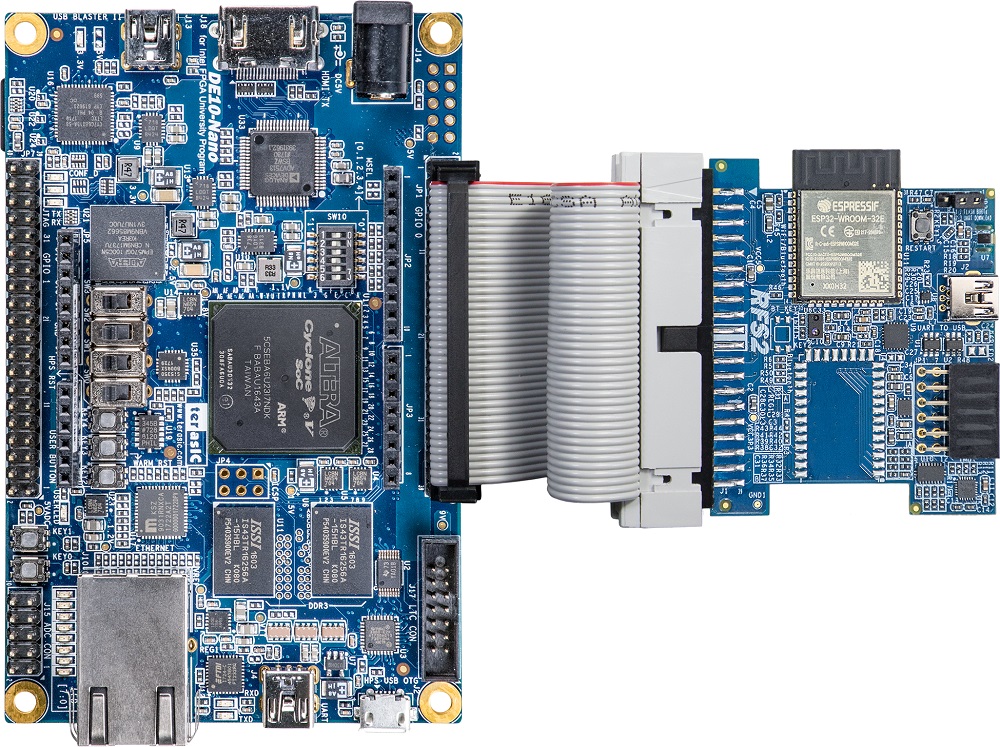

- Connect to the DE10-Nano board via a GPIO cable

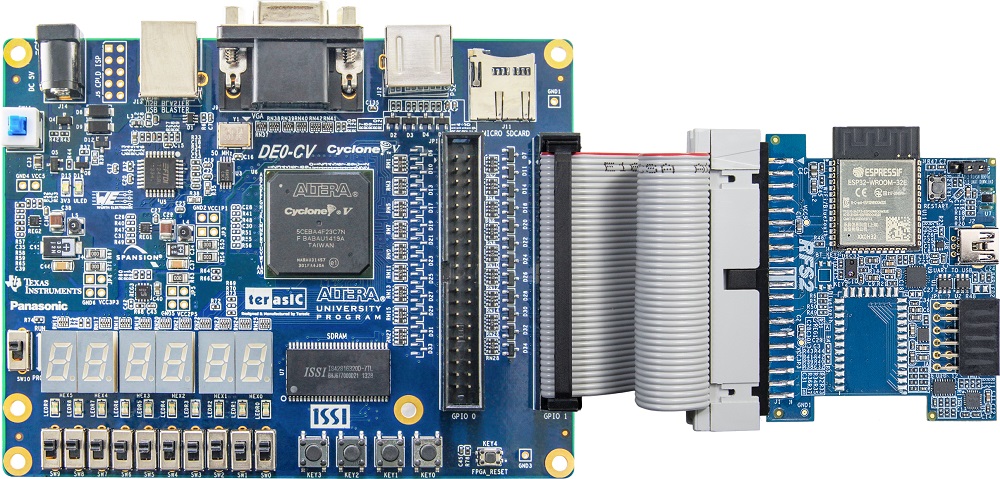

- Connect to the DE0-CV board

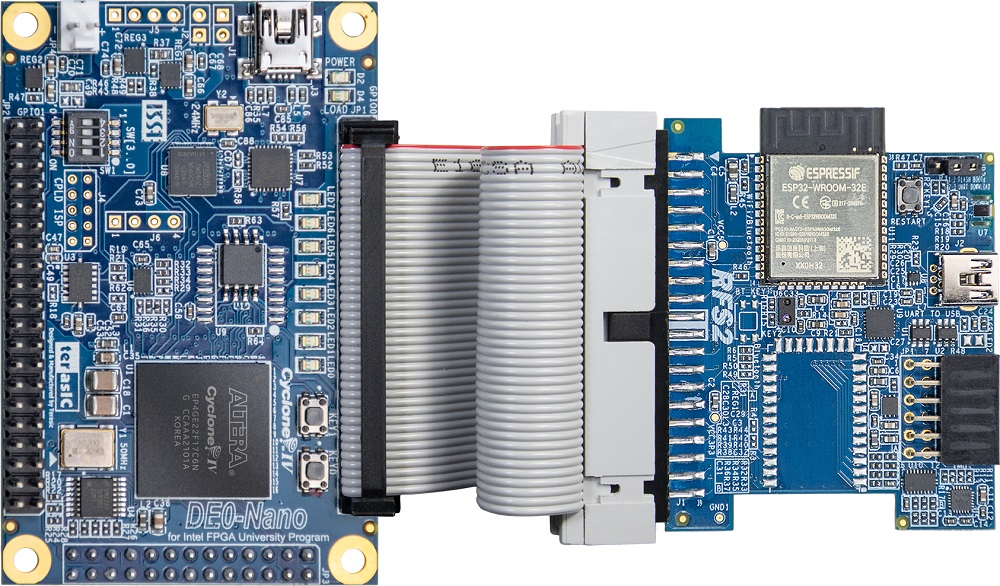

- Connect to the DE0-Nano board

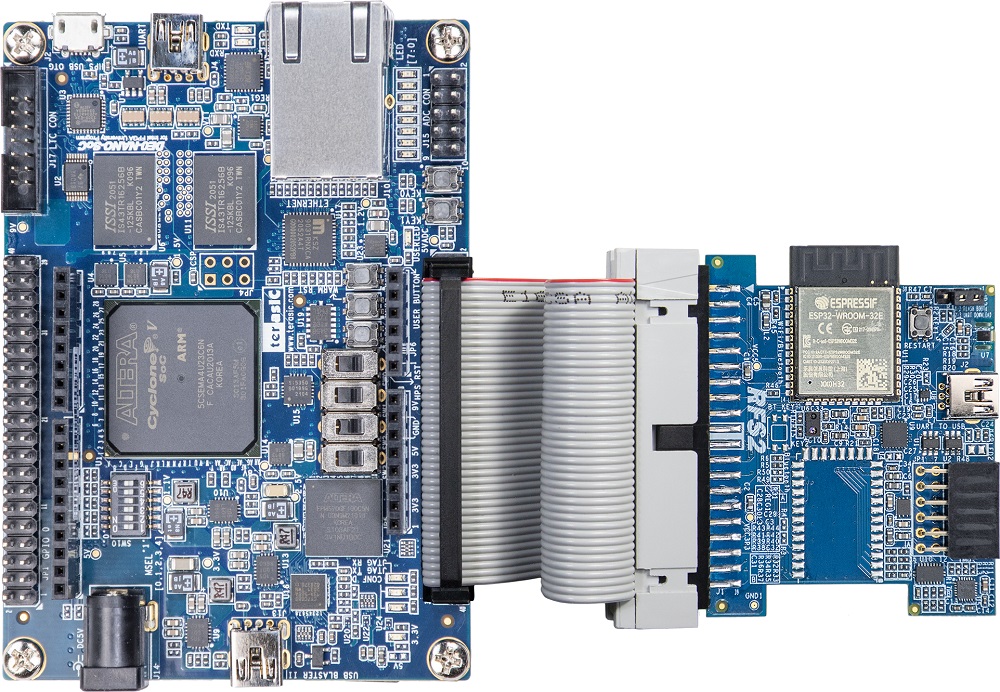

- Connect to the DE0-Nano-SoC board

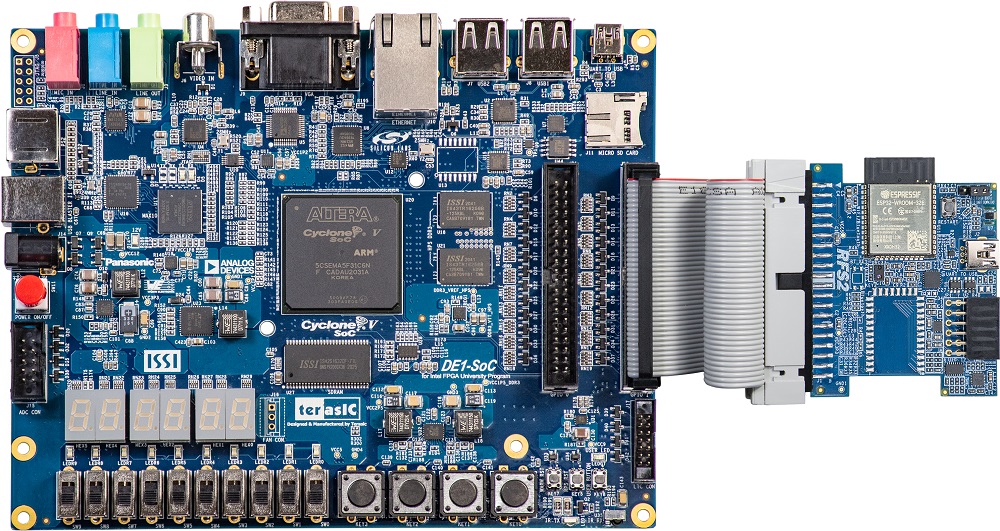

- Connect to the DE1-SoC motherboard

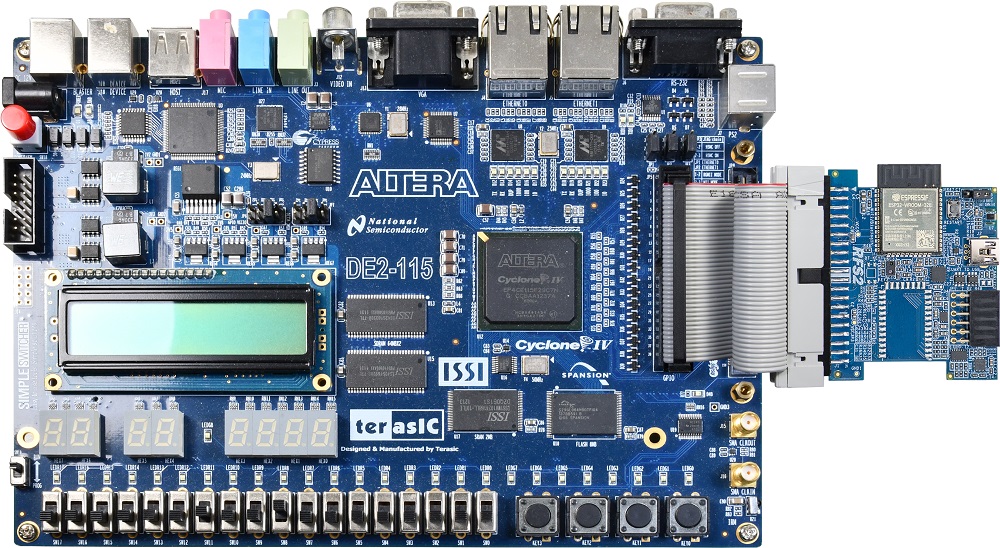

- Connect with the DE2-115 motherboard

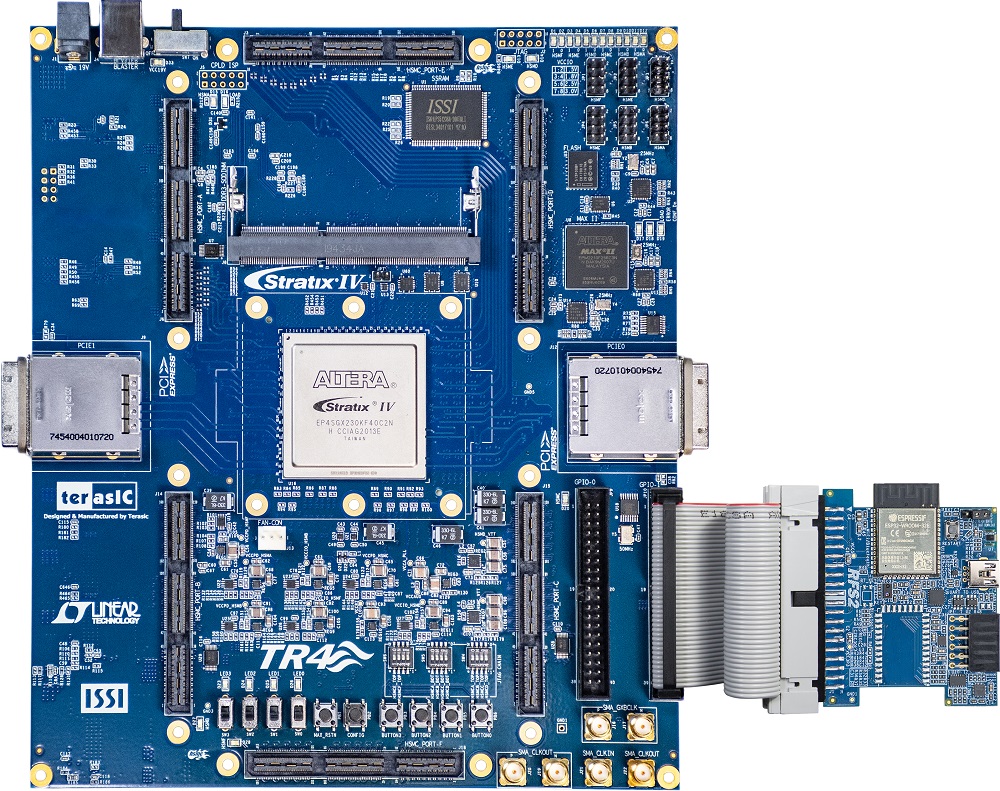

- Connect with the TR4 motherboard
