ADA

Highspeed AD/DA Card

  • Dual AD channels with 14-bit resolution and data rate up to 65 MSPS
  • Dual DA channels with 14-bit resolution and data rate up to 125 MSPS
  • Compatible with GPIO and HSMC interface
  • Clock sources include oscillator 100MHz, SMA for AD and DA each, and PLL from either HSMC or GPIO interface
  • Size:90.3*78.2 mm

Applications

  • Low cost oscilloscope and pattern generator
  • Communication Transceiver
  • Digital Signal Processing
  • Platform for various modulation techniques

Connectivity

There are two models available, ADA-GPIO and ADA-HSMC, which offer the compatibility of connection to DE1-SoC/DE2/DE1/DE0/DE2-70 and SoCKit/TR4/DE4/DE3/DE2-115/DE2i-150/Cyclone V Starter Kit/Cyclone III Starter Kit, respectively.

   ADA-GPIO Connectivity

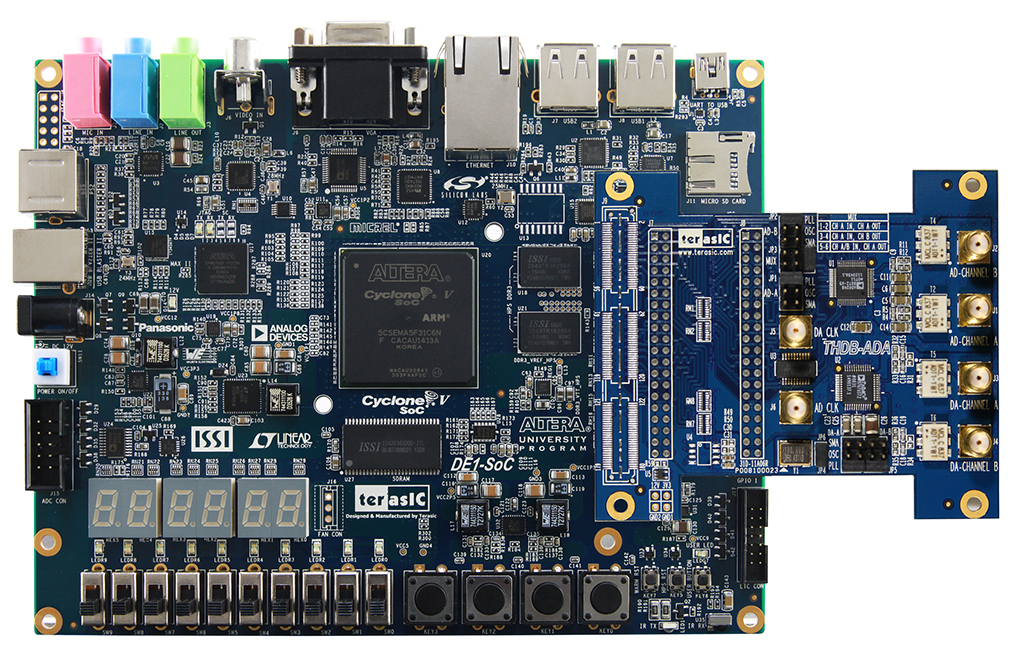

  • Connect ADA-GPIO with DE1-SoC

  • Connect ADA-GPIO with DE2-70



   ADA-HSMC Connectivity

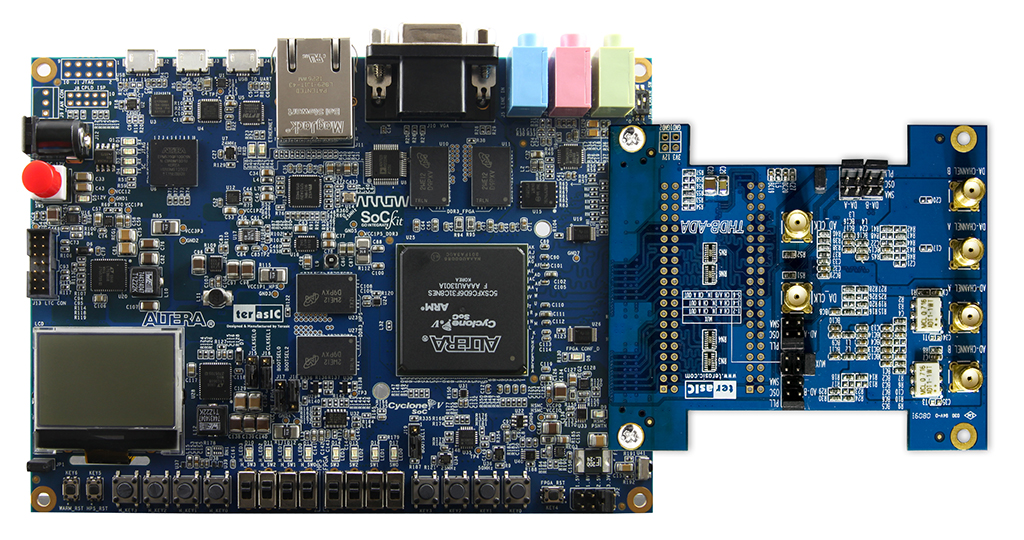

  • Connect ADA-HSMC with SoCKit (C5S)

  • Connect ADA-HSMC with Cyclone III Starter Kit



  • Connect ADA-HSMC with DE3
    Note. An adapter (SFF or HFF) is required to connect ADA-HSMC with DE3. It is bundled in DE3 kit.





  • Connect ADA-HSMC with DE4
    Note. An adapter (HMF2) is required to connect ADA-HSMC with DE4. It is bundled in DE4 kit.





  • Connect ADA-HSMC with DE2-115



  • Connect ADA-HSMC with DE2i-150


  • Connect ADA-HSMC with C5G(Cyclone V GX Starter Kit)



  • Connect ADA-HSMC with TR4
