Daughter Cards Video & Image 8 Mega Pixel Digital Camera Package with GPIO interface






D8M-GPIO

8 Mega Pixel Digital Camera Package with GPIO interface

Specifications

  • Package Interface: 2x20 GPIO with 3.3V I/O standard
  • MIPI Camera Module:
    • Chip P/N: OV8865
    • Color Filter Arrangement: Bayer Pattern
    • View Angel: 70 degrees
    • Lens Type: 1/3.2 inch
    • Pixels: 3264x2448 (8-megapixels)
    • Frame Rate: Maximal 60 frame per second at 1408 x 792 resolution
    • Support Focus Control
    • Interface: MIPI
  • MIPI Decoder:
    • Chip P/N: TC358748XBG
    • MIPI CSI-2 compliant
    • MIPI to Parallel Port Converter
    • Supports up to 4 data lanes
  • Package Size: 73.4x60.0 mm


Block Diagram

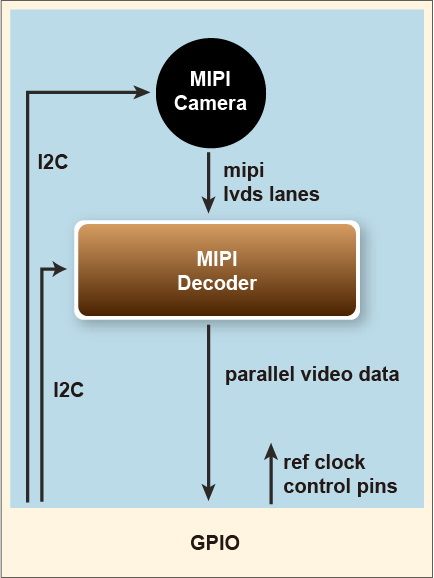

The functional block diagram of D8M-GPIO is shown above. MIPI Camera Module sends the video captured to the MIPI Decoder via MIPI link. MIPI Decoder converts MIPI Video Data to parallel data and output to the main board through a 2x20 pin GPIO connector. The parameters of the MIPI Camera Module and MIPI Decoder can be configured by FPGA via I2C interface. For instance, the number of output pixels from the MIPI Camera Modules, RGB gain, position of focus, PLL of MIPI Decoder, and parameters of Video MIPI Decoder etc.

Connectivity

The D8M-GPIO Package is designed for Altera DE serial FPGA board with a 2x20 GPIO expansion header.

  • Connect D8M-GPIO with DE2-115

  • Connect D8M-GPIO with DE1-SoC


  • Connect D8M-GPIO with DE0-CV


  • Connect D8M-GPIO with C5G





Overview Layout
