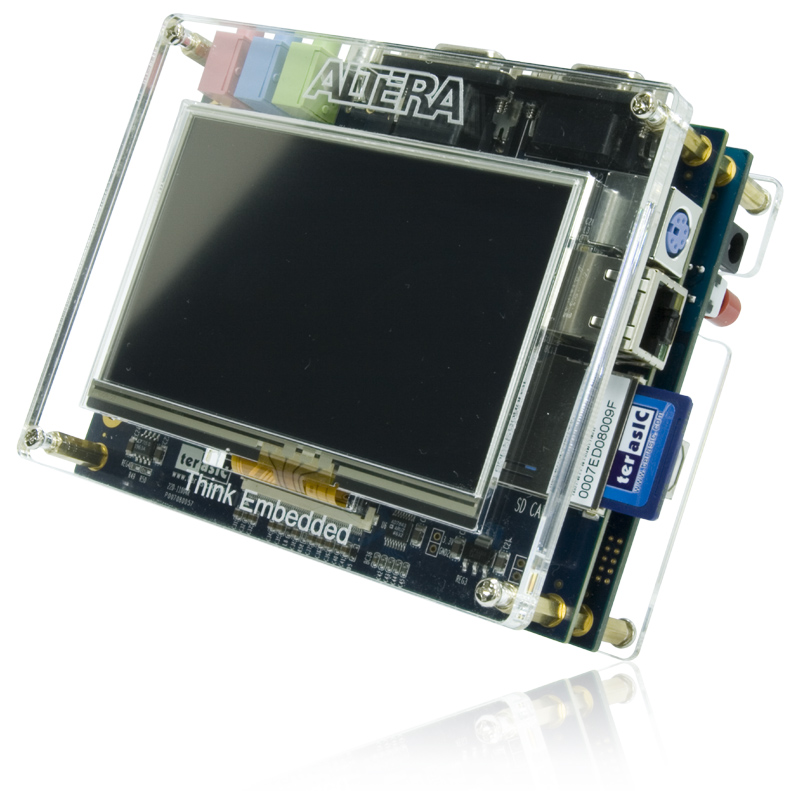

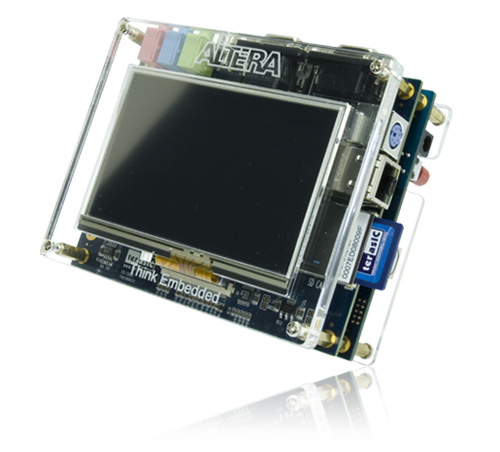

Nios II Embedded Evaluation Kit, Cyclone III Edition

Cyclone® III 版 Nios® II 嵌入式處理套件為嵌入式開發人員提供了一流的低成本評估平臺。軟體發展人員,特別是剛接觸 FPGA 設計的人員,可以免費安裝並評估 Nios II 嵌入式設計包 (EDS),此提供全方向嵌入式應用、完整的軟體發展資源。其更包含軟體教程和實例提供完整的原始碼,並介紹圖片查看器、網路伺服器、 C2H加速器和圖形等應用程式。

硬體工程師將發現:Altera 低成本、低功耗、高性能 Cyclone III FPGA 與 32 位 Nios II 嵌入式處理器相結合後,是作為嵌入式處理器或者微控制器的最適合之工具。

更多關於Altera Nios II 嵌入式評估套件
http://www.altera.com/products/devkits/altera/kit-cyc3-embedded.html

  • Development Kit Contents

    • The Nios II Evaluation Kit, Cyclone III Edition is composed of the Cyclone III FPGA Starter Kit and an LCD/VGA HSMC daughtercard and features:
    • Cyclone III Starter Board
      • Cyclone III EP3C25F324 FPGA
      • Configuration
        • Embedded USB-Blaster™ circuitry (includes an Altera EPM3128A CPLD) allowing download of FPGA configuration files via your USB port
      • Power and analog devices from Linear Technology
        • Switching power supply LTM4603EV-1
        • Switching and step-down regulators LTC3413, LT1959
      • Memory
        • 32 Mbytes of DDR SDRAM
        • 1 Mbyte of synchronous SRAM
        • 16 Mbytes of Intel P30/P33 flash
      • Clocking
        • 50-MHz on-board oscillator
      • Switches and indicators
        • Six push buttons total, four user controlled
        • Seven LEDs total, four user controlled
    • LCD daughtercard
      • Color LCD touch-screen display
        • 800 x 480 resolution
      • 24-bit CD-quality audio CODEC with line-in, line-out, and microphone-in jacks
      • 10/100 Ethernet physical layer/media access control (PHY/MAC)
      • Connectors
        • VGA output
        • Composite TV-in
        • Audio-out, audio-in, and microphone-in
        • Secure digital (SD) card
        • Serial connector (RS-232 DB9 port)
        • PS/2
        • Ethernet connector (RJ-45)
    • Nios II Evaluation Kit CD-ROM
      • Example applications
        • Application selector
        • Picture viewer
        • Mandelbrot acceleration with the Nios C2H compiler
        • Web server/remote FPGA configuration
      • Hardware tutorials
        • Create an FPGA design in one hour
        • Build a 32-bit soft processor system inside an FPGA
      • Software tutorials
        • My First Software Application
      • Complete documentation
        • Quick start guide
        • User guide
        • Reference manual
        • Board schematic, layout, and bill of materials
        • Product and partner information
    • Cables and accessories
      • 128-Mbyte SD card and USB-to-SD card adapter
      • USB cable
      • 9-V power supply
      • International power cords
      • Ethernet (RJ-45) cable (7 ft.)
      • Ethernet crossover adapter
    • Altera Complete Design Suite DVD (free):
