Introduction

This document describes how to run a demonstration built in the HERO platform, the demonstration deployed an object recognition application which used googlenet model (SSD - GoogleNetV2) through the HERO platform. The USB camera connected to the HERO platform provides the image source, the HERO platform can recognize the object in the input image, the result will be displayed on the application real-time. The label on the image will display the object’s name.

Figure 1-1 the image of the object recognition

Equipment Requirements

Operating the example in this chapter, the equipments and Settings are required as below:

• Hardware

• HERO Platform

• Mini USB Cable x1 (For FPGA configuration)

• USB webcam x1 (See Figure 1-2, for recognizing the images immediately)

• USB Mouse & Keyboard x1

• HDMI Monitor

• USB HUB (It is not neccessry. As shown in figure 1-3, there are only two USB ports in Host PC interface on HERO platform, but as shown in figure 1-4, this DEMO needs to use many USB devices, although not all of them need to be used at the same time, but a USB HUB can avoid repeatedly unplugging USB devices)

Figure 1-2 USB Webcam

Figure 1-3 USB ports in Host PC interface on HERO platform

Figure 1-4 Status of the USB connections in HERO Host PC

• Software

OpenVINO_Demo.tar.gz : The zip file for the example script. The user can download this file and copy it to the operating system desktop of the HERO platform under the link below.

Download link: http://mail.terasic.com.tw/~johnny/release/hero/OpenVINO_Demo.tar.gz[1]

Operating Steps

1.Follow steps 1 to 3 in the quick start guide to connect the HERO platform with a USB keyboard mouse, an HDMI display, and the 12V DC power supply.

2.Connect the FPGA accelerated USB Blaster II Port to the HERO's USB Port by using the Mini USB cable (see figure 1-5).

Figure 1-5 USB Blaster connection

3.Connect the USB webcam to the USB interface on the PC of HERO platform.

4.Turn on the FPGA power switch.

Figure 1-6 Turn on the HERO platform power switch

5. Open the Host PC motherboard power.

Figure 1-7 Open the Host PC motherboard power

6. Access the Ubuntu login, enter Intel123 as password.

7. When starting up completed, using a U-disk to copy the OpenVINO_Demo.tar.gz and paste it to the desktop, unzip the file.

Figure 1-8 Paste the Demo script onto the desktop and unzip it

8.The unzipped directory contains two script files. Download_bitstream.sh is the configuration file for the FPGA development kit. Openvino_fpga.sh is the script file to execute this example.

Figure 1-9 Demo Scripts

The project described in this chapter has been written to the hard disk as factory setting, and it is located in the path /home/data/hero-demo/. Users who are interested it can enter this path for the details.

Figure 1-10 Demo path

9. Open the Terminal to access the upzip directory (Path: ~/Desktop/OpenVINO_Demo).

Figure 1-11 Script Path

10.Enter the command: source download_bitstream.sh in the terminal, and the script will download the FPGA configuration file into the FPGA accelerator in the HERO platform.(Make sure that the Mini USB cable is connected as described in step 2 before downloading).

Figure 1-12 Execute the FPGA configuration script

See below Figure 1-13 for the downloading completed.

Figure 1-13 FPGA configuration successfully

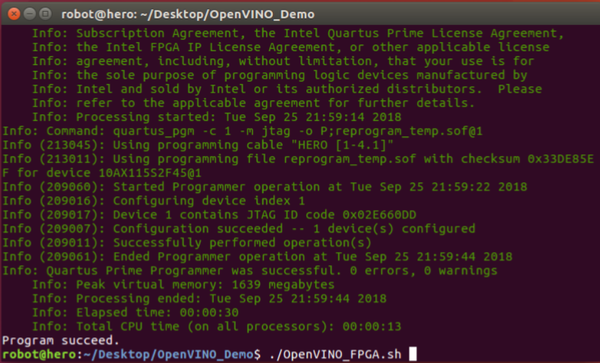

11. Continue to enter the command ./OpenVINO_FPGA.sh. It will to execute the demo script. (Please confirm that the usb camera has been connected correctly with the HERO before execution).

Figure 1-14 Execute the Demo script

12. When the DEMO is running, you can see an image window that shows a real-time image captured by the USB camera with the current speed of the FPS on running the DEMO.

Figure 1-15 The output result on the display window

Users can show the photos of cars or birds in front of camera. The system will immediately box out the specific objects and use label to identify object names, as shown in Figure. 1-16 and Figure. 1-17

Figure 1-16 Identify the bird

Figure 1-17 Identify the car

13. If close the demo, enter CTRL+C on the Terminal.
