子板 网路 SATA/SAS HSMC 子板






SATA

SATA/SAS HSMC 子板

产品规格

  • HSMC 界面
    • 8 段高速沟通接口支持 SATA/SAS 1.5Gbp, 3 Gbps 及 6Gbps 数据
    • 6 out-of-band signals 支援 4 线转接头
    • Dipswitch inputs on CMOS input section of HSMC
    • LED drive outputs for 16 bi-color LEDs (32接头)
  • SATA / SAS Single lane interface
    • Internal style vertical surface mount connectors
  • SATA / SAS 4 lane interface
    • Internal style 32 pin vertical surface mount connector
  • ATX power
    • Standard ATX 4 pin connector providing 1 Amp on both 12V and 5V power rails from host boards able to support current
  • 8 Kbit I2C EEPROM
  • Differential clocking for 150MHz and 300MHz reference clocks through the HSMC or SMA connectors
  • 尺寸:2mm x 3mm x 0.75mm (长 x 宽 x 高)

应用特色

  • 储存装置 (硬盘, optical drives, and solid-state disks)
  • PC’s
  • SOHO 储存
  • Set-top boxes
  • 适用在任何需要长时间储存的数据上

连接性

The SATA/SAS Daughter Card connects to the Arria II GX FPGA Development Kit


The SATA/SAS Daughter Card connects with Arria II GX FPGA Development Kit

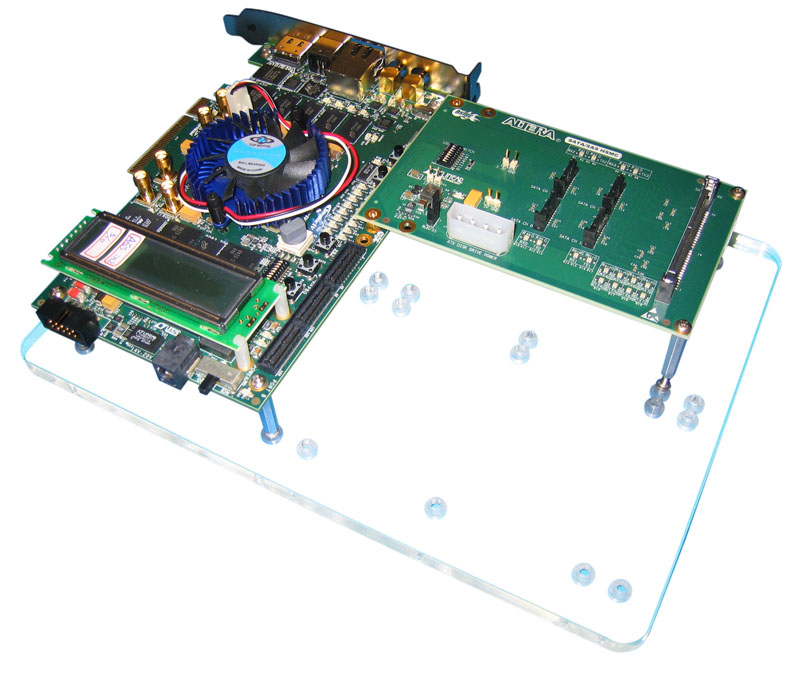

SATA/SAS HSMC Card connects to the Stratix IV GX FPGA Development Kit




SATA/SAS HSMC Card connection to the Stratix IV GX Development Board
