Phantom Ranch

• FPGA: Cyclone 10 GX 10CX220YU484I5G
• Form Factor: M.2 M-Key 2280
• Board Size: 22 mm x80 mm
• PCIe Gen2 x4
• 1GB DDR3, 32-bit data bus width
• User LED x2, User Button x1
• FPGA Configuration
  • JTAG Header
  • ASx4 Configure with 512Mbit QSPI Flash.
• Board Management System
  • Power/Temperature Monitor
  • Fan Control

Software Support

-- david 找intel 提供 --

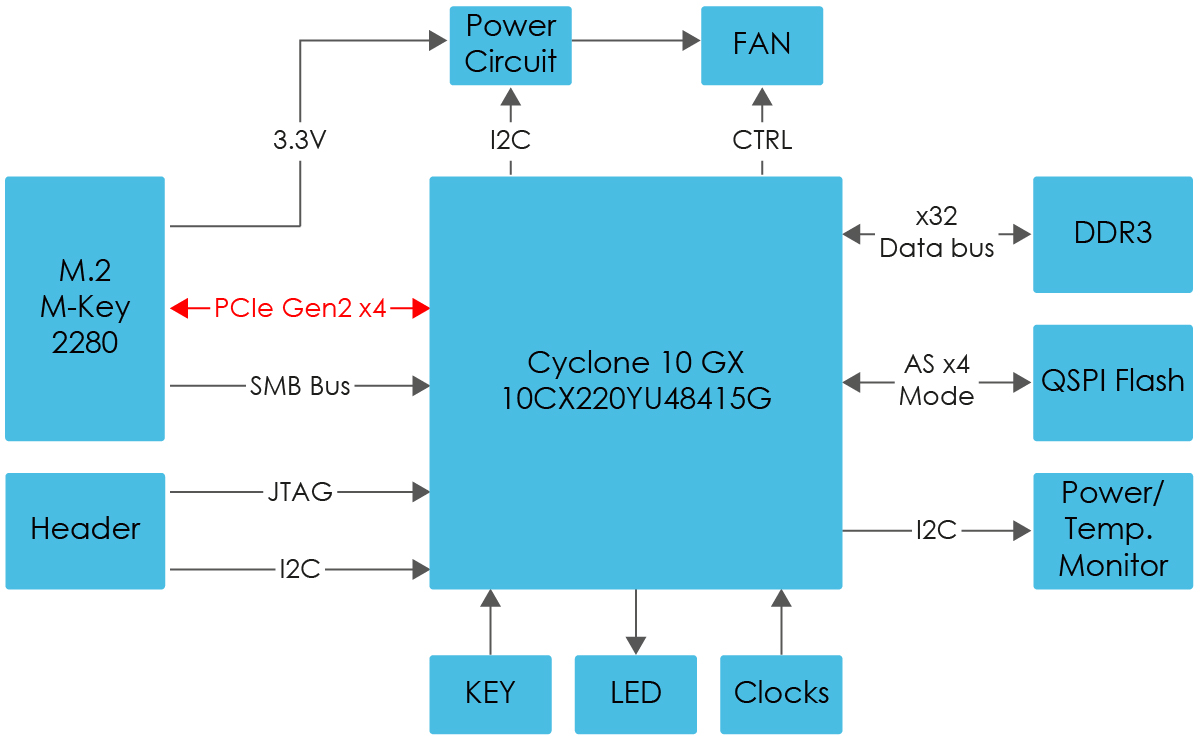

Block Diagram
