新聞訊息 Altera Cyclone III FPGA Starter Kit


Altera Cyclone III FPGA Starter Kit



Altera Cyclone® III FPGA 開發板簡易使用的優勢是初學者學習與應用 FPGA 相關主題的理想入門套件,而有經驗的 FPGA 設計工程師更可以體驗到此 Cyclone III FPGA 所建立的系統比其競爭方案之性能上平均高出 60%、功耗平均要低於 50%。 因為此 Altera Cyclone® III FPGA 開發板可結合 Altera 的 32 位 Nios II 嵌入式處理器知識產權 (IP) 內核,所以非常適合實現嵌入式處理器或微控制器。

市場上首款的低成本 FPGA 開發版,充分發揮了 65 奈米製程科技的低成本和低功耗優勢,Cyclone® III FPGA 開發版使用者更可享受此套件所提供的立即可用設計實例。
Altera Cyclone® III FPGA 開發板套件包括:

  • 採用 EP3C25、符合有害物質限制 (RoHS) 條例的電路板
  • 使用方便的 FPGA 設計軟件,以及完整的 32 位微處理器設計包。
  • 完整的文檔
  • 電纜和電源

更多關於Altera Cyclone® III FPGA 開發板套件

Development Kit Contents

The Cyclone II FPGA Starter Development Kit is RoHS compliant and features:

  *Power Solution for Altera FPGAs

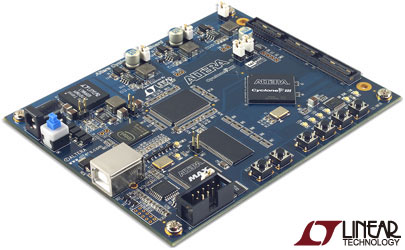

  • Cyclone III Starter Board
    • Cyclone III EP3C25F324 FPGA
    • Configuration
      • Embedded USB-Blaster™ circuitry (includes an Altera EPM3128A CPLD) allowing download of FPGA configuration files via the users USB port
    • Power and analog devices from Linear Technology
      • Switching power supply LTM4603EV-1
      • Switching and step-down regulators LTC3413, LT1959
    • Memory
      • 256-Mbit DDR SDRAM
      • 1-Mbyte Synchronous SRAM
      • 16-Mbytes Intel®  P30/P33 flash
    • Clocking
      • 50-MHz on-board oscillator
    • Switches and indicators
      • Six push buttons total, 4 user controlled
      • Seven LEDs total, 4 user controlled
    • Connectors
      • High-Speed Mezzanine Connector (HSMC)
        • Supporting 13 user controlled LVDS I/O channels and associated control signals
      • USB type B
    • Cables and power
      • USB cable
      • External power supply (U.S. compatible plug with EU and UK adaptors)
  • Cyclone III FPGA Starter Kit CD-ROM
    • Example designs targeting the Cyclone III FPGA Starter Board
      • Create an FPGA design in one hour
      • Power measurements of a Cyclone III FPGA
      • A 32-bit soft processor system inside an FPGA
    • Complete documentation
      • User guide
      • Reference manual
      • Board schematic and layout
      • Bill of Materials
      • Product and partner information
  • Download instructions to receive the latest version of the following software (at no charge):
    • Quartus®  II Web Edition (FPGA design software)
    • ModelSim® -Altera®  Web Edition (FPGA simulation software from ModelSim)
    • Nios II Embedded Design Suite, Evaluation Edition (32-bit microprocessor software)
  • Size:125*100 mm
