SoC 平台 Arria HAN Pilot Platform






HAN

HAN Pilot Platform

The HAN Pilot Platform has many features that allow users to implement a wide range of high performance designed circuits.The following hardware is provided on the board:

FPGA Device

  • Intel ® Arria10® SoC 10AS066K3F40E2SG device (660K LEs)
  • USB-Blaster II onboard for programming; JTAG Mode
  • Serial configuration device – EPCQL1024
  • One DDR4 SO-DIMM Socket, support ECC
  • On-board 1GB DDR4-2400, 32-bit data width
  • USB Type-C Interface
    • Power Delivery
    • DisplayPort TX/RX with 4 lanes
    • USB 3.0/2.0
  • HDMI TX 2.0 for 4K2K@60- FPGA Transceiver
  • PCIe Cabling Socket at Gen3 x4
  • SFP+ Socket x4, 40Gbps
  • SATA 3.0 Host and SATA Device x2 (SATA Connector x4)
  • One Gigabit Ethernet Port
  • SMA Clock-In and Clock-Out
  • High Pin Count FMC Connector. Support VADJ 1.2V/1.5V/1.8V.
  • Accelerometer, Gyroscope and Magnetometer
  • Temperature Sensor
  • Fan Control
  • LED x2, KEY x2, Switch x2, 7-Segment x2

HPS (Hard Processor System)

  • 1.5GHz Dual-core ARM Cortex-A9 processor
  • Boost Flash Slot:
    • 1024 Mb QSPI Flash
    • Nand Flash
    • MicroSD Socket
  • On-board 1GB DDR4-2400, 32-bit data width
  • 1 Gigabit Ethernet PHY with RJ45 connector
  • USB OTG Port, USB mini-AB connector
  • UART to USB, USB Mini-B connector
  • RTC
  • One user button and one user LED
  • Warm reset button and cold reset button

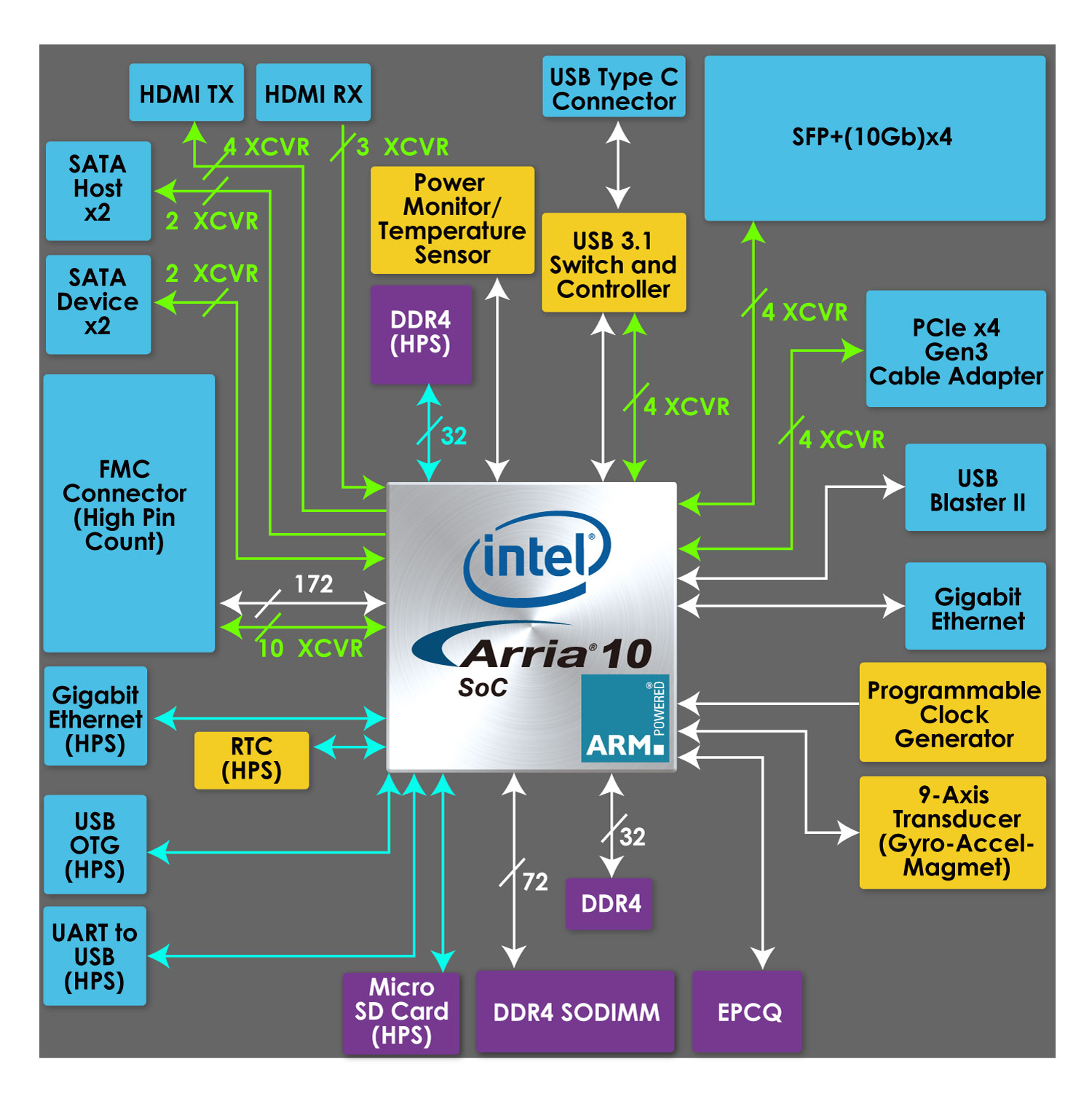

Block Diagram:

Memory Sockets

In addition to DDR4 Sodimm, it also compatible with Terasic QDRII+ Memory Module.

  • DDR4 Sodimm Memory Module Installed



  • QDRII+ Memory Module Installed

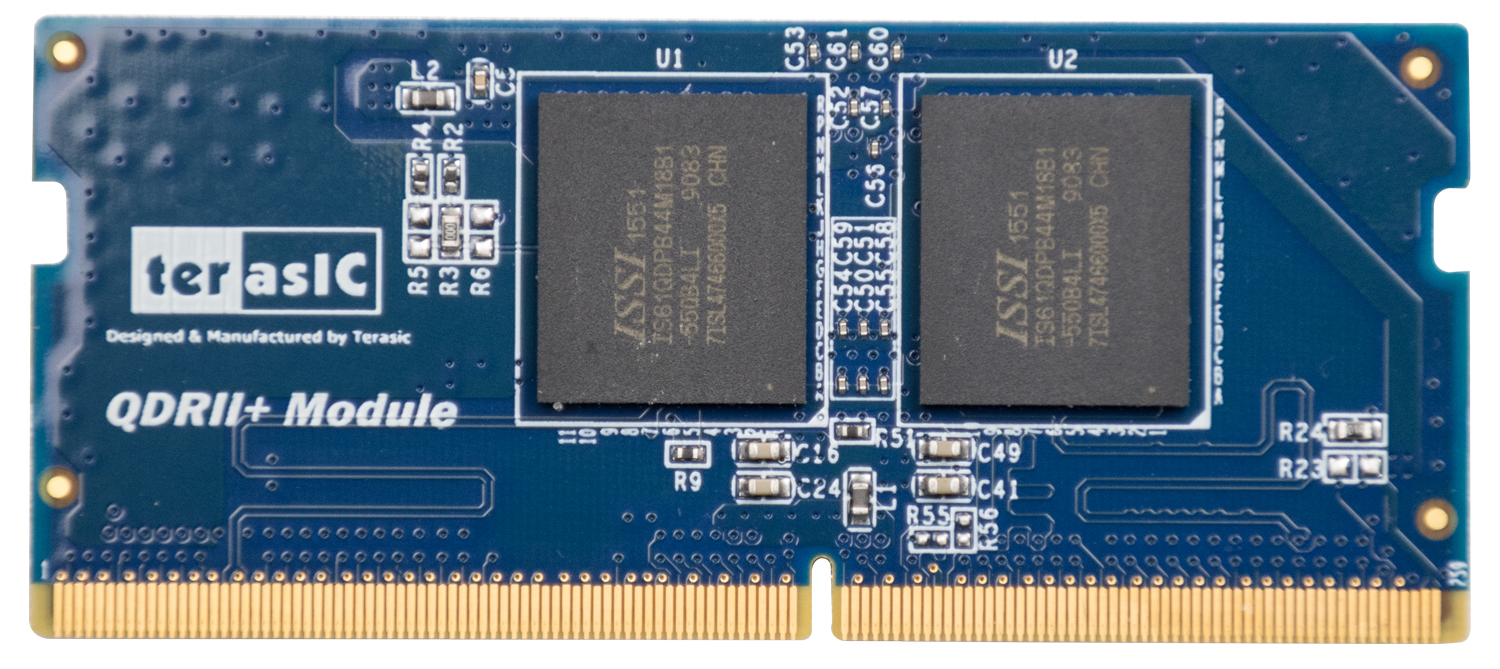

  • QDRII+ SODIMM Module
    • Total 144Mb(18MB) for two chips

    • 36-bit data width

    • 550 MHz



FMC Connectivity

  • Connect XTS-FMC



  • Connect D8M-FMC



  • Connect 12G SDI-FMC



  • Connect HDMI-FMC



  • Connect TI JESD Board
