子板 多媒體 12G SDI-FMC Daughter Card






SDI-FMC

12G SDI-FMC Daughter Card

Features

  • Two 12G SDI independent inputs and outputs
  • Two 3G SDI connectors as inputs or outputs
  • Two AES independent inputs and outputs
  • Clock Generators
  • FMC Interface (VADJ 1.2V~3.3V)

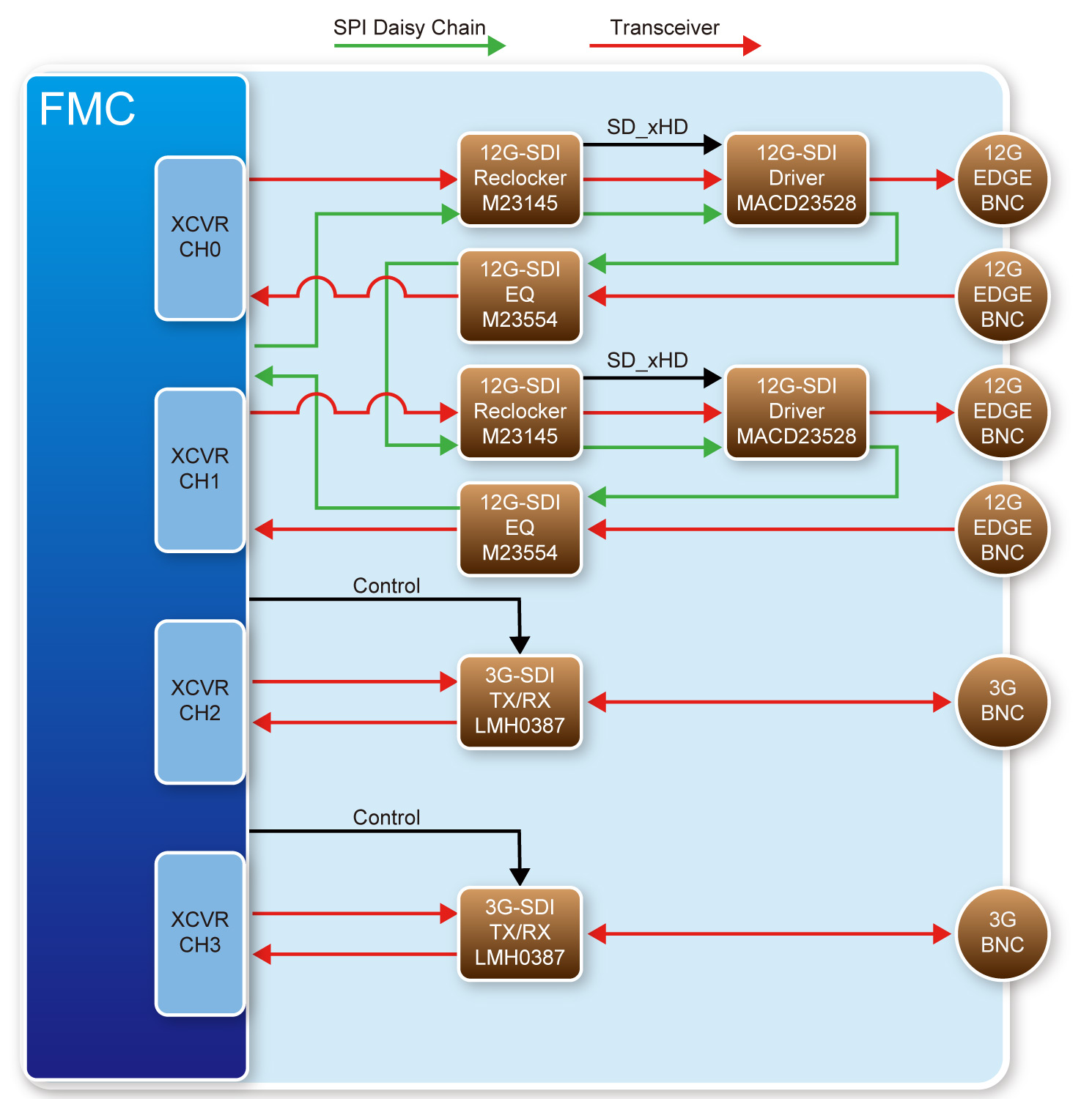

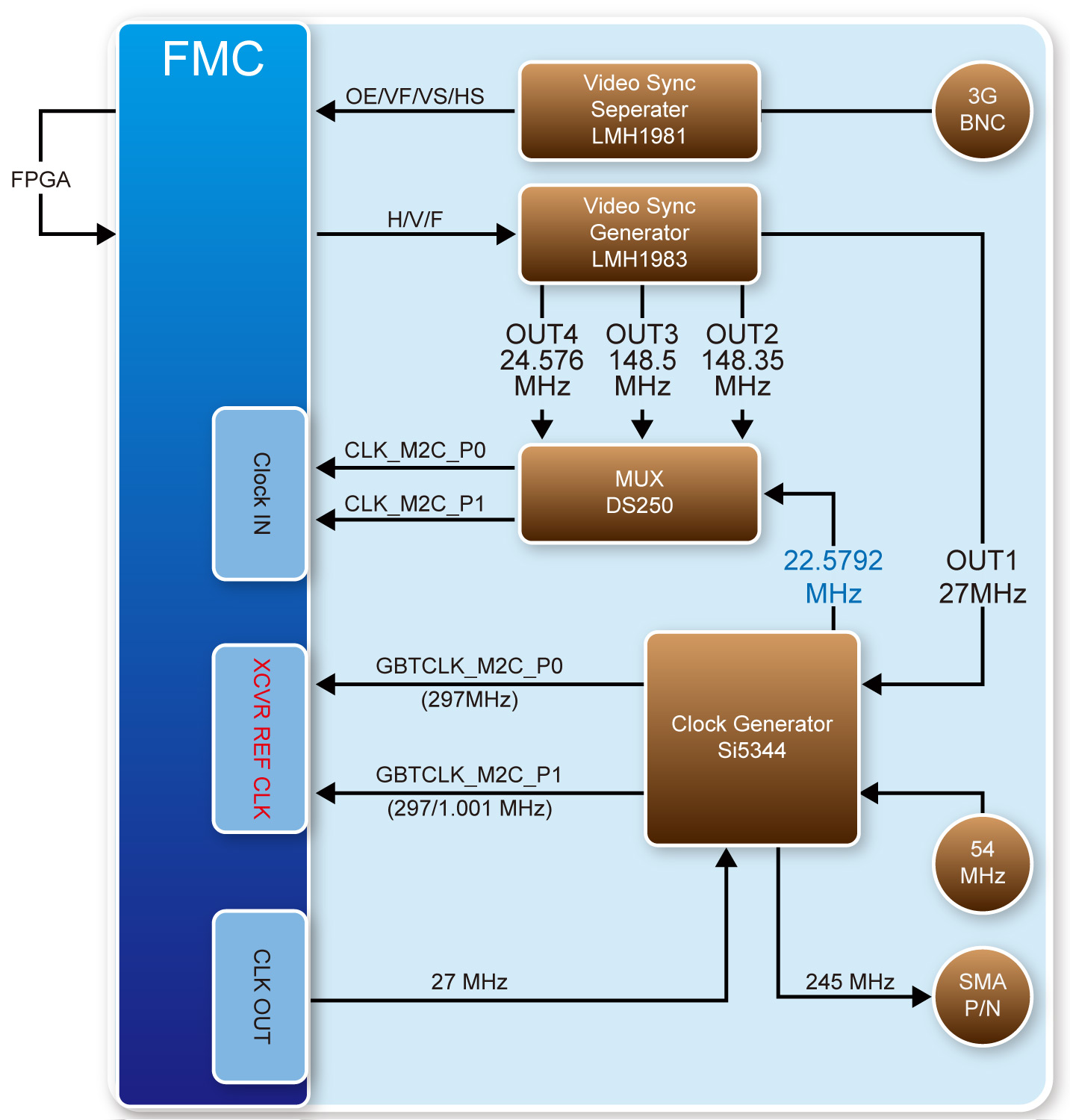

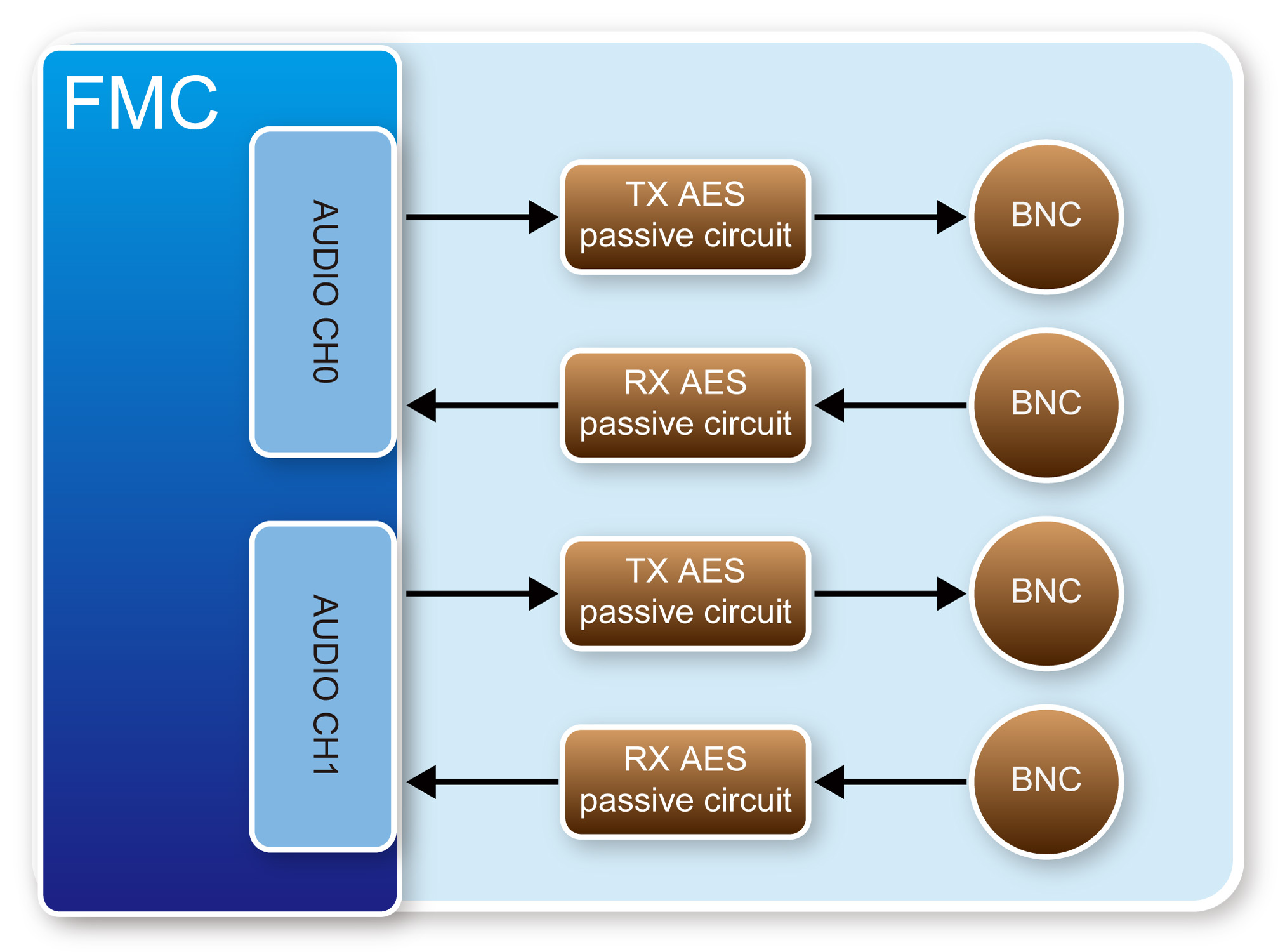

Block Diagram




Connectivity

  • The SDI-FMC Card connects with Altera A10SoC FPGA Board

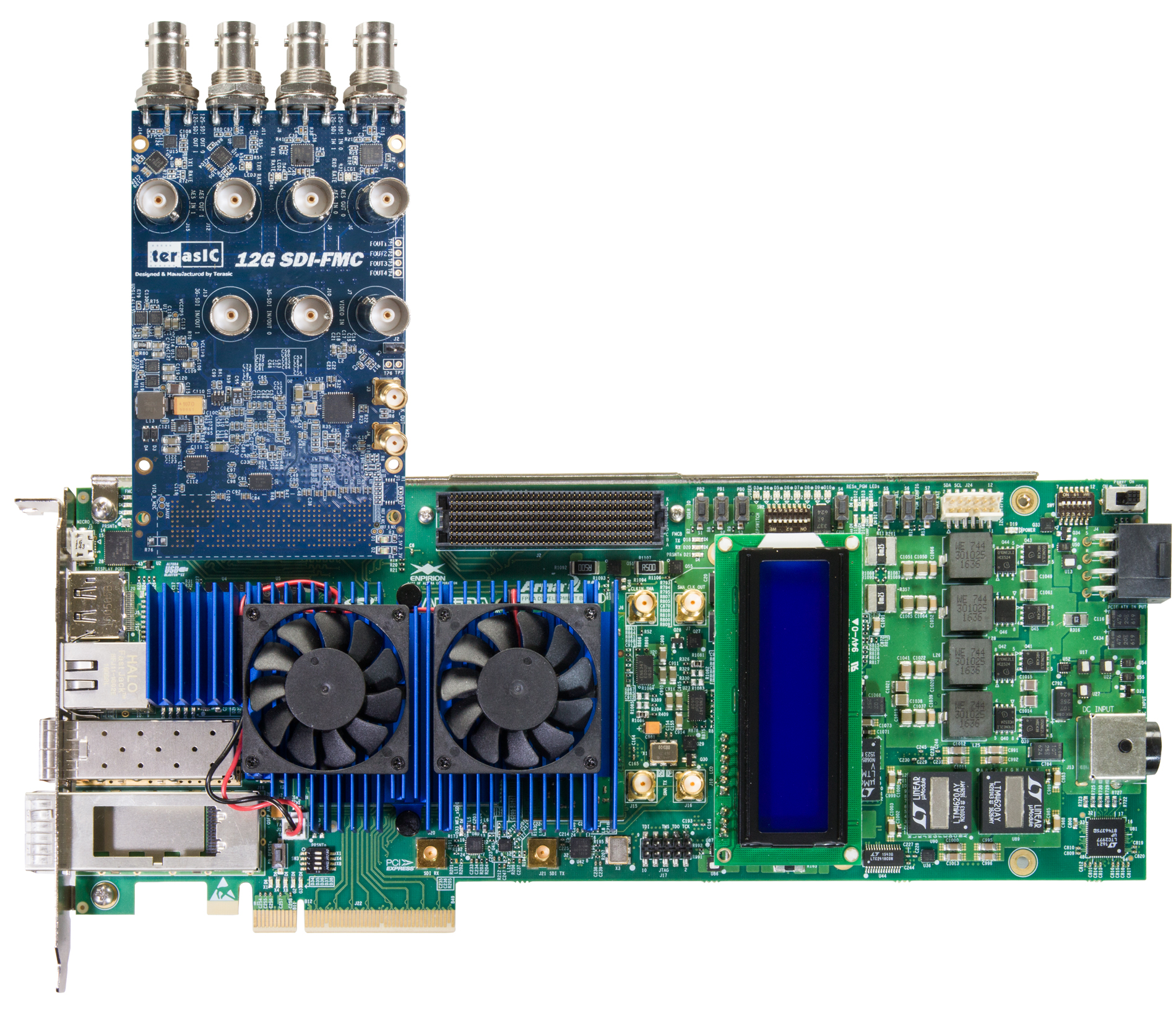

  • The SDI-FMC Card connects with Altera A10GFP FPGA Board



產品櫥窗 元件配置
