HDMI_RX_HSMC 是帶有 HSMC (High Speed Mezzanine Connector) 介面的 HDMI 資料接收子板,子板包含如下豐富特性:
- One HSMC interface for connection purpose
- One HDMI receiver with dual receiving ports
- Two 2K EEPROM for storing EDID of two receiver ports separately
- Powered from 3.3V and 12V pins of HSMC connector

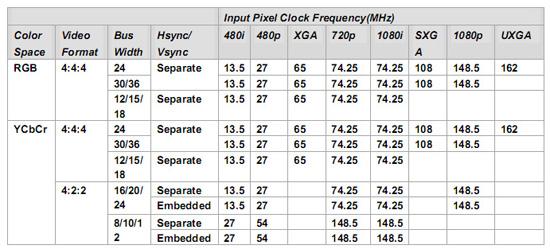

相容 HDMI 1.3a, HDCP 1.2, and DVI 1.0 的規格。支援如下影像輸入格式:

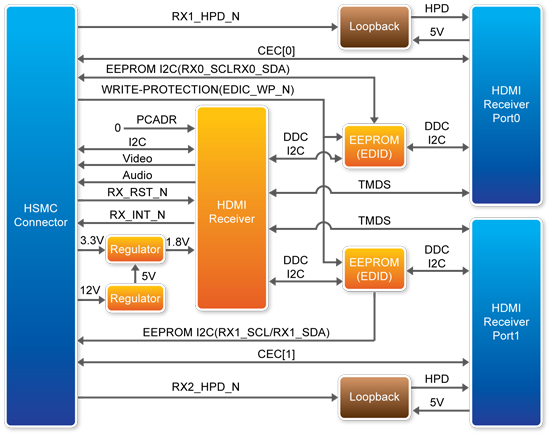

功能方框圖
連接性

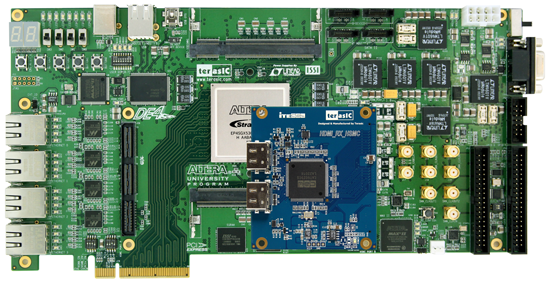

HDMI_RX_HSMC 與 DE4
連接示意圖

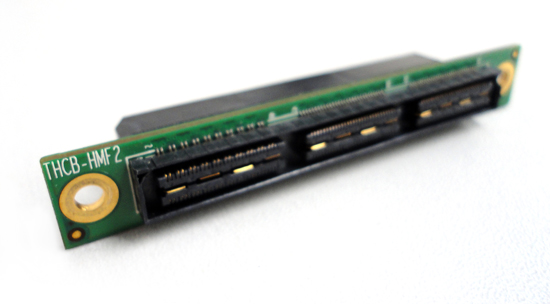

注意:連接 HDMI_RX_HSMC 與 DE4 需要使用 THCB-HMF2 子卡,如下圖所示:
參考設計
HDMI_TX_HSMC 與 HDMI_RX_HSMC Loopback 示例
此參考設計直接把 HDMI_RX_HSMC 子板接收的聲音和影像信號直接內部旁路輸出到 HDMI_TX_HSMC 子板,並輸出到 HDMI 顯示器:
