配件 Extras Timing and UART Board






TUB

Timing and UART Board

  • Clock Transmission:
    • Two SMA for receiving 1PPS and 10MHz clocks
    • Ten Jumpers to specify 1PPS and 10MHz clock I/O standard
    • Output 1.8V 1PPS and 10MHz clocks to four 2x5 expansion headers

  • UART Communication:
    • Single USB to four UART chip FT4232H
    • One USB Type-B connector
    • Four pairs UART TX and RX signals are connected to the four 2x5 expansion headers

  • Power:
    • Supplied from the first pin of the 2x5 expansion header

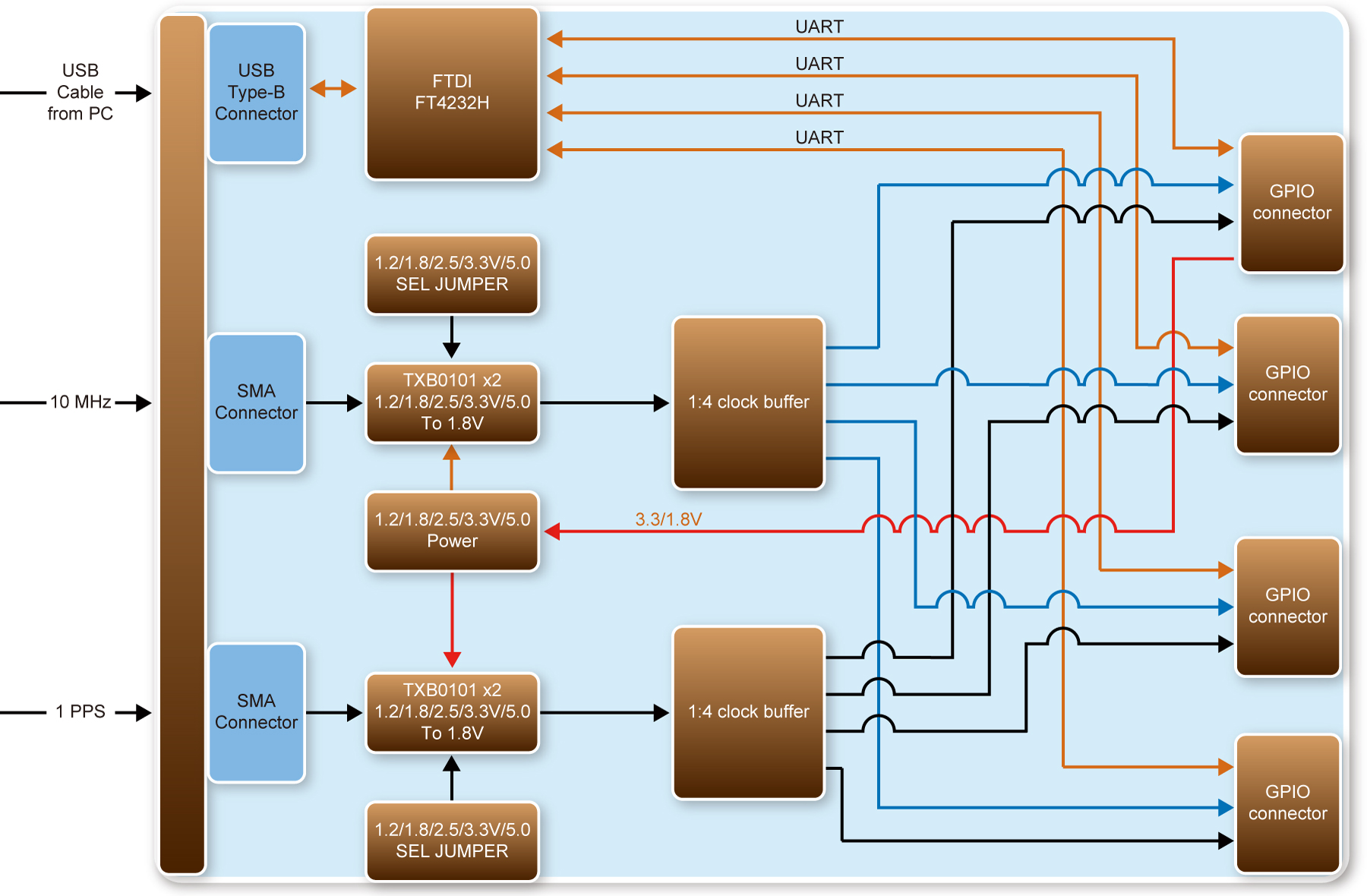

  • Block Diagram
