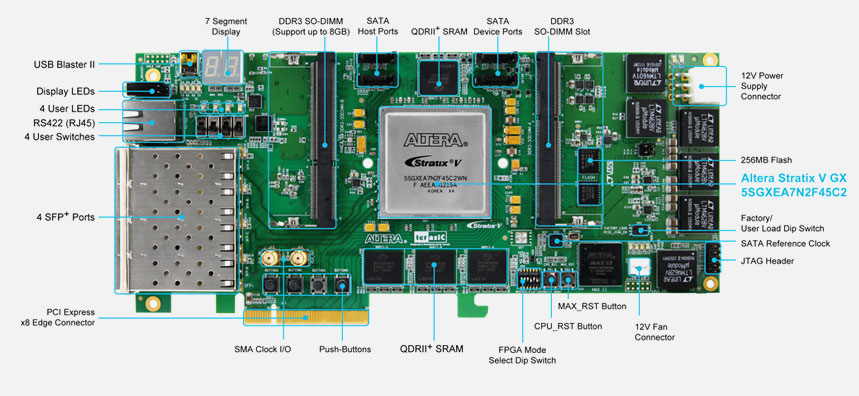

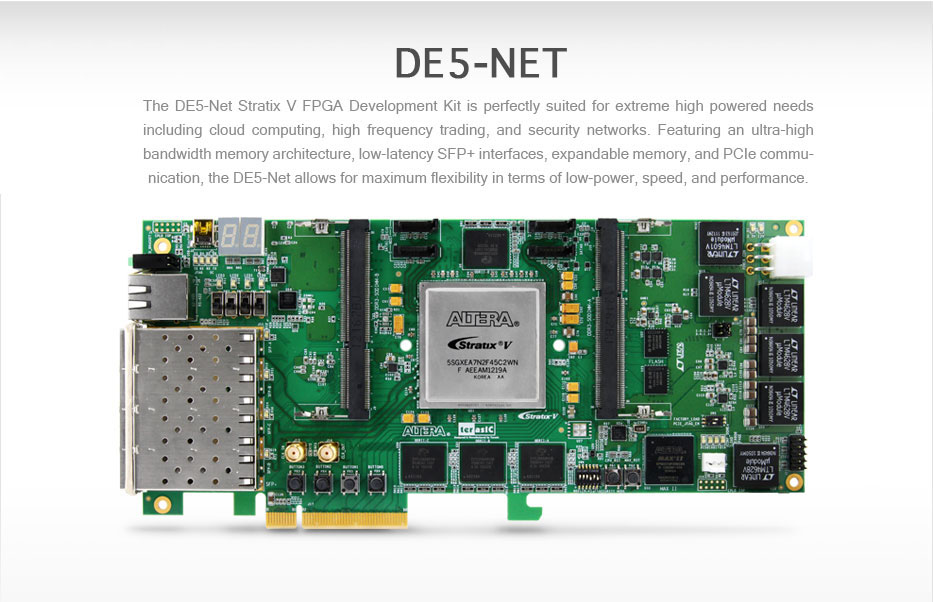

Layout
Specification
FPGA
Altera Stratix® V GX FPGA (5SGXEA7N2F45C2)
FPGA Configuration
On-Board USB Blaster II or JTAG header for FPGA programming
Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory
General user input / output:
4 LEDs
1 LED Array
4 push-buttons
4 slide switches
2 seven-segment displays
On-Board Clock
50MHz Oscillator
Programmable oscillators Si570, CDCM61001 and CDCM61004
Memory
DDR3 SO-DIMM SDRAM
QDRII+ SRAM
FLASH
Communication Ports

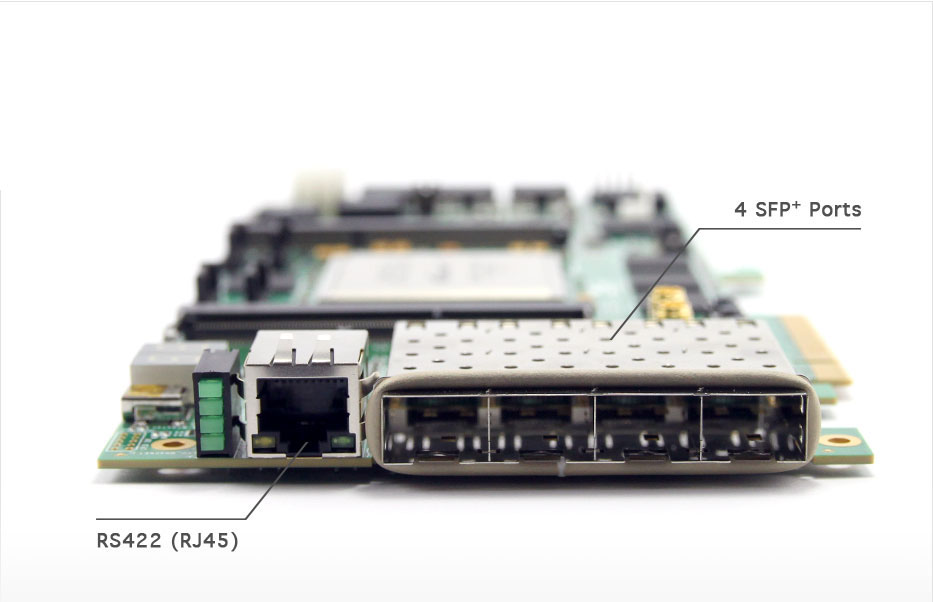

Four SFP+ connectors
Two Serial ATA host ports
Two Serial ATA device ports
PCI Express (PCIe) x8 edge connector
One RS422 transceiver with RJ45 connector
System Monitor and Control
Temperature sensor
Fan control

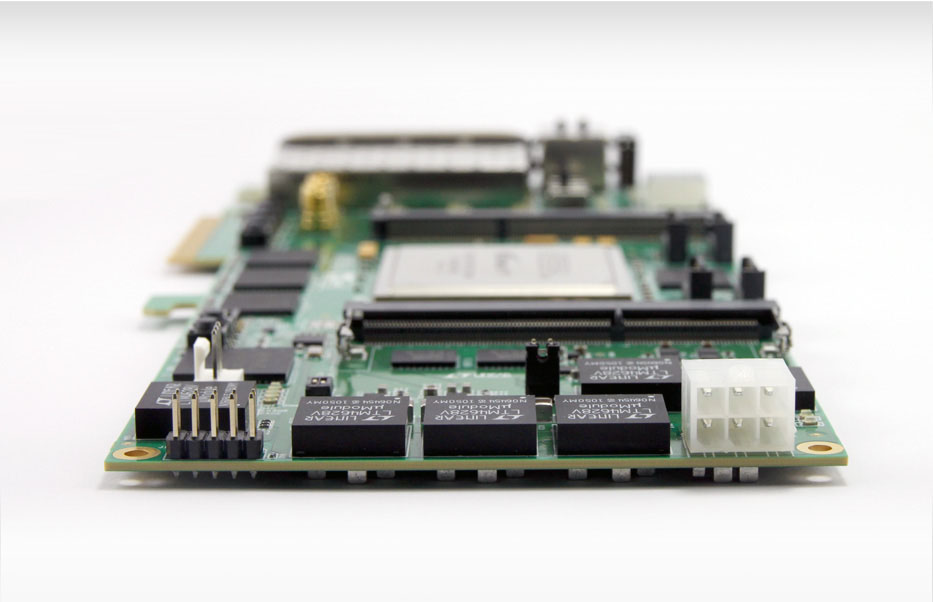

Power
PCI Express 6-pin power connector, 12V DC Input
PCI Express edge connector power

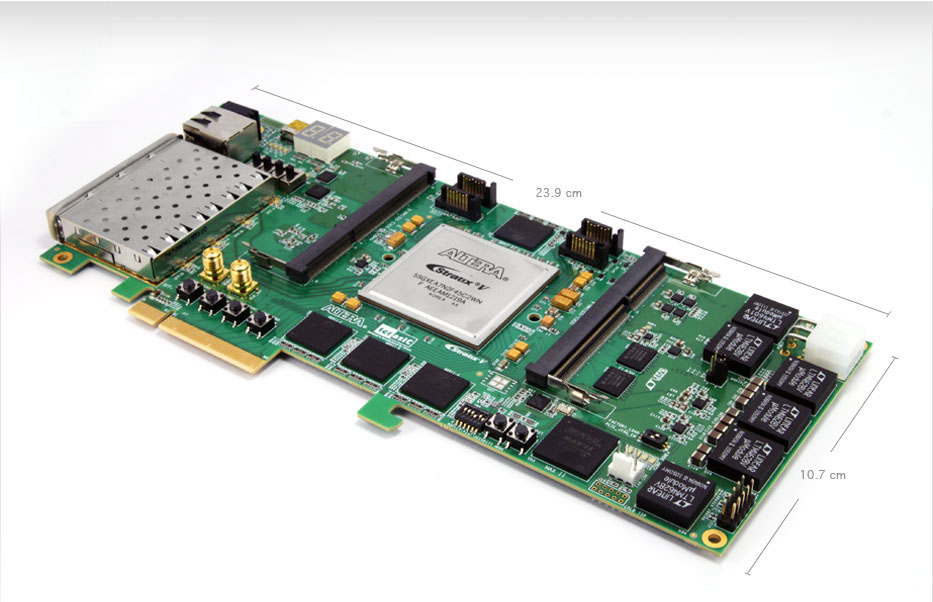

Mechanical Specification
PCI Express standard height and 3/4-length
PCI Express edge connector power
