This demonstration uses the Intel® FPGA HDMI IP core to implement the HDMI Retransmit function in the FPGA of the DE10-Advanced. As shown in Figure 1-1, User can connect an HDMI video player to the to input video and audio data to HDMI RX port of the DE10-Advanced. After the HDMI video data is received in the FPGA, it will be instantly transferred to the HDMI TX port. The user only needs to connect an HDMI screen to the DE10-advaned. User only needs to connect an HDMI screen to the DE10-advanced, then you can watch the images output by the HDMI Player. This demonstration supports image resolution up to 4K60P. If you want to learn HDMI high-performance related image processing, this demo can help you learn quickly.

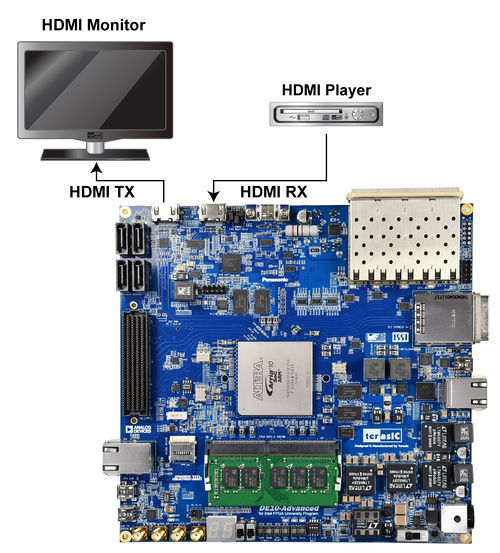

DE10-Advanced revc demo hdmi tx rx 4k 1-1.jpg

Figure 1-1 The Architecture of the demonstration

Contents

System Block Diagram

Figure 1-2 shows the system block diagram of this example. It shows that the Intel® FPGA HDMI IP core is used in the FPGA. It is divided into two parts: Transmitter and Receiver. These two IPs can be directly used by Transition-minimized differential signaling (TMDS) interface connection, only need HDMI repeater or redrive IC as an intermediary to connect HDMI devices, no need to use special HDMI Transmitter and Receiver IC. For details about HDMI IP, please refer to HDMI Intel® FPGA IP User Guide and Intel FPGA HDMI Design Example User Guide for Intel Arria 10 Devices.

DE10-Advanced revc demo hdmi tx rx 4k bd.jpg

Figure 1-2 The system block of the demonstration

This demonstration first needs to connect the DE10-Advanced to the HDMI interface screen. Because this demo can support various screen resolutions. When the DE10-Advanced connect to the monitor, the HDMI RX block in the FPGA will first read the supporting resolution of the monitor from the it's EDID and stored in the EDID RAM in the HDMI RX block. The NIOS handles the control signals between the EDID and the HDMI IP in this demo.

The HDMI Video player is then connected to the HDMI RX port of the DE10-Advanced. When the RX instance in the FPGA receives a video source from the external video generator, the video and audio data then goes through a loopback FIFO before it is transmitted to the TX instance. The final image and sound data will be displayed on the monitor connected to the TX end. For a more detailed IP block diagram in the example, refer to Figure 1-3.

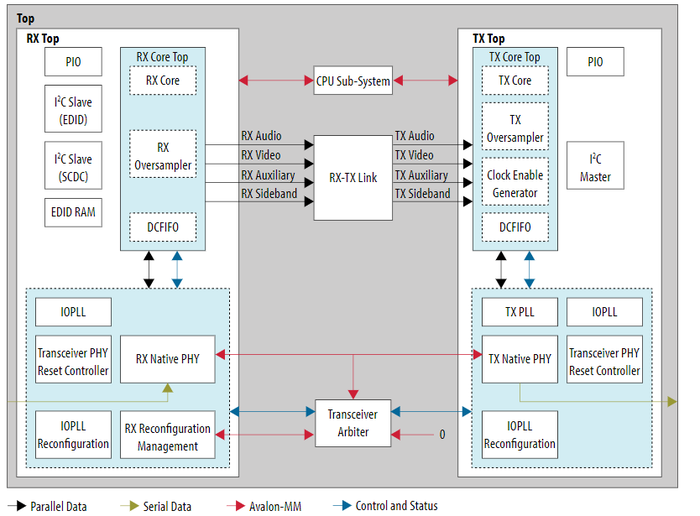

DE10-Advanced revc demo hdmi tx rx 4k ip block.png

Figure 1-3 The HDMI IP block of the demonstration

Demonstration Source Code

Projet Loacation : System CD\Demonstration\FPGA\HDMI_RX_TX\

  • Quartus Project directory: HDMI_RX_TX\quartus\
  • Nios II Eclipse: HDMI_RX_TX\software\
  • Demonstration Batch File:
    Demo Batch File Folder: HDMI_RX_TX\demo_batch\
    The demo batch file includes following files:
    • Batch File for USB-Blaseter II: test.bat, test.sh
    • FPGA Configure File: a10_hdmi2_demo.sof
    • Nios II Program: HDMI_TX_RX.elf

Hardware Requirement

  • a PC
  • An HDMI monitor capable of displaying 4K/60P
  • An HDMI video player capable of outputting 4K/60P resolution

Demonstration Setup

  1. Make sure Quartus Prime and Nios II are installed on your PC.
  2. Connect a HDMI monitor to the DE10-Advanced as shown in Figure 1-4.
    DE10-Advanced revc demo hdmi tx rx 4k tx set.jpg
    Figure 1-4 Connection setup of the HDMI TX monitor and DE10-Advanced
  3. Connect the USB Blaster II port on the DE10-Advanced to the computer using the usb cable (do not connect the HDMI video player at this time).
  4. Open DE10-Advanced power and execute demo batch file : test.bat
  5. Waiting for FPGA code download completed
  6. First set the output resolution of the HDMI video plalyer to 4K@60Hz and connect to the HDMI RX port of DE10-Advanced as shown in Figure 1-5
    DE10-Advanced revc demo hdmi tx rx 4k 1-1.jpg
    Figure 1-5 Connection setup of the HDMI Video Player and DE10-Advanced
  7. Oberve the Nios command shell window(See Figure 1-6), whether the Pixel rate is around 297000 (the value when the resolution is 4K).

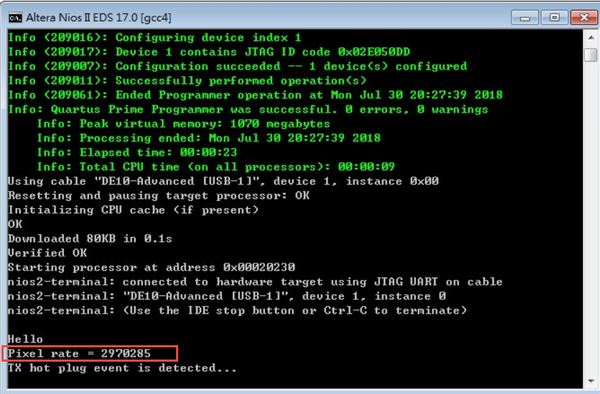

    DE10-Advanced revc demo hdmi tx rx 4k check pxiel.png
    Figure 1-6 Verify the pixel rate of the demonstration
  8. Check if the resolution of the HDMI monitor is 4K/60P. If the monitor cannot support 4K resolution, some HDMI video players will automatically switch to full HD or lower resolution.If the HDMI video player cannot automatically switch , please manually switch to the resolution that monitor can support.
