FLIK

FLIK

FPGA

  • Intel ® Arria 10 GX FPGA (10AX115N3F40E2SG)

FPGA Configuration

  • On-Board USB Blaster II via Thunderbolt 3 Port
  • AS Mode (QSPI Flash) configuration

Memory

  • Two Independent DDR4 x 64 banks, 4GB 1066MHz for each.
  • 1024Mb QSPI Flash

Communication

  • Thunderbolt 3 Port x1
  • PCIe Gen3x4 via Thunderbolt 3 Port
  • USB Blaster II port via Thunderbolt 3 Port

System Monitor and Control

  • FPGA Temperature Monitor
  • Board Temperature Monitor
  • Power Monitor
  • Auto Fan Speed Control
  • Auto Shutdown when temperature or power are abnormal.
  • LED Indication

Power Source

  • 12V DC

Software Package

  • OpenVINO BSP
  • OpenCL BSP
  • RTL Examples

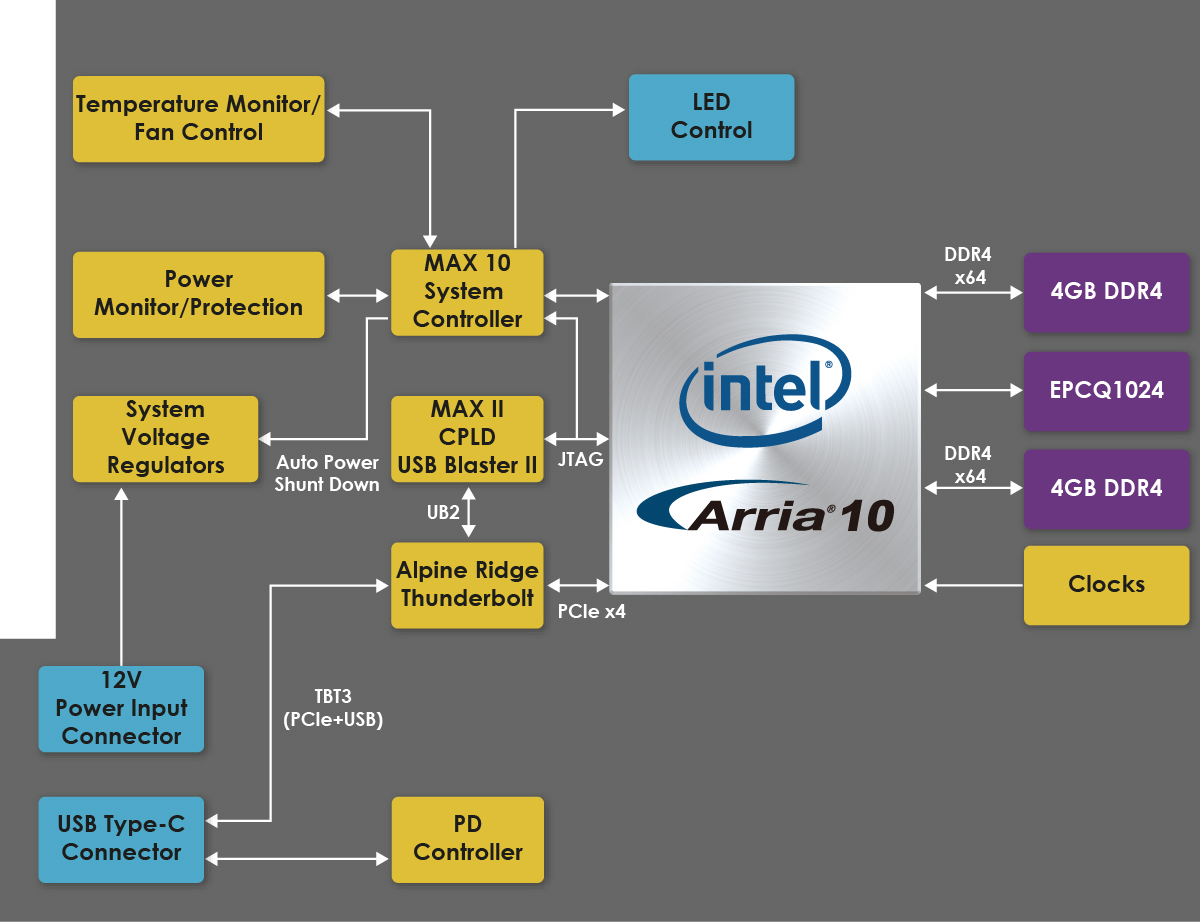

Block Diagram

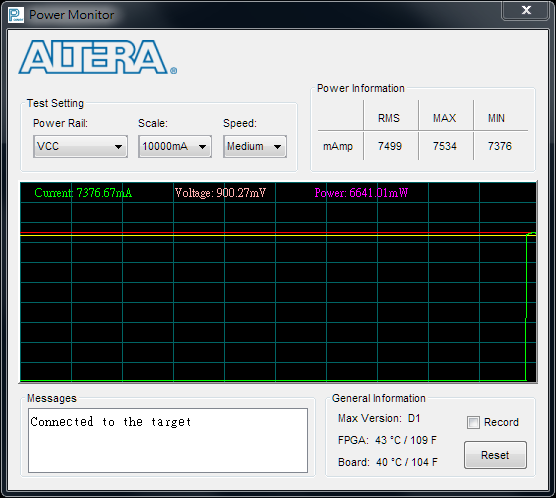

Power Monitor Tool
