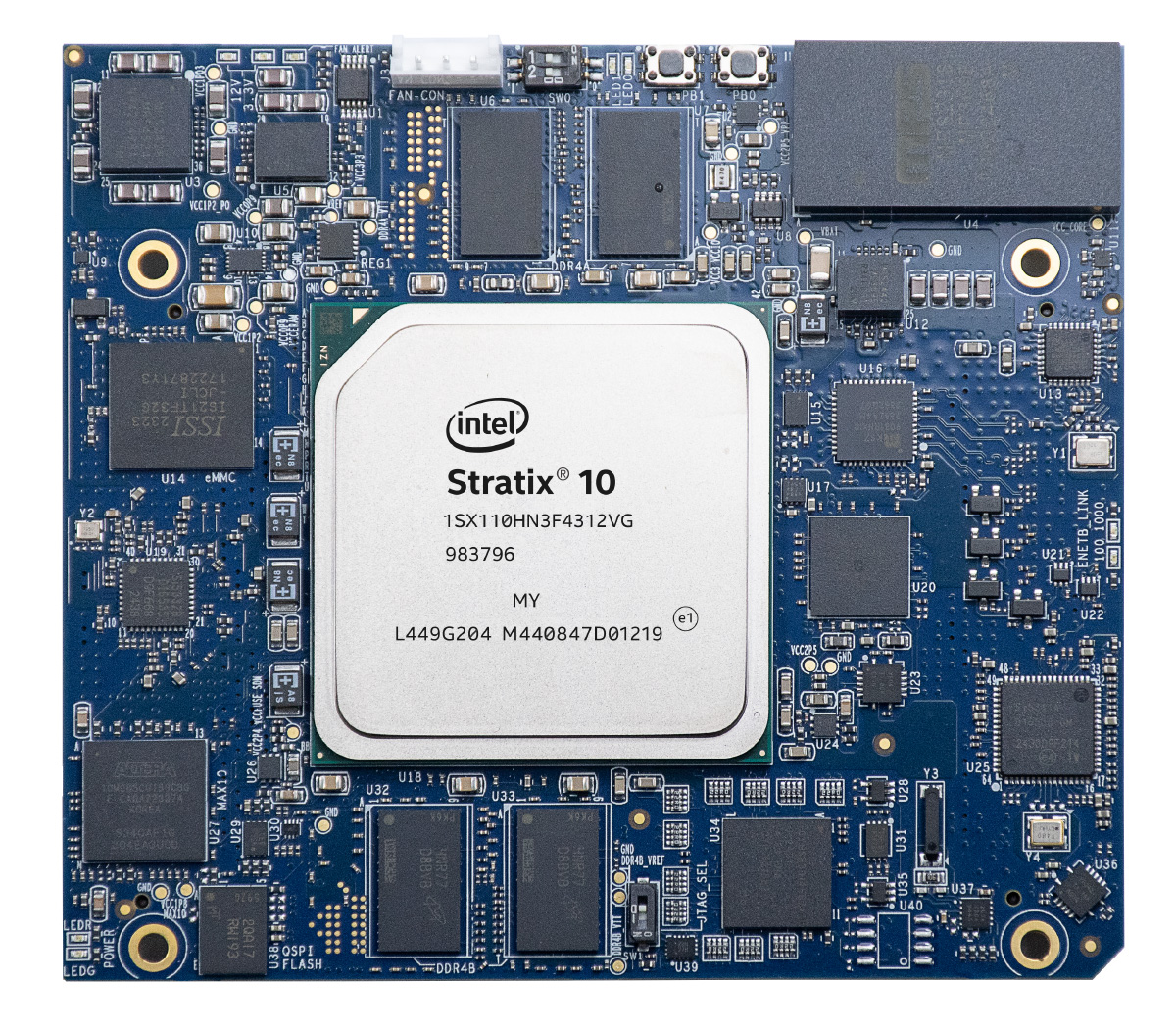

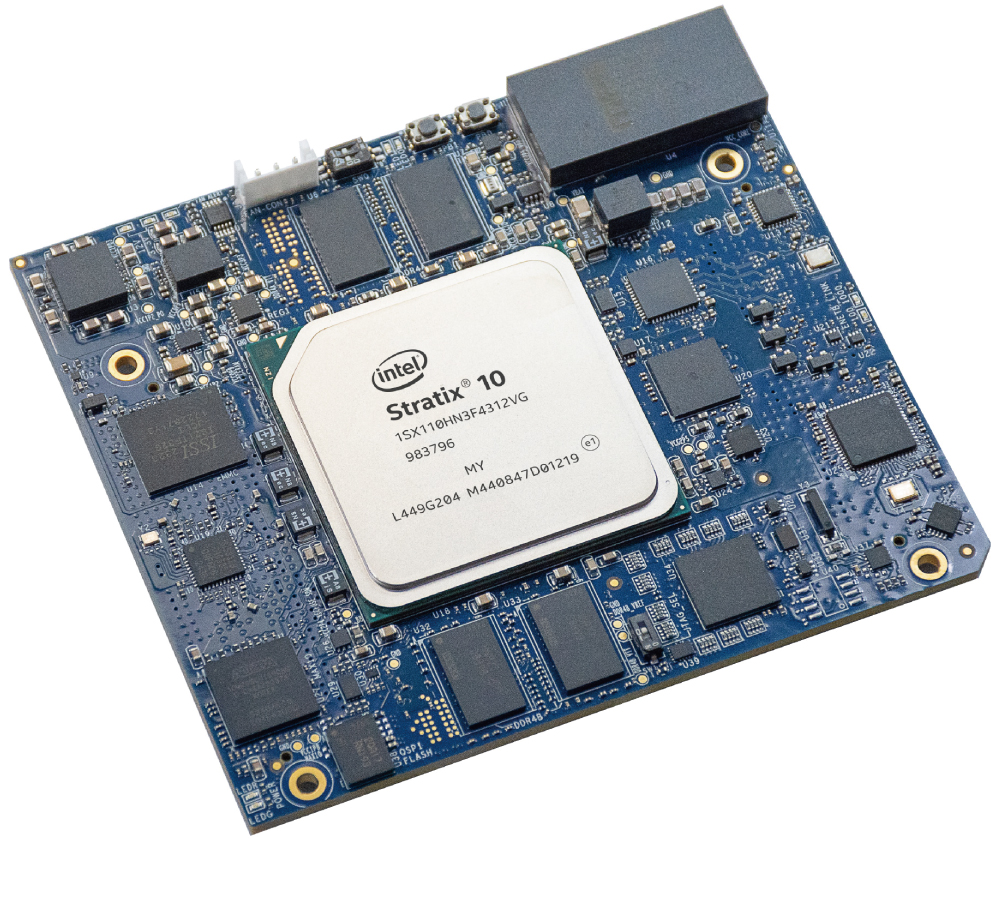

The Titan S10 SOM is a compact, production-ready FPGA module built on the Altera's Stratix® 10 SoC with 1.1M logic elements, purpose-built for compute-intensive embedded applications. Measuring just 98mm × 86mm, the SOM integrates dual 64-bit 4GB DDR4 memory, USB 3.1, and high-speed transceivers up to 12.5Gbps. This high-performance SOM is available in FMC and FMC+ interface versions, allowing customers the option to choose the configuration that best fits their system I/O requirements.
Designed for performance and versatility, the SOM offers up to 154 LVDS channels, 32 transceivers, and a dedicated 64-bit quad-core ARM HPS subsystem with onboard eMMC storage, dual Gigabit Ethernet PHYs, and a USB-UART interface—enabling seamless hardware acceleration alongside embedded software programmability. A full featured, cost-effective SOM development kit is available for initial evaluation and early system development.
Certified for industrial-grade reliability, the Titan S10 SOM is ideal for industrial automation, medical technology, military and aerospace, test and measurement equipment, and advanced embedded systems. The Titan S10 SOM is comparably priced versus mid-range Arria-10 FPGA SOMs which have far less features and significantly less performance.
