子板 網路 DUAL XAUI TO SFP+ HSMC BOARD






XSFP

DUAL XAUI TO SFP+ HSMC BOARD

Features

  • Two independent XAUI interfaces from the HSMC to the BCM8727
  • Two independent SFI interfaces from the BCM8727 to SFP+ cages
  • MDIO interfaces
  • I2C EEPROM for HSMC identification and user data
  • Si5334C clock generator
  • 156.25MHz reference available on SMA connectors and through the HSMC connector
  • 4 user bi-color LEDS for each channel (8 total bi-color LEDs)

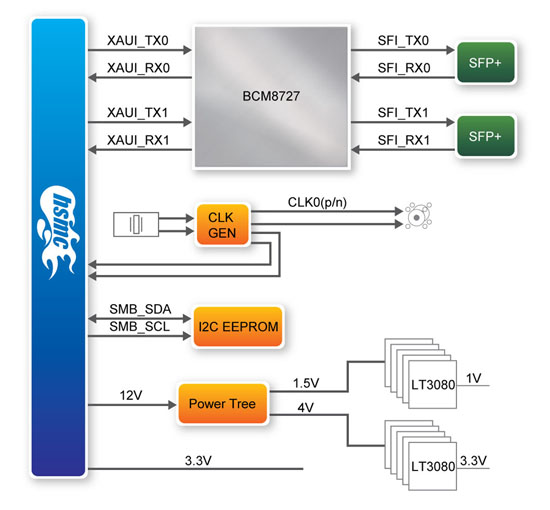

Block Diagram

Connectivity

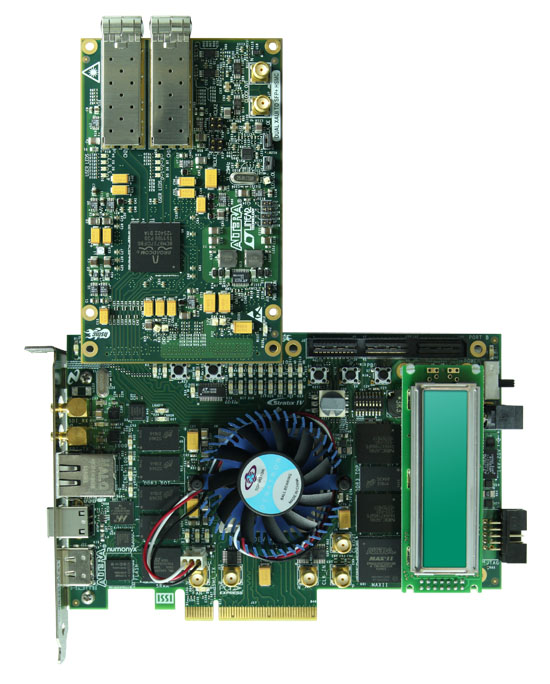

 DUAL XAUI TO SFP+ HSMC BOARD connects to the Startix IV GX FPGA Development Board

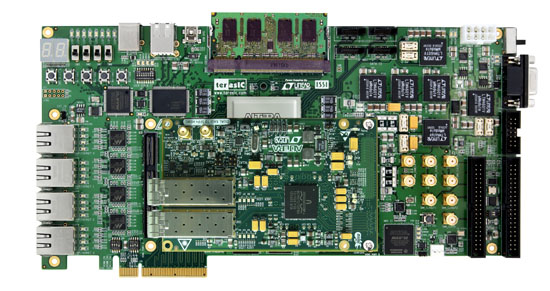

 DUAL XAUI TO SFP+ HSMC BOARD connects to the Altera DE4 FPGA Development Board
