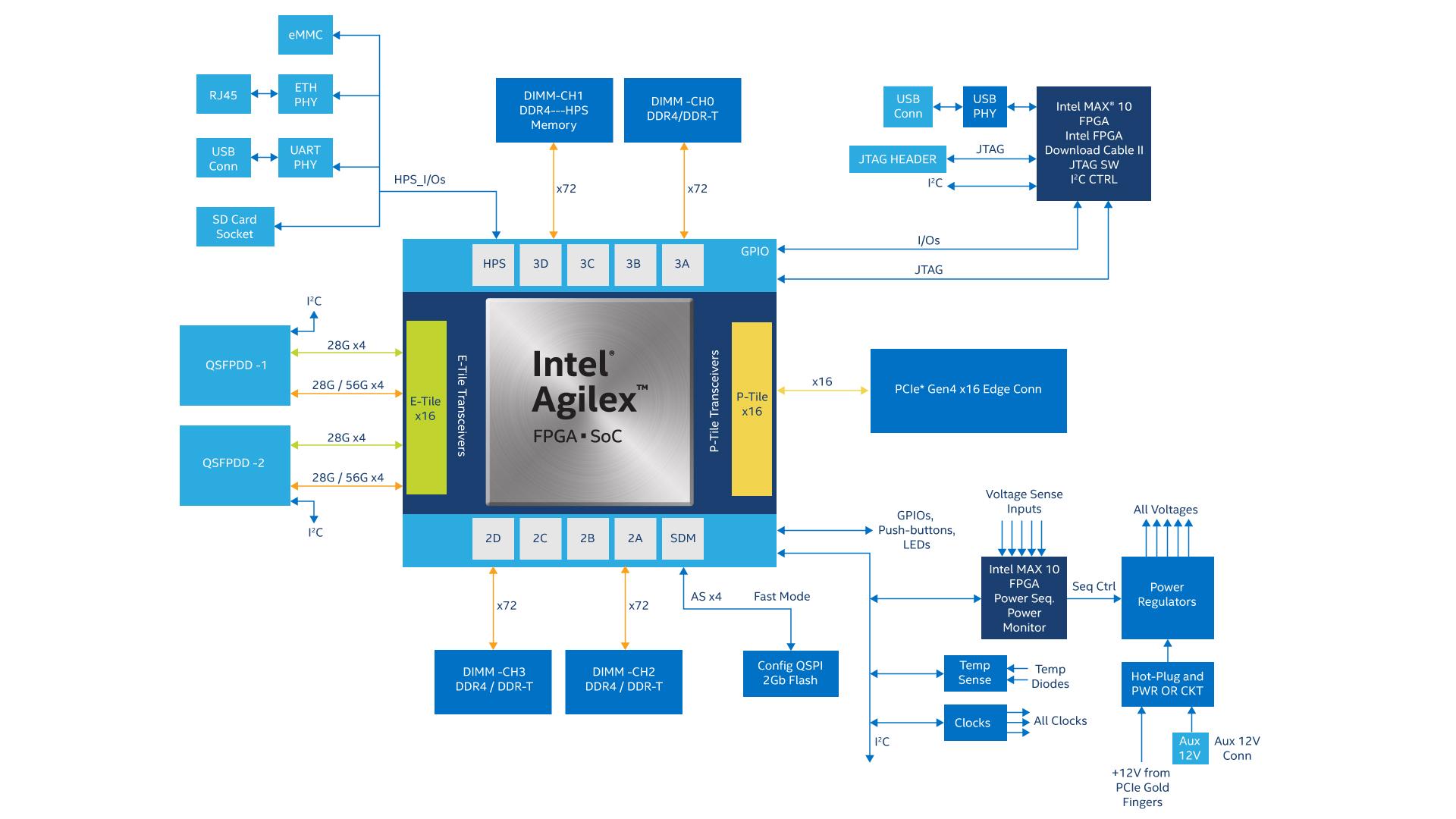

Development Kit Contents and Features
| What is included | |
|---|---|
|
Board |
Development Board mounted with Intel Agilex® 7 FPGA F-Series, 1400 KLE, 2486A package |
|
Device |
AGFB014R24B2E2V |
|
Form Factor |
1x PCIe 4.0 x16 golden finger connected to P-Tile transceivers |
|
Features and Connectors |
FMC loopback card supporting transceiver, LVDS and single-ended I/Os One FMC low-pin count (LPC + 15 transceivers) connector Serial digital interface (SDI) channel |
|
DDR Memory |
3x DDR4 DIMMs sockets supporting 72 bits DDR4/DDR-T module in FPGA fabric interface 1x DDR4 DIMM socket supporting 72 bits DDR4 module for HPS memory interface Only one DDR4 DIMM module (8GB) is provided with each development kit |
|
(QSFP) Cages |
2x standard quad small-form-factor pluggable double density (QSFP-DD) cage |
|
HPS interface |
Supporting ETH, UART, SD card socket, eMMC and Mictor connector |
|
Cables and Adapters |
USB2.0 Micro cable, Ethernet cable, 240W power adapter and NA/EU/JP/UK cords, ATX power convert cable - 24pin to 6pin |
|
Software |
A one-year license for the Intel® Quartus® Prime Pro Edition design software is included with the purchase of the kit. Refer to Intel® FPGA Software Installation and Licensing for more information. |
