Development Kit Contents and Feature
What is included | |
---|---|
Board |
DK-DEV-AGF023FA: Agilex™ 7 FPGA F-Series Development Board mounted with Agilex™ 7 FPGA F-Series, (AGFD023) device in 2340A BGA package (2x F-Tile). DK-DEV-AGF027F1ES: Agilex™ 7 FPGA F-Series Development Board mounted with Agilex™ 7 FPGA F-Series, (AGFB027) device in 2340A BGA package (2x F-Tile). |
Device |
DK-DEV-AGF023FA: AGFD023R24C2E1VC or DK-DEV-AGF027F1ES: AGFB027R24C2E2VR2 (Only supports PCIe 4.0 x8 on ES version Development Kit) |
Form Factor |
1x PCIe 4.0 x16 golden finger connected to F-Tile transceivers. |

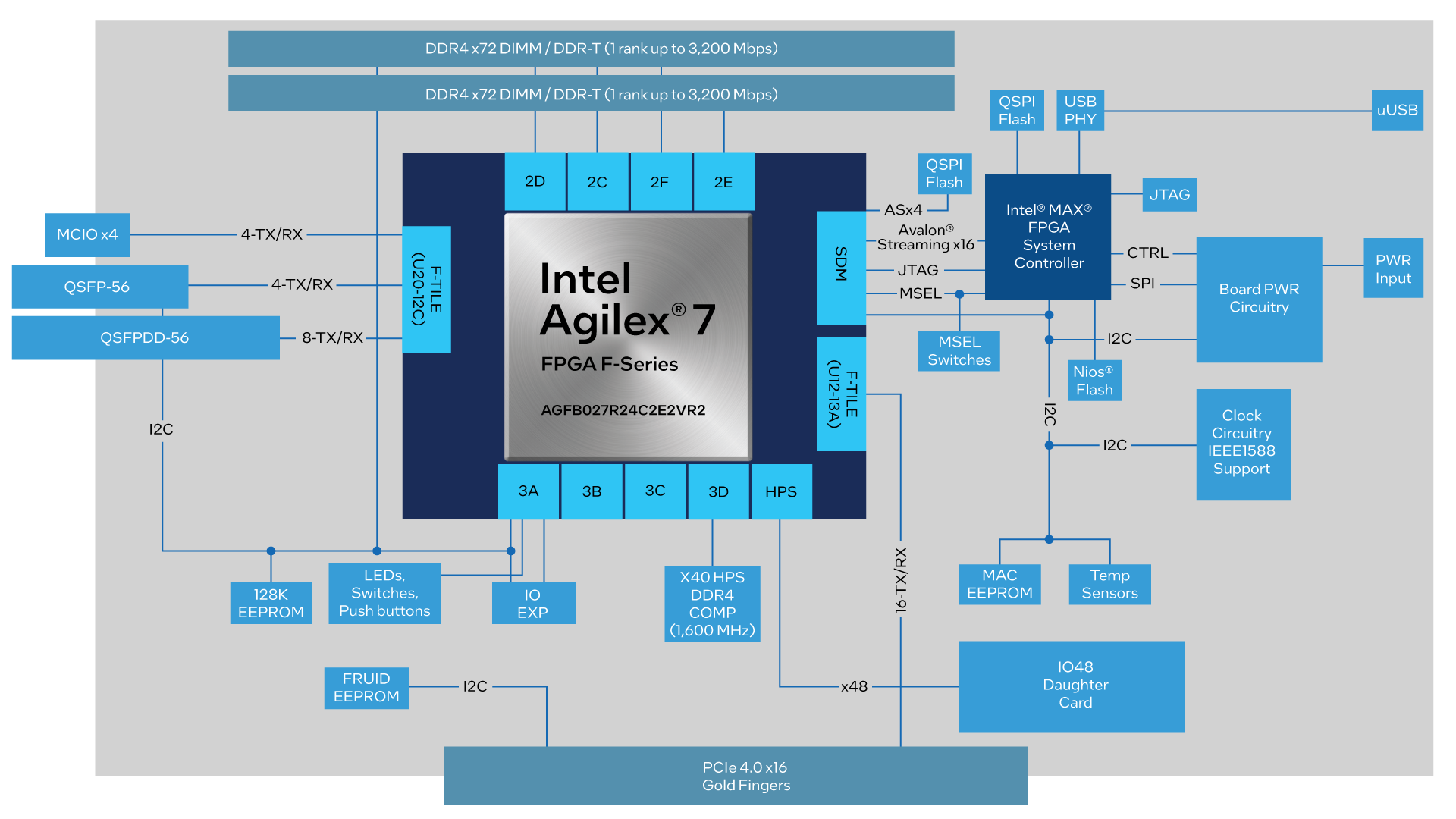

Features and Connectors |
PCI Express* ( PCIe* ) x16 interface supporting Gen 4 end-point connected to a PCIe* x16 edge connector (gold edge fingers). 1x QSFP optical module interface connected to F-Tile transceiver. 1x QSFPDD optical module interface connected to F-Tile transceiver. 1x PCIe* / CXL interface supporting x4 interface connected to MCIO connector. |
DDR Memory |
Two x72 DIMM sockets supporting DDR4-2666 or DDR-T memory module. Single x40 DDR4 component interface for HPS processor memory. Only one DDR4 DIMM module (8GB) is provided with each development kit. |
(QSFP) Cages |
1x QSFP cage for optical module interface connected to F-Tile transceiver. 1x QSFPDD cage for optical module interface connected to F-Tile transceiver. |
HPS interface |
Supporting ETH, UART, SD card socket and, eMMC through HPS IO48 OOBE daughter card. |
Cables and Adapters |
USB2.0 Micro cable, Ethernet cable, 240W power adapter and NA/EU/JP/UK cords, ATX power convert cable - 24pin to 6pin. |
Software |
A one-year license for the Quartus® Prime Pro Edition design software is included with the purchase of the kit. Refer to Intel® FPGA Software Installation and Licensing for more information. |
