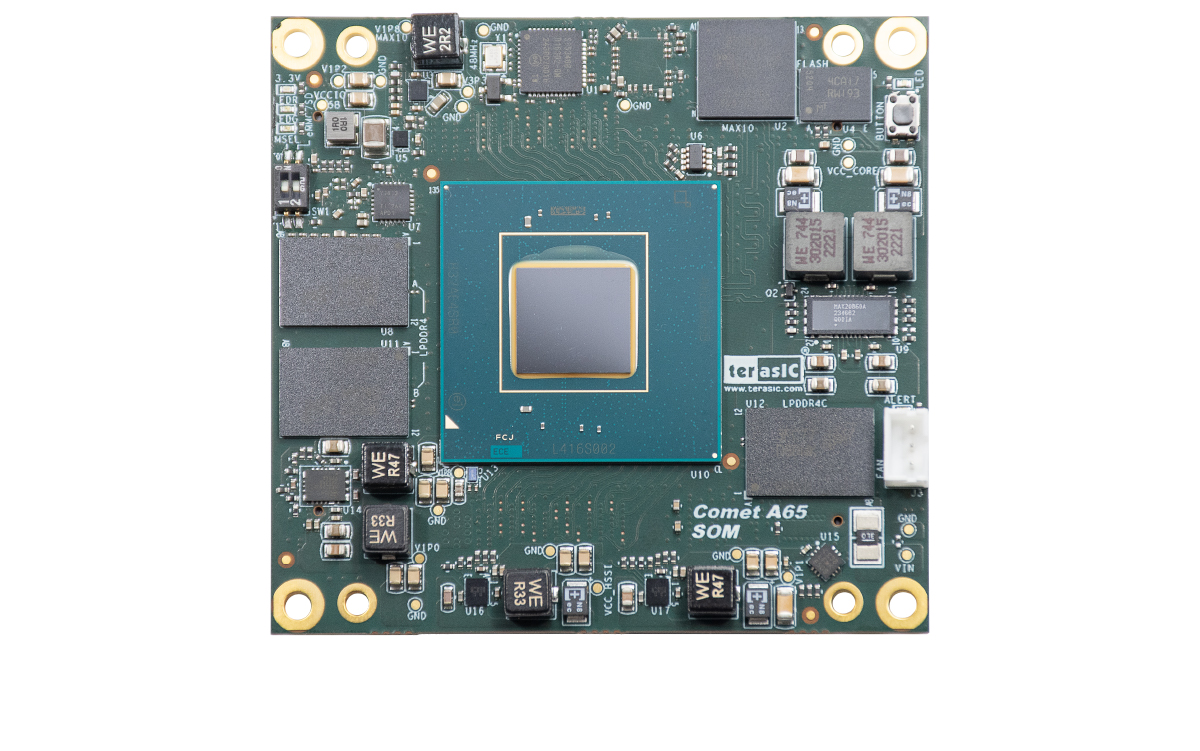

Comet A65 SOM Module

System:

  • FPGA: A5ED065BB32AE4SR0 (Agilex 5 E-Series Device Group B)
  • Module Size : 75mm x 75mm
  • 102 HVIO (3.3V x4, 1.8/2.5/3.3 x98)
  • 143 HSIO (71 LVDS)
  • 48 HPSIO
  • 24 Transceivers
  • Interface: Two SEAM8 Connectors (4x100 pin)
  • Board Management System
    • Power and Temperature Monitor
    • Auto Fan Control
    • Auto shutdown when power or temperature is abnormal



FPGA Side:

  • LED x1, KEY x1
  • Fixed 50 /100MHz Clock
  • Programmer Clock Generator for transceiver reference clock
  • LPDDR4-A: 4GB DDR4 with 32-bit data bus (no ECC). Shared with HPS
  • LPDDR4-B: 4GB DDR4 with 32-bit data bus (no ECC)
  • LPDDR4-C: 4GB DDR4 with 32-bit data bus (no ECC)
  • 102-pin HVIO and 143-pin HSIO connected to SEAM8 connector
  • 24 transceiver and 4 reference clock connected to SEAM8 6 connectors



HPS side:

  • LPDDR4-A: 4GB DDR4 with 32-bit data bus (no ECC). Shared with FPGA.
  • 48 HPS IO connected to ADF6 connector
  • 8GB eMMC (Expandable) + eMMC SEL Switch



Block Diagram:





Evaluation kit

The Evaluation kit is composed of a Module and Carrier.

Carrier Board features include:



System:

  • PCIe Form Factor: Full Height, ½ Length
  • Power Input: 12V DC Jack or PCIe edge
  • Interface: Two SEAF8 Connectors (40x100 pin)



FPGA:

  • PCIe Gen4 x4 with x8 Edge
  • HDMI Out (1080P)
  • One QSFP+ Port for 40 GbE network interface
  • Two 4-lanes MIPI Connectors for Camera/Display
  • 60-pin High Speed Connector
  • One 3.3V 2x20 DE-GPIO Header
  • 2.5G Ethernet + RJ45
  • SMA x2 for differential clock input



HPS:

  • MicroSD Socket
  • UART Port (Type-C Connector)
  • Gigabit Ethernet PHY + RJ45
  • USB 2.0 OTG (MicorUSB Connector)
  • COLD Reset Button

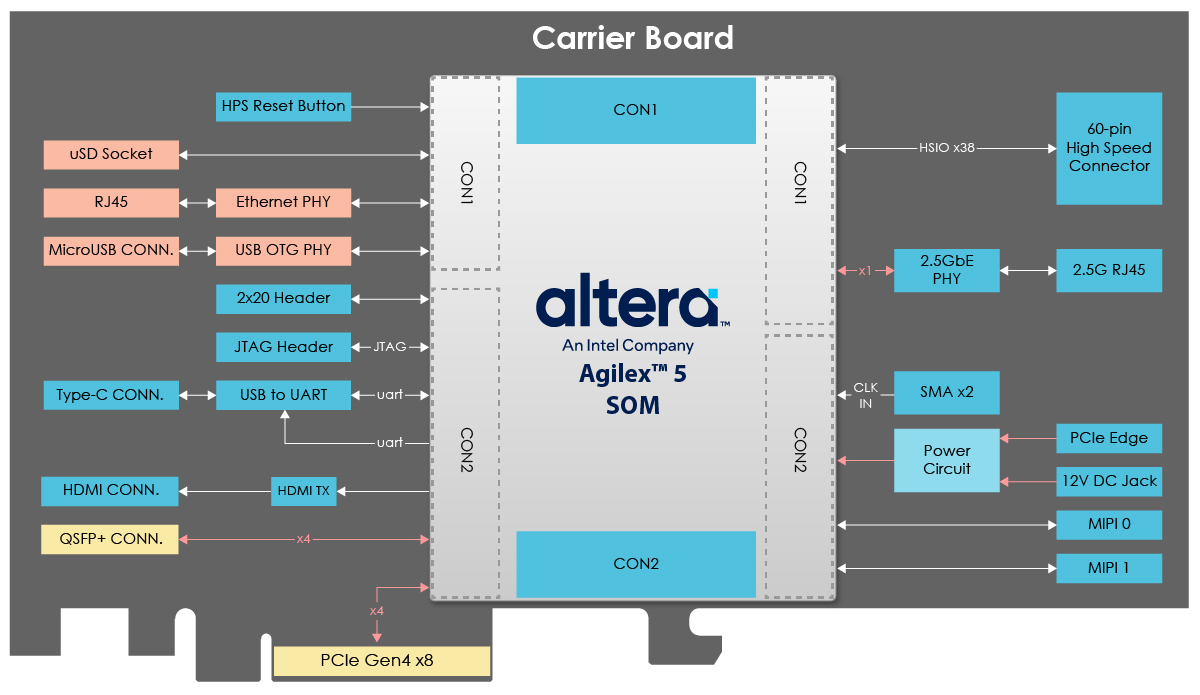

Block Diagram:

Overview
Layout
