Phased Out Main Boards PCI-X Development Board






PCIX

PCI-X Development Board

Download

Documents

TitleVersionSize(KB)Date AddedDownload
PCI User Manual 10 3161 2009-10-12

Please note that all the source codes are provided "as-is". For further support or modification, please contact Terasic Support and your request will be transferred to Terasic Design Service.
More resources about IP and Dev. Kit are available on Altera User Forums.

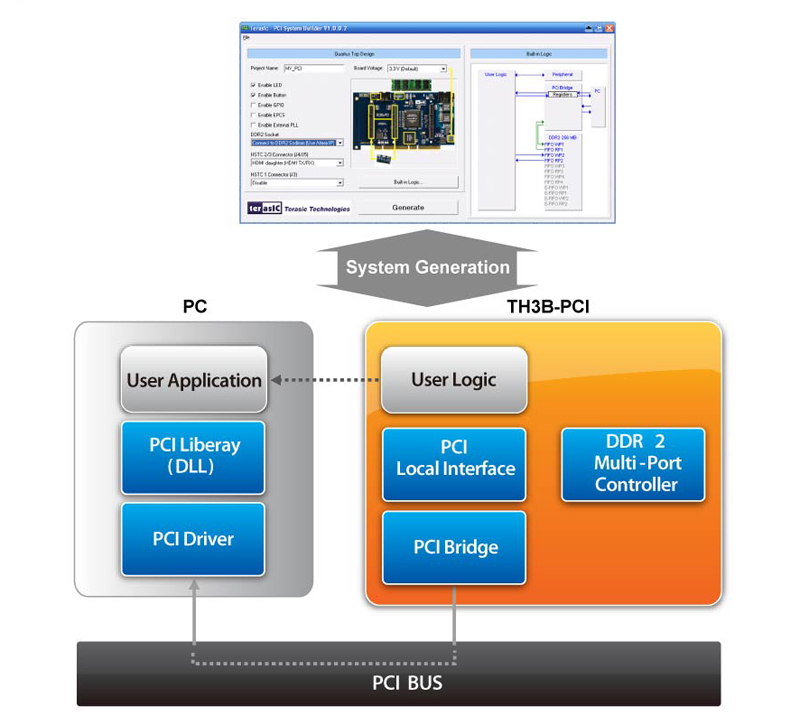

PCI System Builder

A software utility helps users to create a PCI project framework quickly.

  • Auto-generated Quartus II Project
    • Top Level Deign File
    • Terasic IP Design
  • Auto-generated PCI drivers for windows
    • PCI Driver
    • PCI Library
  • Auto Generation on User Logic
    • User-Defined Register
    • User-Defined Memory Block (External DDR2 SDRAM)
    • IO Connection includes Pre-Selected on board Component and external Daughter Board



Layout Kit Contents
