Phased Out Daughter Cards HSMC to Santa Cruz Card (Phased Out)






H2S

HSMC to Santa Cruz Card (Phased Out)

  • HSMC and Santa Cruz interface conversion
  • Adjustable logic levels between HSMC and SC interface signals
  • One Mictor Connector for logic analyzer debug interface
  • One SMA Connector for external clock input
  • One DB9 Connector for RS232 serial I/O interface
  • Four Push buttons for general user-interface
  • Size:78.74*88.9 mm

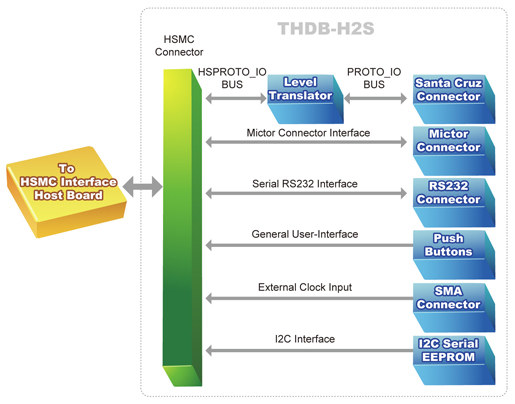

Block diagram

Connectivity

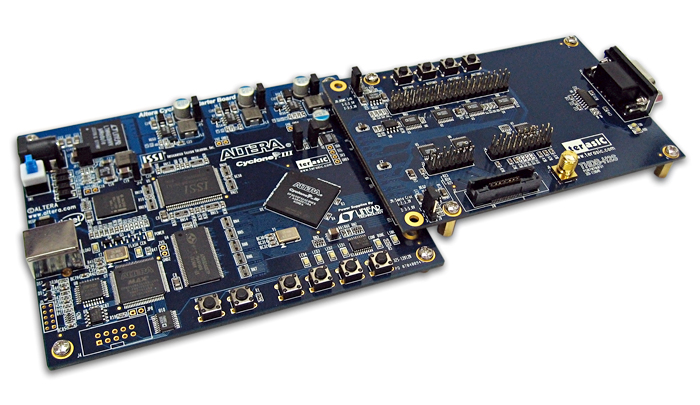

The H2S connects with Altera Cyclone III Start Board
