The Intel® MAX® 10 FPGA 10M50 Evaluation Kit includes:
- CE-compliant 10M50 evaluation board
- Intel® MAX® 10 FPGA (10M50, dual power supply, 484-pin FBGA )
- Intel® Enpirion® point-of-load Synchronous Buck Regulators with Integrated Inductors:
- EP5348UI, 400 mA
- EP5358LUI/HUI, 600 mA
- EP5329QI/5339QI, 2A/3A
- FPGA programming (.pof) or configuration (.sof) via:
- On-board Intel® FPGA Download Cable II circuitry
- Optional 10-pin JTAG header
- On-board clocking circuitry
- 25 MHz single-ended, external oscillator clock source
- Silicon Labs Si510 crystal oscillator
- Silicon Labs Si5338 clock generator with programming frequency GUI
- Memory devices
- 1 Gbits (64M x 16) LPDDR2
- 512 Mbits quad serial peripheral interface (quad SPI) Flash
- Communication ports
- One HDMI video output
- Two 12-pin Pmod connectors
- Two 36-pin and one 16-pin FFC connectors (for MIPI cameras/modules)
- General User I/O
- General-purpose single-ended through-hole vias (2x5)
- General-purpose LVDS through-hole vias (2x9 LVDS pairs, plus two clock pairs)
- Five green user-defined LEDs
- Four user-defined push buttons
- Three user DIP switches
- Power
- Three yellow power-on LEDs
- USB Y cable (USB type-A to mini type-B) for both on-board Intel® FPGA Download Cable II and 5 V/1 A power capability
- Supports a DC power adapter option (5 V power supply and cord are sold separately)
- Complete documentation
- User guide, bill of materials, schematic, and board files

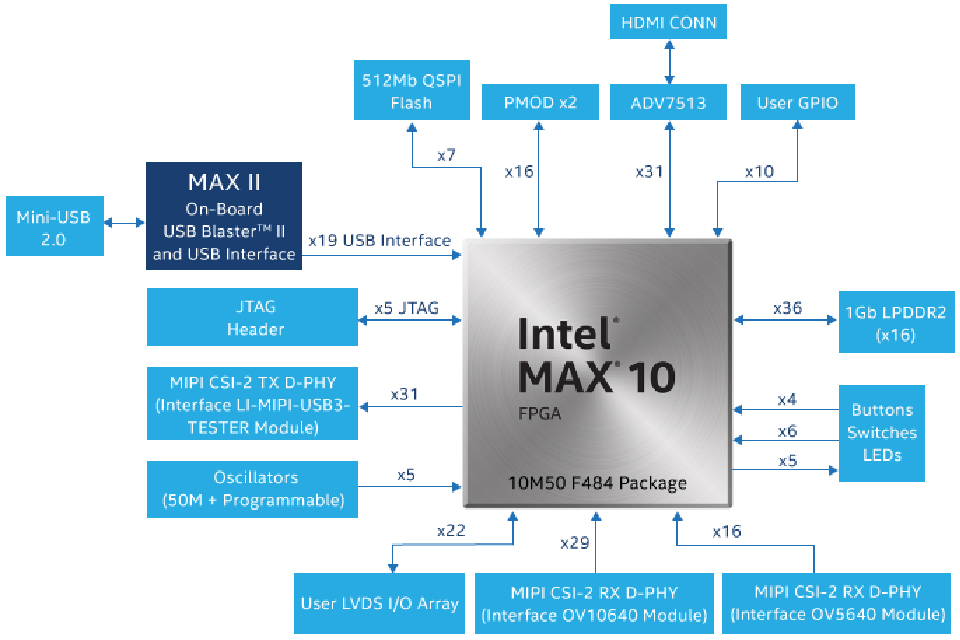

BlockDiagram
