S10GFP

Stratix 10 GX FPGA Development Kit


Hardware
  • Stratix 10 GX FPGA development board with a Stratix 10 GX FPGA
  • 1 GB DDR4 SDRAM, 2GB DDR3 SDRAM, and RLDRAM3 (16 Meg x 36) daughtercards
  • FMC loopback card supporting transceiver, LVDS and single-ended I/Os
  • One quad small-form-factor pluggable (QSFP) cage
  • One FMC low-pin count (LPC + 15 transceivers) connector
  • PCIe x16 edge connector
  • Serial digital interface (SDI) channel
  • AC adapter power cables
  • Ethernet and USB cables

Software1
  • Design examples
  • Board Update Portal design
  • Board Test System (BTS) design
  • Documentation
  • Stratix 10 GX FPGA Development Kit User Guide
  • Board design files
  • Quartus Prime Pro software (required)

Notes:

Download and unzip Stratix 10 GX FPGA Development Kit installer first. Install the Board Test System.
 A one-year license for Quartus® Prime Pro design software is available upon purchase of the kit. License activation instructions and FAQs.

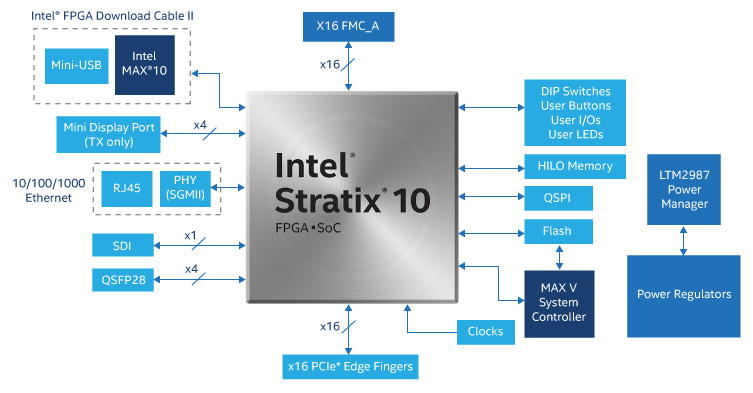

Figure 2. Stratix 10 GX FPGA Development Kit Block Diagram
