Stratix 10 MX FPGA Development Kit

The High Bandwidth Memory (HBM) capacity of the Stratix 10 MX FPGA Development Kit is available in two versions : 8GB and 16GB.
The FPGA device of these two versions are different.

* The Stratix 10 FPGA Device number of 8GB HBM is 1SM21BHU2F53E1VG.
* The Stratix 10 FPGA Device number of 16GB HBM is 1SM21CHU2F53E1VG.

You can use this development kit to:

  • Develop and test PCI Express® (PCIe®) 3.0 designs using the PCI-SIG®-compliant development board.
  • Develop and test memory subsystems with High Bandwidth Memory (HBM) and DDR4 (DIMM, HiLo, components)

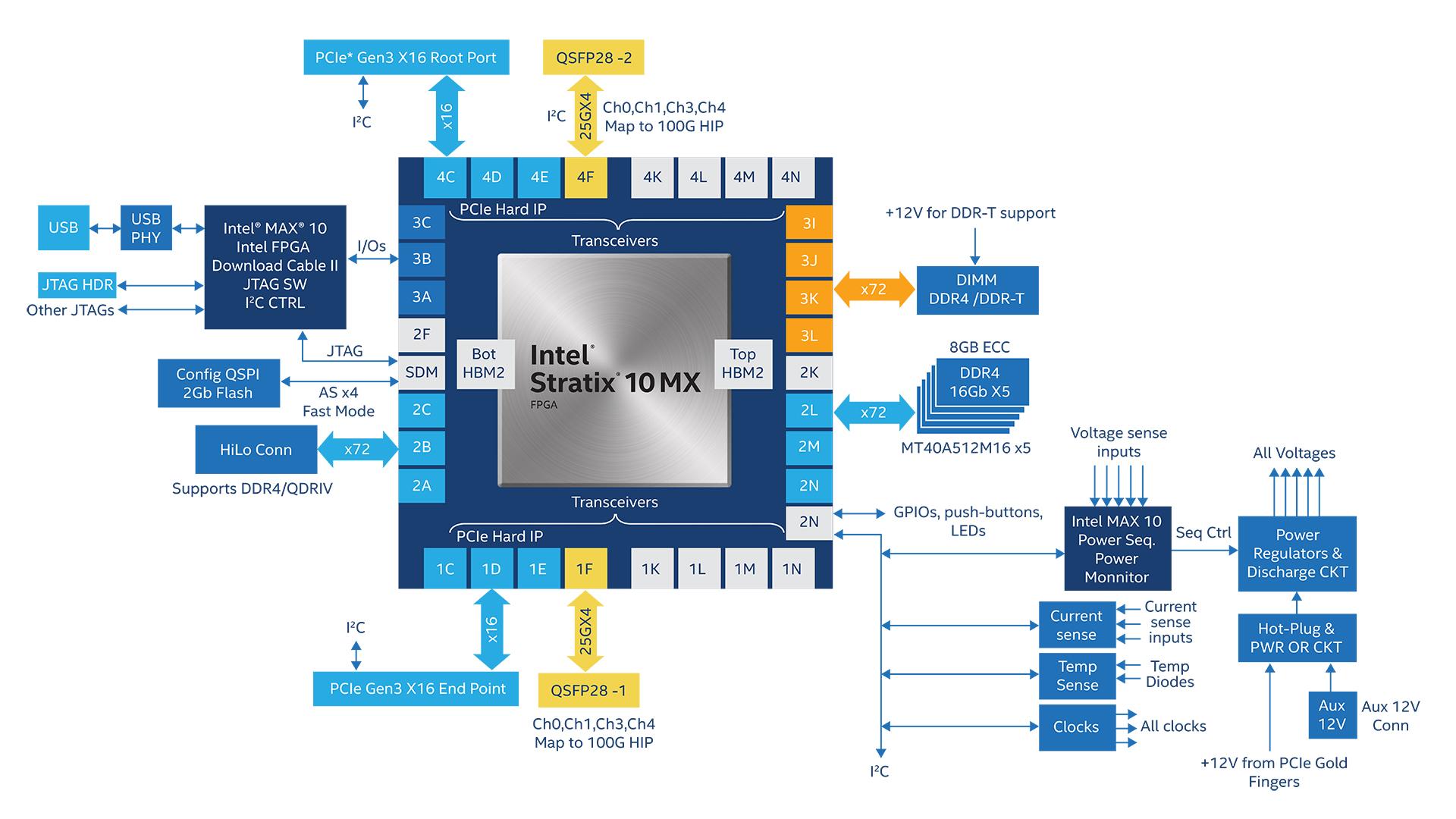

Hardware
  • Intel® Stratix 10 MX FPGA development board with a Stratix 10 MX FPGA
  • On-Board DDR4 (8 GB)
  • One DDR4 DIMM daughter card
  • Two quad small-form-factor pluggable (QSFP28) cages
  • PCIe Gen3x16 (Root Port and End Port)
  • AC adapter power and USB cables



Software1
  • Design examples
  • Board Update Portal design
  • Board Test System (BTS) design
  • Documentation
  • Intel® Stratix 10 MX FPGA Development Kit User Guide
  • Board design files
  • Intel® Quartus Prime Pro Edition Software (required)
  1. Download and unzip Stratix 10 MX FPGA Development Kit installer first. Install the Board Test System.
  2. A one-year license for Quartus® Prime Pro design software is available upon purchase of the kit. License activation instructions and FAQs
