All FPGA Boards Stratix 10 Intel® Stratix® 10 DX FPGA Development Kit






S10DX

Intel® Stratix® 10 DX FPGA Development Kit

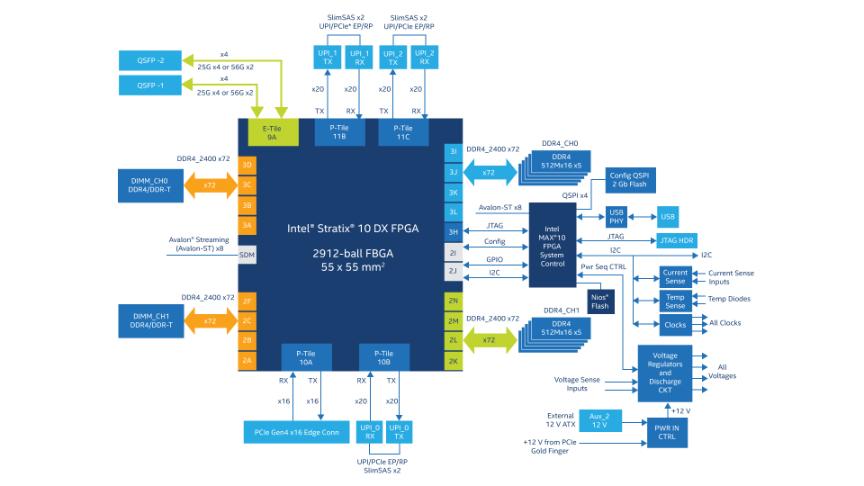

Development Kit Contents

Hardware

  • Intel® Stratix® 10 DX FPGA development board with an Intel® Stratix® 10 DX FPGA
  • On-board DDR4 SDRAM (8GB)
  • 2 DDR4 DIMM (8GB each)
  • Two quad small-form-factor pluggable (QSFP56) cages
  • PCIe Gen4 capability and upgraded virtualization features
    • 1x PCIe Gen4x16 Endpoint via Edge Connector
    • 1x PCIe EP/RP Gen4x16 over cable to daughtercard (not included)
    • 2X UPI connectors (for cable over to select CPU boards)
  • AC adapter power and USB cables

Software 1

  • Design examples
  • Board Update Portal design
  • Board Test System (BTS) design
  • Documentation
    • Intel® Stratix® 10 DX FPGA Development Kit User Guide
    • Quick Start Guide
  • Board design files
  • Intel® Quartus® Prime Pro Edition software (required)



  1. Download and unzip the Intel Stratix 10 DX FPGA Development Kit installer first. Install the Board Test System.
  2. A one-year license for the Intel Quartus Prime Pro Edition design software is available upon purchase of the kit. Refer to the license activation instructions and FAQs .
