  • Intel® Cyclone® 10 LP FPGA
    • P/N: 10CL025YU256I7G with 25K LEs
  • Intel® MAX® 10 FPGA, pre-programmed System Manager ASSP functions (Not reprogrammable by the user)
    • On-board USB Blaster II
    • SystemMAX  controller
      • Programmable clock adjustment
      • Current measurement for key Intel Cyclone 10 LP FPGA power rails
      • Arduino Analog input and conversion to digital signals
    • P/N: 10M08SAU169C8G
      • 8K LEs, Single Power Supply, 1 ADC with 9 input channels
  • Enpirion point-of-load Synchronous Buck Regulators with Integrated Inductors:
    • EN5339QI, 3A
    • EN5329QI, 2A
    • EP5358LUI, 600mA 2 pieces
  • HyperRAM*
    • 128Mbit 8-bit width HyperRAM memory
    • 100 MBs throughput @ only 400 LE's and 12 I/O
    • Open Core license available for evaulation
    • HyperBus Memory Controller IP by Synaptic Labs
  • 10/100/1000Mbps Ethernet
    • Intel XWAY PHY11G PEF7071
    • RGMII Interface to Intel Cyclone 10 LP FPGA (as MAC),
      • Triple speed ethernet MAC supported from Quartus Prime version 17.1 onwards
    • MDC/MDIO as management interface
    • RJ-45 for Ethernet Cable
  • 12-pin Digilent Pmod* Compatible connector
    • Refer  Pmod* Compatible expansion cards
  • Arduino Interface
    • Compatible with Arduino UNO R3
    • Arduino Shields can be used on this Arduino Interface
  • User GPIOs
    • 2x20 expansion GPIO header with 36 GPIO signals brought out to a 100mil header
    • Single-end IO with 3.3 VCCIO
  • LED
    • Blue Power LED x1
    • Yellow Configuration LED x1
    • Green User LEDs x4
  • Push Button
    • FPGA Reconfiguration Push Button x1
    • FPGA Reset Push Button x1
    • User Push Buttons x4
  • 4-bit DIP Switch
    • 1-bit Virtual JTAG bypass
    • 3-bit User DIP Switch
  • Configuration
    • On-board USB Blaster II Programming
    • External 2x5 JTAG Header
    • AS x1 configuration via on board Flash (EPCQ64)
  • Clock
    • Fixed 50MHz clock to Intel Cyclone 10 LP FPGA and Intel MAX 10 FPGA
    • 125MHz Ethernet Clock to Intel Cyclone 10 LP FPGA (Programmable)
    • 50MHz HyperRAM Clock to Intel Cyclone 10 LP FPGA (Programmable)
    • Programmable clock to Intel Cyclone 10 LP FPGA
  • Power
    • USB or Adaptor powered
      • USB port shared with on-board USB Blaster II Mini-B Connector
      • AC-DC (5V) adaptor which is not be shipped with kit
    • Intel Cyclone 10 LP FPGA Power Measurement Capability
      • Intel MAX10 FPGA ADC to measure current for specified Intel Cyclone 10 LP FPGA power rails
      • Voltage and current manual measurement for other Intel Cyclone 10 LP FPGA power rails

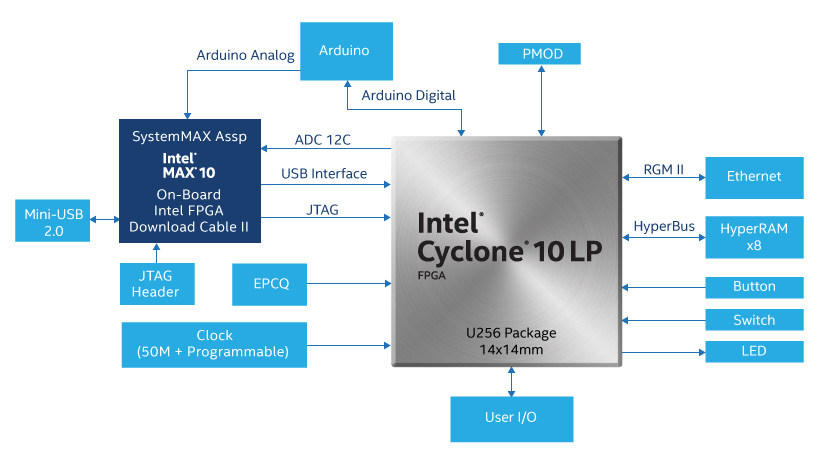

Intel® Cyclone® 10 LP FPGA Evaluation Kit - Block Diagram
