Features

• 240(H) x 320 (V) pixel resolution LCD with 65K RGB color
• Single resistive touch
• 2x20 GPIO interface

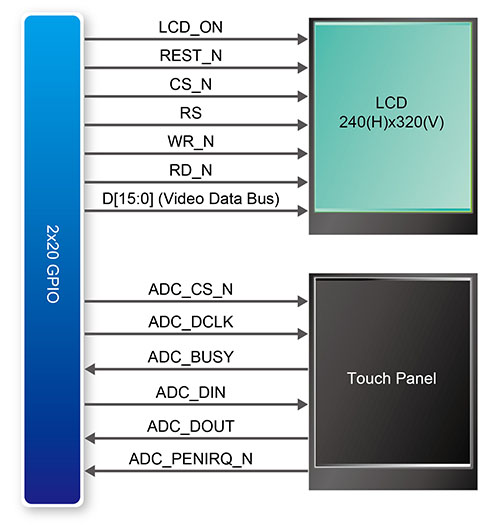

Block Diagram

Connectivity

• The LT24 Daughter Card connects to the DE2-115

• The LT24 Daughter Card connects to the DE0-Nano

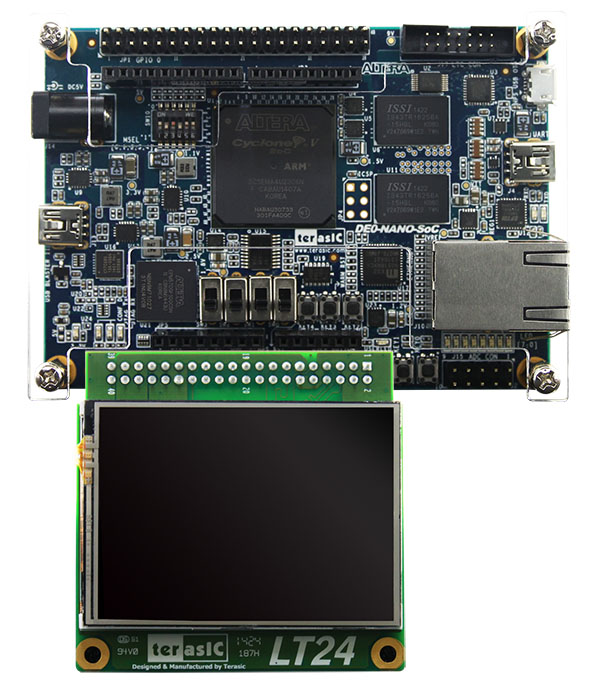

• The LT24 Daughter Card connects to the DE0-Nano -SoC (Atlas-SoC)

• The LT24 Daughter Card connects to the DE1-SoC

• The LT24 Daughter Card connects to the Cycone V GX Starter Kit (C5G)

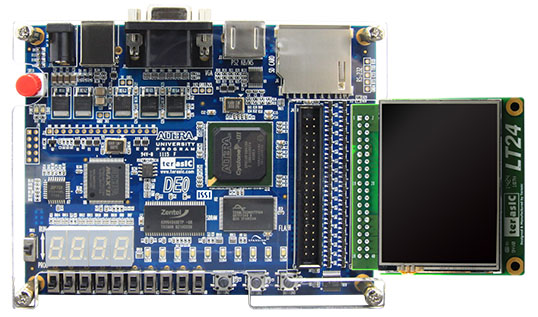

• The LT24 Daughter Card connects to the DE0

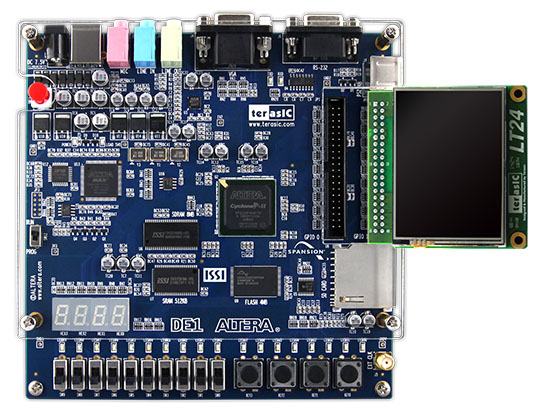

• The LT24 Daughter Card connects to the DE1

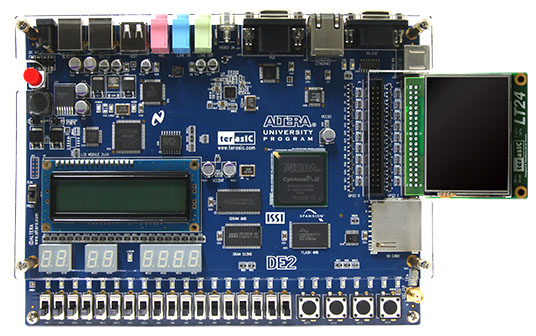

• The LT24 Daughter Card connects to the DE2

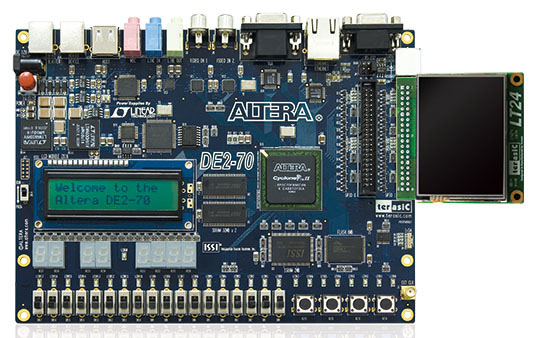

• The LT24 Daughter Card connects to the DE2-70
