HDMI-FMC

HDMI-FMC

The HDMI-FMC card has many features that allow users to implement a wide range of designed items, from simple circuits to various multimedia projects.

The following hardware is provided on the board:

  • Package Interface:VITA 57.1 FMC, adjustable I/O Voltage standard (1.5/1.8/2.5/3.0V).

  • Tx  Module:
    • Chip P/N:SiI9136-3
    • HDMI 1.4a/1.3, HDCP 1.4 and DVI Compliant
    • Video formats:4:4:4 RGB, 4:4:4/4:2:2 YCrCb
    • Pixels resolution:4Kx2K@60Hz
    • Pixels clock:DDR/SDR up to 300MHz
    • 3D format support
    • High bit rate Audio support

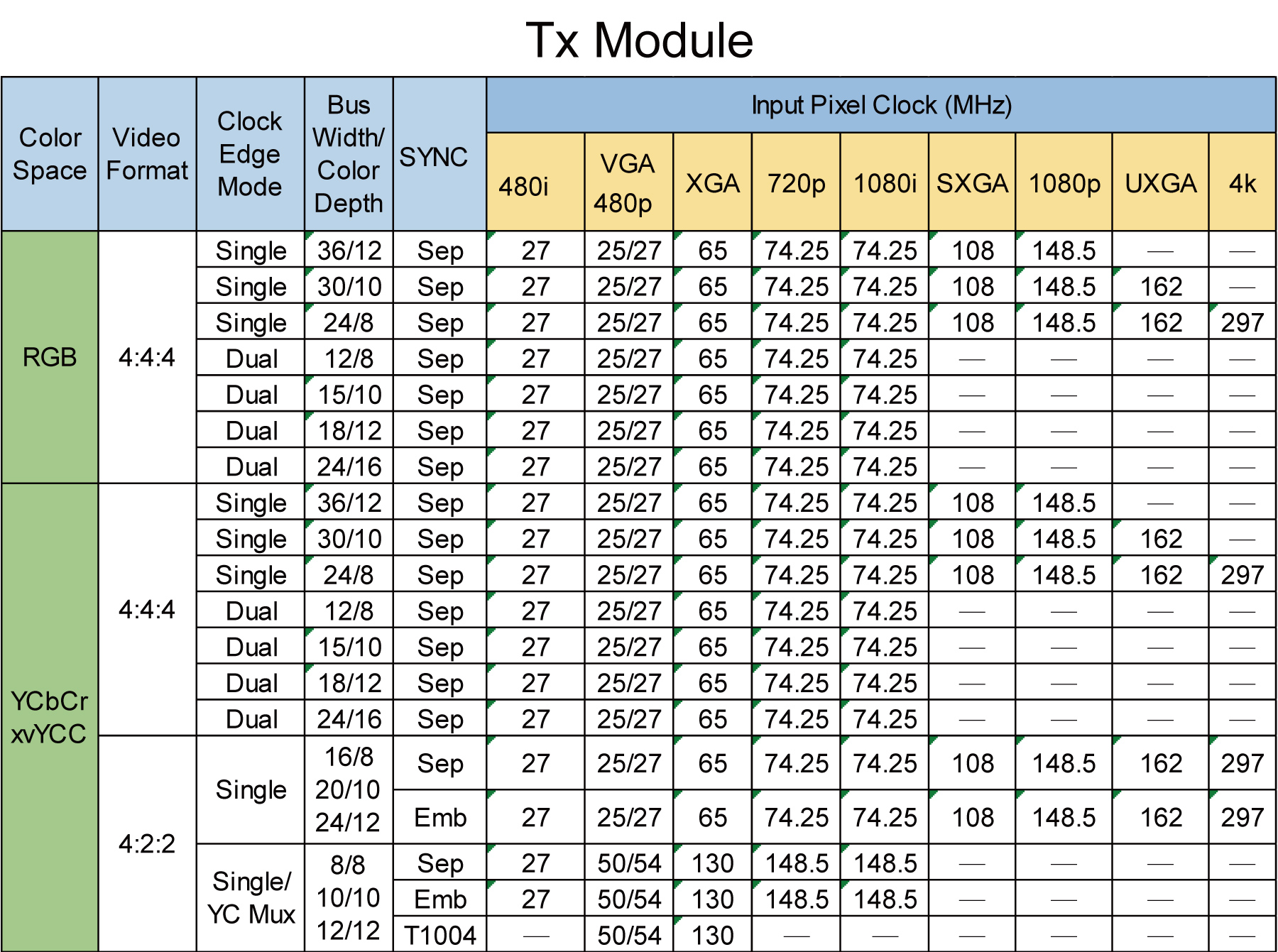

    • It supports the following input video formats:

  • Rx Module:
    • Chip P/N: ADV7619
    • HDMI 1.4a/1.3, HDCP 1.4 and DVI Compliant
    • Video formats:4:4:4 RGB, 4:4:4/4:2:2 YCrCb
    • Pixels resolution:3840x2160@30Hz
    • Pixels clock:DDR/SDR up to 297MHz
  • Level shift:
    • MAXII EPM2210
    • I/O Voltage standard(1.5/1.8/2.5/3.0V)



 Block Diagram of the HDMI-FMC Board

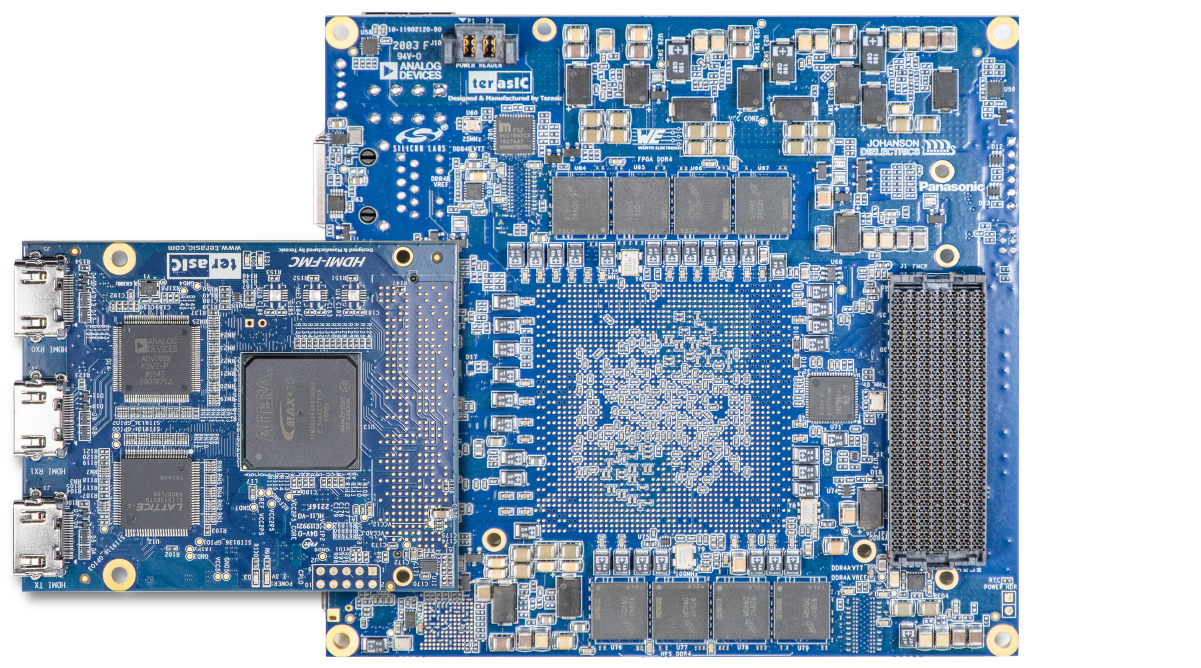

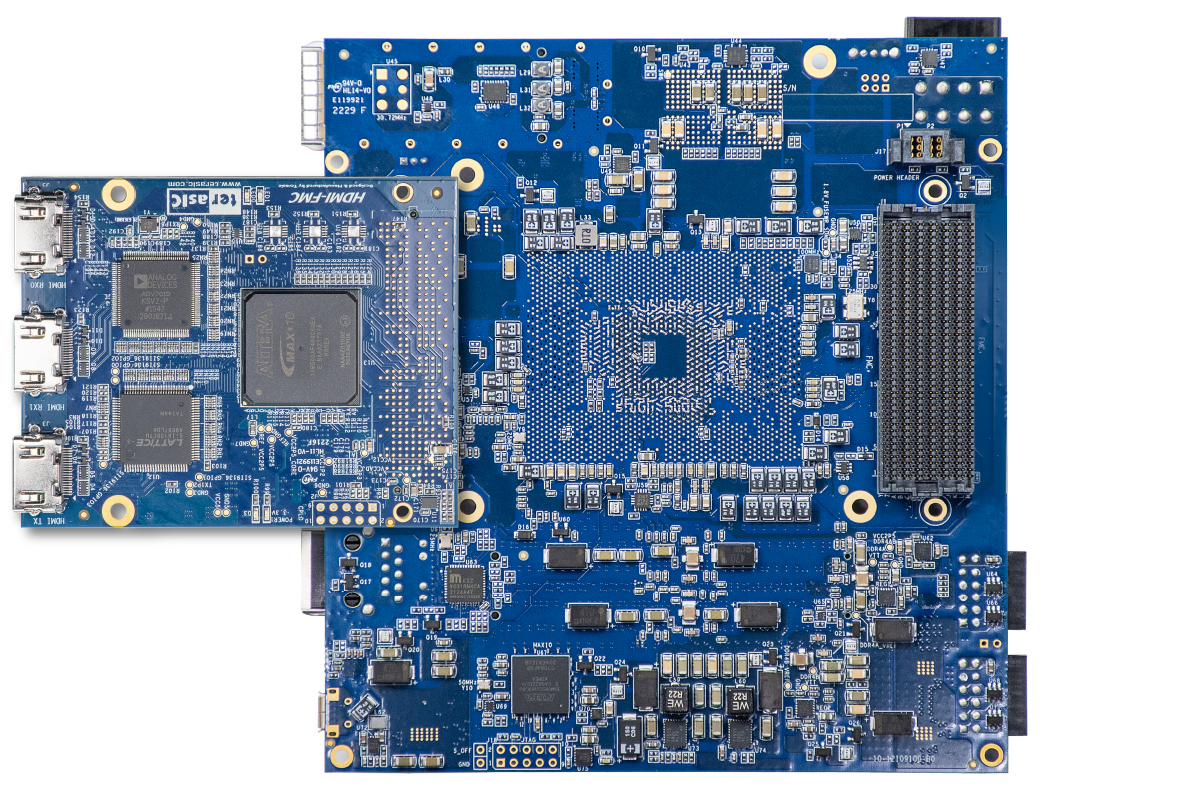

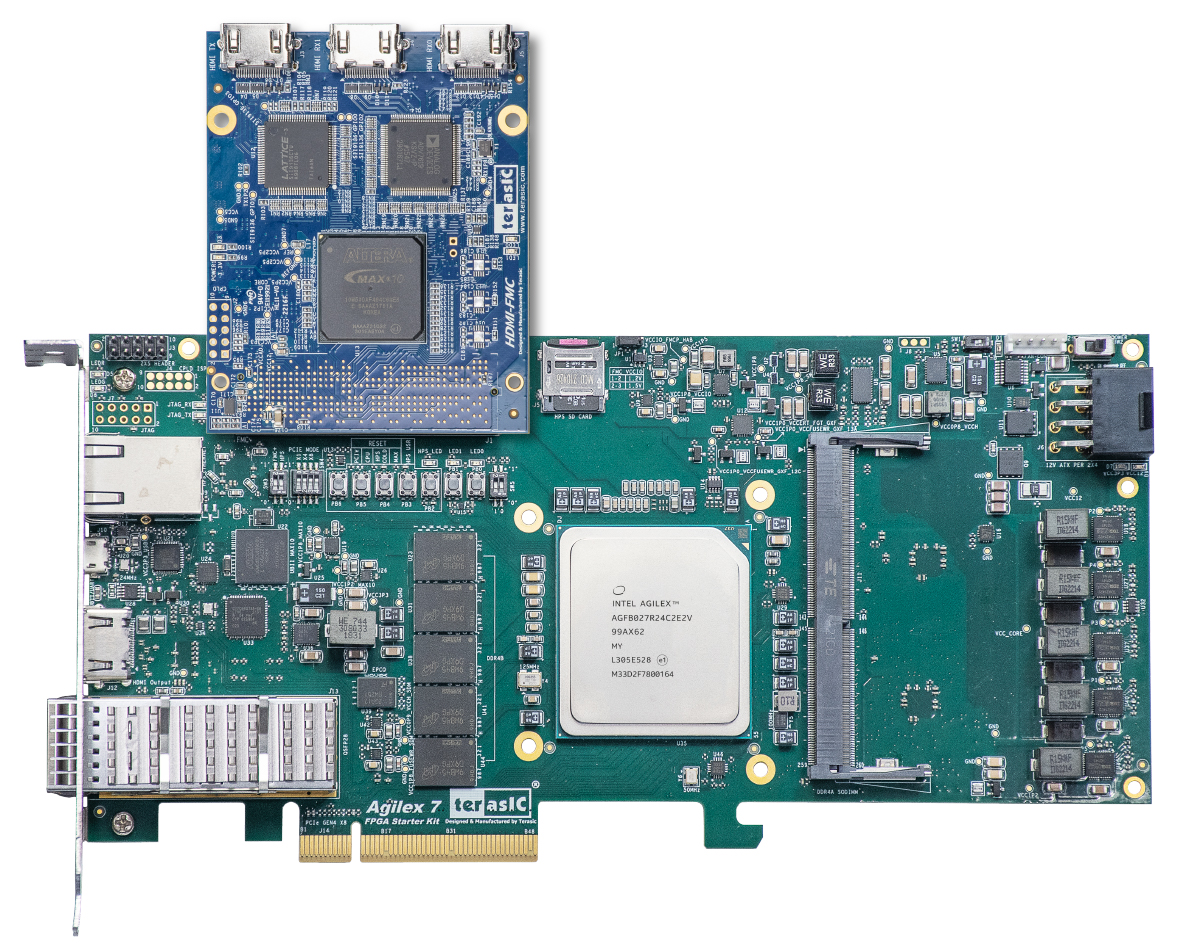

Connectivity

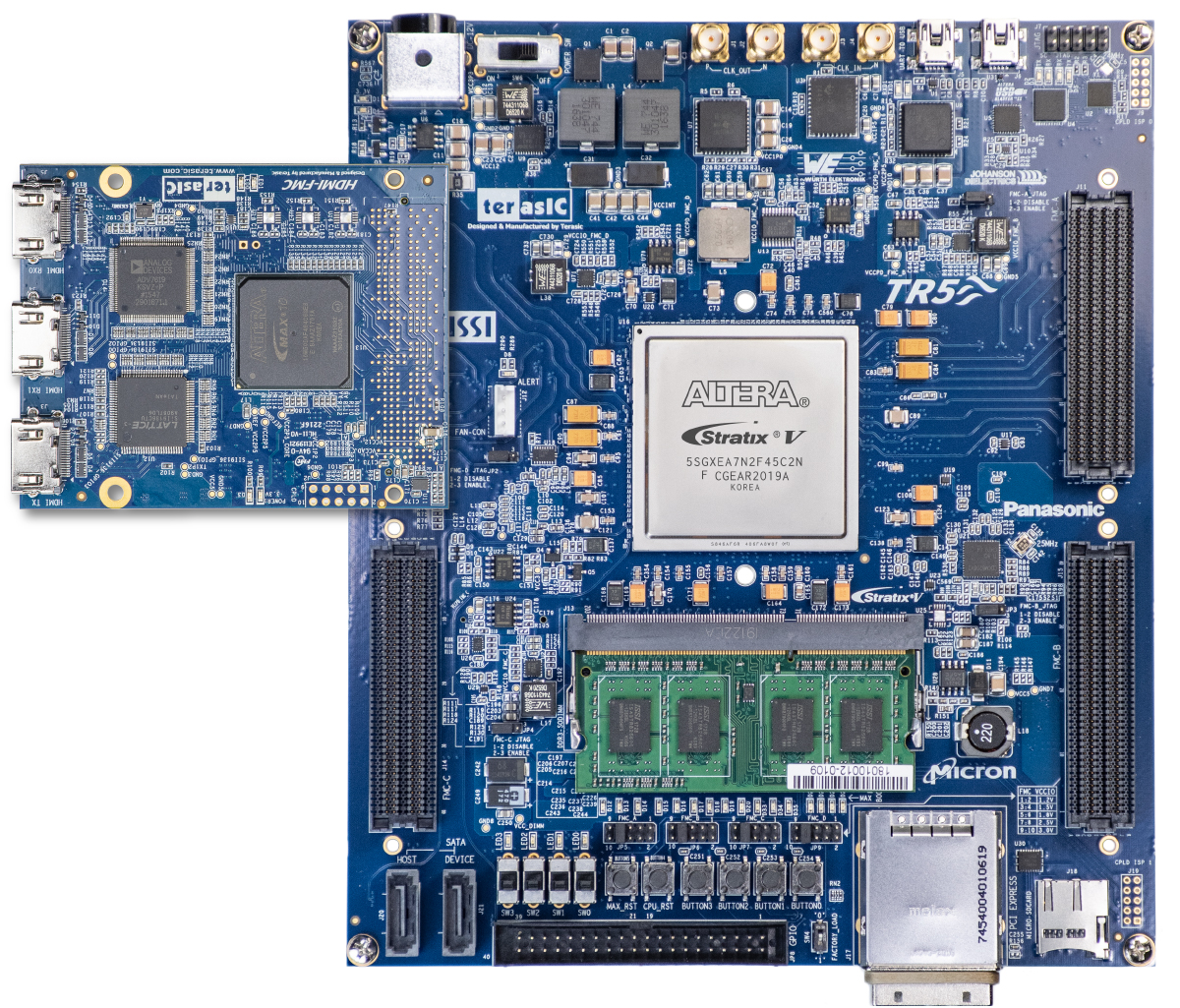

  • Connect the HDMI-FMC to TR5 board’s FMCA port

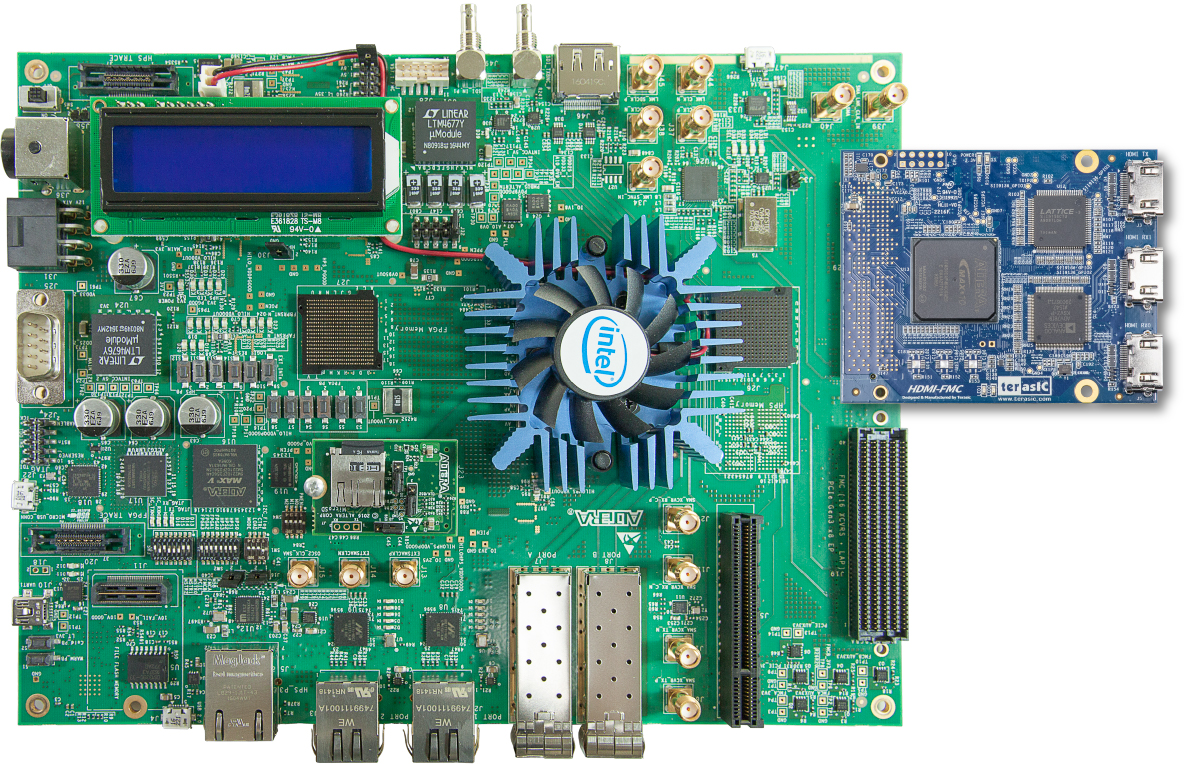

  • Connect the HDMI-FMC to A10SoC board’s FMCA port



Overview Layout
